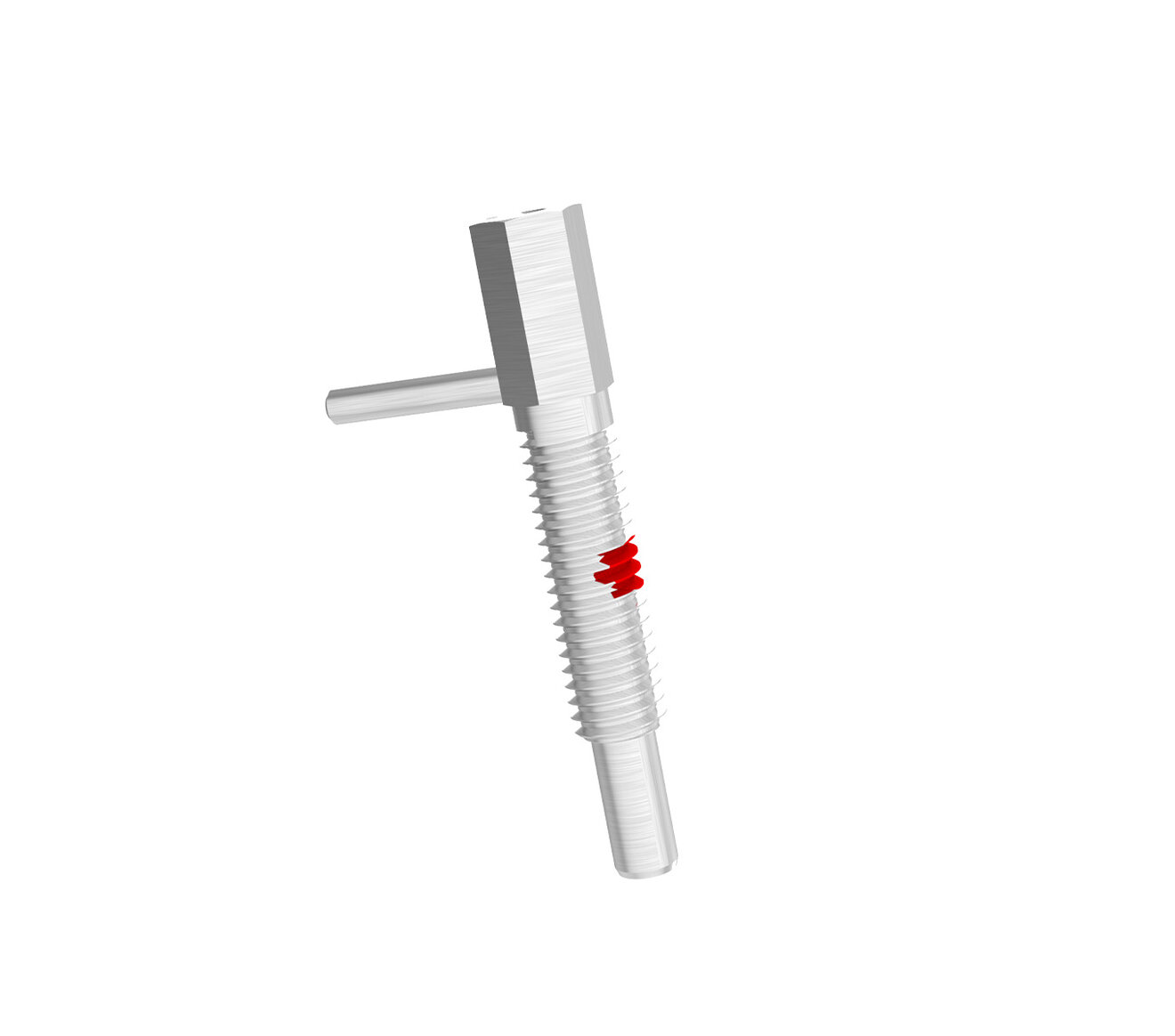

L-Handle Retractable Locking Plungers
Jergens L-Handle Retractable Locking Plungers are designed for easy removal and insertion.
Features, Benefits, & Product Specifications:
-
Hand retractable for easy removal and insertion
-
Turn the handle to unlock and extend the plunger
-
Slight taper on the end of the plunger for easy alignment
-
Locking element standard on all sizes
-
Special materials and sizes available upon requests
-
Available in patch-style locking element only
Material Specifications:
-
Body Material: Steel or Stainless Steel
-
Nose Material: Steel, Stainless Steel, or Delrin
L-Handle Retractable Locking Plungers
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Body Material | Nose Material | Initial Force (lbs) | Final Force (lbs) | A | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | J (In) | Net Weight 10 Pieces (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27436 |
|
Inch | Steel | Steel | 0.50 | 2.50 | 1/4-20 | 0.156 | 3/8 | 5/8 | 1 1/4 | 1/4 | 5/8 | 3/32 | 1/2 | 0.15 |
| 27437 |
|
Inch | Steel | Steel | 0.75 | 3.75 | 3/8-16 | 0.250 | 9/16 | 1 1/16 | 2 | 3/8 | 15/16 | 9/64 | 11/16 | 0.53 |
| 27438 |
|
Inch | Steel | Steel | 1.0 | 5.0 | 1/2-13 | 0.312 | 3/4 | 1 1/8 | 2 1/8 | 1/2 | 1 1/4 | 3/16 | 3/4 | 1.03 |
| 27439 |
|
Inch | Steel | Steel | 1.0 | 5.0 | 5/8-11 | 0.375 | 1 | 1 3/4 | 3 | 5/8 | 1 5/16 | 3/16 | 1 1/16 | 2.23 |
| 27575 | Inch | Steel | Delrin | 0.50 | 2.5 | 1/4-20 | 0.156 | 3/8 | 5/8 | 1-1/4 | 1/4 | 5/8 | 3/32 | 1/2 | 0.15 | |
| 27576 | Inch | Steel | Delrin | 0.75 | 3.75 | 3/8-16 | 0.250 | 9/16 | 1-1/16 | 2 | 3/8 | 15/16 | 9/64 | 11/16 | 0.53 | |
| 27577 | Inch | Steel | Delrin | 1.0 | 5.0 | 1/2-13 | 0.312 | 3/4 | 1-1/8 | 2-1/8 | 1/2 | 1-1/4 | 3/16 | 3/4 | 1.03 | |
| 27578 | Inch | Steel | Delrin | 1.0 | 5.0 | 5/8-11 | 0.375 | 1 | 1-3/4 | 3 | 5/8 | 1-5/16 | 3/16 | 1-1/16 | 2.23 | |
| 27579 | Inch | Stainless Steel | Delrin | 0.50 | 2.5 | 1/4-20 | 0.156 | 3/8 | 5/8 | 1-1/4 | 1/4 | 5/8 | 3/32 | 1/2 | 0.15 | |
| 27580 | Inch | Stainless Steel | Delrin | 0.75 | 3.75 | 3/8-16 | 0.250 | 9/16 | 1-1/16 | 2 | 3/8 | 15/16 | 9/64 | 11/16 | 0.53 | |
| 27581 | Inch | Stainless Steel | Delrin | 1.0 | 5.0 | 1/2-13 | 0.312 | 3/4 | 1-1/8 | 2-1/8 | 1/2 | 1-1/4 | 3/16 | 3/4 | 1.03 | |
| 27582 | Inch | Stainless Steel | Delrin | 1.0 | 5.0 | 5/8-11 | 0.375 | 1 | 1-3/4 | 3 | 5/8 | 1-5/16 | 3/16 | 1-1/16 | 2.23 | |
| 27836 |
|
Inch | Stainless Steel | Stainless Steel | 0.50 | 2.50 | 1/4-20 | 0.156 | 3/8 | 5/8 | 1 1/4 | 1/4 | 5/8 | 3/32 | 1/2 | 0.15 |
| 27837 |
|
Inch | Stainless Steel | Stainless Steel | 0.75 | 3.75 | 3/8-16 | 0.250 | 9/16 | 1 1/16 | 2 | 3/8 | 15/16 | 9/64 | 11/16 | 0.53 |
| 27838 |
|
Inch | Stainless Steel | Stainless Steel | 1.0 | 5.0 | 1/2-13 | 0.312 | 3/4 | 1 1/8 | 2 1/8 | 1/2 | 1 1/4 | 3/16 | 3/4 | 1.03 |
| 27839 |
|
Inch | Stainless Steel | Stainless Steel | 1.0 | 5.0 | 5/8-11 | 0.375 | 1 | 1 3/4 | 3 | 5/8 | 1 5/16 | 3/16 | 1 1/16 | 2.23 |
