Kwik-Lok® Ring Handle Marine Hitch Pin

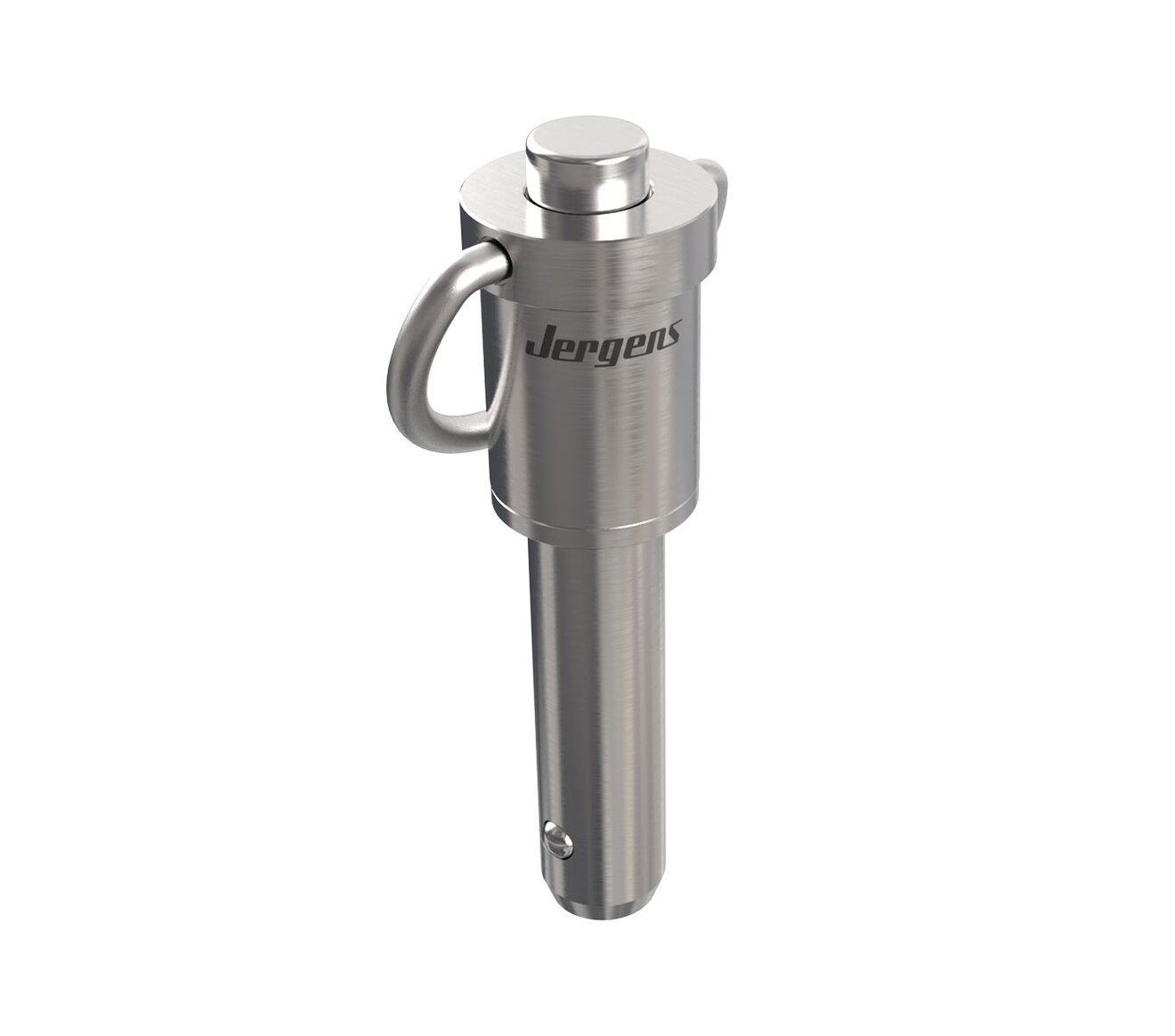

Jergens Kwik-Lok® Marine Hitch Pins are most corrosive resistant pins for the most harsh, marine environments. Kwik-Lok® Ring Handle Marine Hitch Pins are designed for applications which require small clearance area around the pin. Their stainless steel handles withstand tough environmental conditions.
Materials:
  • Handle, Button, Spring, & Balls: 302 Stainless Steel
  • Body & Spindle: Heat Treated 17-4 PH Stainless Steel
Note(s):
  • Ring allows for easy attachment of optional lanyard.
  • May be ordered with (4) locking balls for additional locking element tensile strength.
  • Special materials, grip length, and longer “C” dimensions upon request.

Documents

Kwik-Lok® Ring Handle Marine Hitch Pin

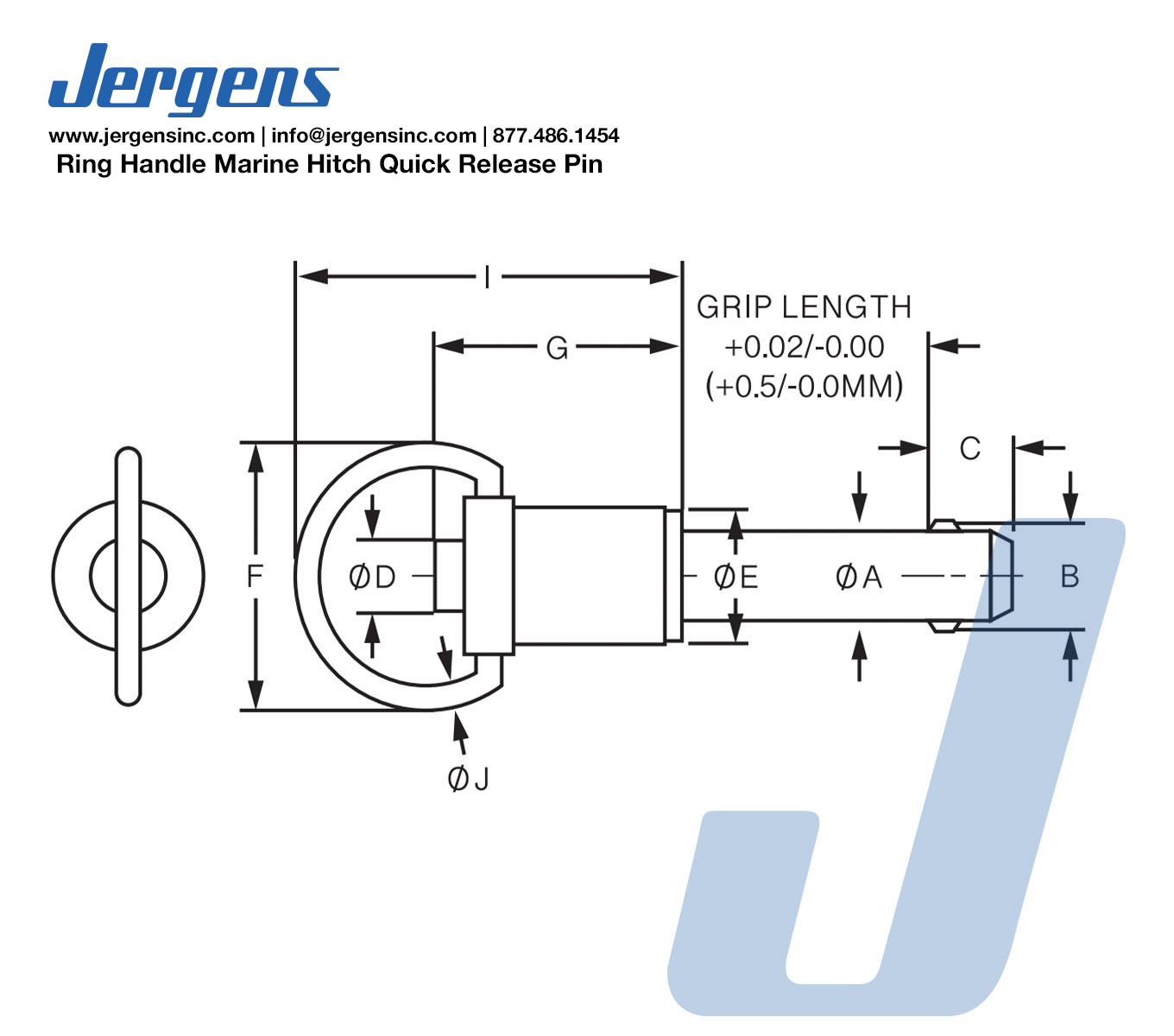

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Pin Diameter Grip Length B ± 0.005 (In) C +0.00/-0.04 (In) D MIN (In) D MAX (In) E MIN (In) E MAX (In) F MIN (In) G MIN (In) G MAX (In) I MAX (In) J MIN (In)
880200 Inch 3/16 In 0.5 In 0.220 0.260 0.250 0.310 0.310 0.530 1.060 0.730 1.490 1.450 0.080
880201 Inch 3/16 In 0.75 In 0.220 0.260 0.250 0.310 0.310 0.530 1.060 0.730 1.490 1.450 0.080
880202 Inch 3/16 In 1 In 0.220 0.260 0.250 0.310 0.310 0.530 1.060 0.730 1.490 1.450 0.080
880203 Inch 3/16 In 1.25 In 0.220 0.260 0.250 0.310 0.310 0.530 1.060 0.730 1.490 1.450 0.080
880204 Inch 3/16 In 1.5 In 0.220 0.260 0.250 0.310 0.310 0.530 1.060 0.730 1.490 1.450 0.080
880205 Inch 3/16 In 1.75 In 0.220 0.260 0.250 0.310 0.310 0.530 1.060 0.730 1.490 1.450 0.080
880206 Inch 3/16 In 2 In 0.220 0.260 0.250 0.310 0.310 0.530 1.060 0.730 1.490 1.450 0.080
880208 Inch 3/16 In 2.5 In 0.220 0.260 0.250 0.310 0.310 0.530 1.060 0.730 1.490 1.450 0.080
880209 Inch 3/16 In 3 In 0.220 0.260 0.250 0.310 0.310 0.530 1.060 0.730 1.490 1.450 0.080
880216 Inch 1/4 In 0.5 In 0.289 0.290 0.250 0.310 0.310 0.530 1.060 0.780 1.490 1.500 0.080
880217 Inch 1/4 In 0.75 In 0.289 0.290 0.250 0.310 0.310 0.530 1.060 0.780 1.490 1.500 0.080
880218 Inch 1/4 In 1 In 0.289 0.290 0.250 0.310 0.310 0.530 1.060 0.780 1.490 1.500 0.080
880219 Inch 1/4 In 1.25 In 0.289 0.290 0.250 0.310 0.310 0.530 1.060 0.780 1.490 1.500 0.080
880220 Inch 1/4 In 1.5 In 0.289 0.290 0.250 0.310 0.310 0.530 1.060 0.780 1.490 1.500 0.080
880221 Inch 1/4 In 1.75 In 0.289 0.290 0.250 0.310 0.310 0.530 1.060 0.780 1.490 1.500 0.080
880222 Inch 1/4 In 2 In 0.289 0.290 0.250 0.310 0.310 0.530 1.060 0.780 1.490 1.500 0.080
880224 Inch 1/4 In 2.5 In 0.289 0.290 0.250 0.310 0.310 0.530 1.060 0.780 1.490 1.500 0.080
880225 Inch 1/4 In 3 In 0.289 0.290 0.250 0.310 0.310 0.530 1.060 0.780 1.490 1.500 0.080
880227 Inch 1/4 In 4 In 0.289 0.290 0.250 0.310 0.310 0.530 1.060 0.780 1.490 1.500 0.080
880232 Inch 5/16 In 0.5 In 0.375 0.330 0.250 0.310 0.410 0.590 1.060 0.830 1.490 1.650 0.080
880233 Inch 5/16 In 0.75 In 0.375 0.330 0.250 0.310 0.410 0.590 1.060 0.830 1.490 1.650 0.080
880234 Inch 5/16 In 1 In 0.375 0.330 0.250 0.310 0.410 0.590 1.060 0.830 1.490 1.650 0.080
880235 Inch 5/16 In 1.25 In 0.375 0.330 0.250 0.310 0.410 0.590 1.060 0.830 1.490 1.650 0.080
880236 Inch 5/16 In 1.5 In 0.375 0.330 0.250 0.310 0.410 0.590 1.060 0.830 1.490 1.650 0.080
880237 Inch 5/16 In 1.75 In 0.375 0.330 0.250 0.310 0.410 0.590 1.060 0.830 1.490 1.650 0.080
880238 Inch 5/16 In 2 In 0.375 0.330 0.250 0.310 0.410 0.590 1.060 0.830 1.490 1.650 0.080
880240 Inch 5/16 In 2.5 In 0.375 0.330 0.250 0.310 0.410 0.590 1.060 0.830 1.490 1.650 0.080
880241 Inch 5/16 In 3 In 0.375 0.330 0.250 0.310 0.410 0.590 1.060 0.830 1.490 1.650 0.080
880243 Inch 5/16 In 4 In 0.375 0.330 0.250 0.310 0.410 0.590 1.060 0.830 1.490 1.650 0.080
880248 Inch 3/8 In 0.5 In 0.440 0.365 0.300 0.390 0.450 0.650 1.060 0.940 1.490 1.650 0.080
880249 Inch 3/8 In 0.75 In 0.440 0.365 0.300 0.390 0.450 0.650 1.060 0.940 1.490 1.650 0.080
880250 Inch 3/8 In 1 In 0.440 0.365 0.300 0.390 0.450 0.650 1.060 0.940 1.490 1.650 0.080
880251 Inch 3/8 In 1.25 In 0.440 0.365 0.300 0.390 0.450 0.650 1.060 0.940 1.490 1.650 0.080
880252 Inch 3/8 In 1.5 In 0.440 0.365 0.300 0.390 0.450 0.650 1.060 0.940 1.490 1.650 0.080
880253 Inch 3/8 In 1.75 In 0.440 0.365 0.300 0.390 0.450 0.650 1.060 0.940 1.490 1.650 0.080
880254 Inch 3/8 In 2 In 0.440 0.365 0.300 0.390 0.450 0.650 1.060 0.940 1.490 1.650 0.080
880256 Inch 3/8 In 2.5 In 0.440 0.365 0.300 0.390 0.450 0.650 1.060 0.940 1.490 1.650 0.080
880257 Inch 3/8 In 3 In 0.440 0.365 0.300 0.390 0.450 0.650 1.060 0.940 1.490 1.650 0.080
880259 Inch 3/8 In 4 In 0.440 0.365 0.300 0.390 0.450 0.650 1.060 0.940 1.490 1.650 0.080
880261 Inch 3/8 In 5 In 0.440 0.365 0.300 0.390 0.450 0.650 1.060 0.940 1.490 1.650 0.080
880280 Inch 1/2 In 0.5 In 0.594 0.460 0.435 0.565 0.600 0.800 1.160 1.140 1.580 1.850 0.080
880281 Inch 1/2 In 0.75 In 0.594 0.460 0.435 0.565 0.600 0.800 1.160 1.140 1.580 1.850 0.080
880282 Inch 1/2 In 1 In 0.594 0.460 0.435 0.565 0.600 0.800 1.160 1.140 1.580 1.850 0.080
880283 Inch 1/2 In 1.25 In 0.594 0.460 0.435 0.565 0.600 0.800 1.160 1.140 1.580 1.850 0.080
880284 Inch 1/2 In 1.5 In 0.594 0.460 0.435 0.565 0.600 0.800 1.160 1.140 1.580 1.850 0.080
880285 Inch 1/2 In 1.75 In 0.594 0.460 0.435 0.565 0.600 0.800 1.160 1.140 1.580 1.850 0.080
880286 Inch 1/2 In 2 In 0.594 0.460 0.435 0.565 0.600 0.800 1.160 1.140 1.580 1.850 0.080
880288 Inch 1/2 In 2.5 In 0.594 0.460 0.435 0.565 0.600 0.800 1.160 1.140 1.580 1.850 0.080
880289 Inch 1/2 In 3 In 0.594 0.460 0.435 0.565 0.600 0.800 1.160 1.140 1.580 1.850 0.080
880291 Inch 1/2 In 4 In 0.594 0.460 0.435 0.565 0.600 0.800 1.160 1.140 1.580 1.850 0.080
880293 Inch 1/2 In 5 In 0.594 0.460 0.435 0.565 0.600 0.800 1.160 1.140 1.580 1.850 0.080
880312 Inch 5/8 In 0.5 In 0.750 0.580 0.450 0.580 0.750 0.905 1.240 1.400 1.840 2.250 0.120
880313 Inch 5/8 In 0.75 In 0.750 0.580 0.450 0.580 0.750 0.905 1.240 1.400 1.840 2.250 0.120
880314 Inch 5/8 In 1 In 0.750 0.580 0.450 0.580 0.750 0.905 1.240 1.400 1.840 2.250 0.120
880315 Inch 5/8 In 1.25 In 0.750 0.580 0.450 0.580 0.750 0.905 1.240 1.400 1.840 2.250 0.120
880316 Inch 5/8 In 1.5 In 0.750 0.580 0.450 0.580 0.750 0.905 1.240 1.400 1.840 2.250 0.120
880317 Inch 5/8 In 1.75 In 0.750 0.580 0.450 0.580 0.750 0.905 1.240 1.400 1.840 2.250 0.120
880318 Inch 5/8 In 2 In 0.750 0.580 0.450 0.580 0.750 0.905 1.240 1.400 1.840 2.250 0.120
880320 Inch 5/8 In 2.5 In 0.750 0.580 0.450 0.580 0.750 0.905 1.240 1.400 1.840 2.250 0.120
880321 Inch 5/8 In 3 In 0.750 0.580 0.450 0.580 0.750 0.905 1.240 1.400 1.840 2.250 0.120
880323 Inch 5/8 In 4 In 0.750 0.580 0.450 0.580 0.750 0.905 1.240 1.400 1.840 2.250 0.120
880325 Inch 5/8 In 5 In 0.750 0.580 0.450 0.580 0.750 0.905 1.240 1.400 1.840 2.250 0.120
880328 Inch 3/4 In 0.5 In 0.887 0.670 0.570 0.700 0.865 1.045 1.640 1.625 1.990 2.650 0.120
880329 Inch 3/4 In 0.75 In 0.887 0.670 0.570 0.700 0.865 1.045 1.640 1.625 1.990 2.650 0.120
880330 Inch 3/4 In 1 In 0.887 0.670 0.570 0.700 0.865 1.045 1.640 1.625 1.990 2.650 0.120
880331 Inch 3/4 In 1.25 In 0.887 0.670 0.570 0.700 0.865 1.045 1.640 1.625 1.990 2.650 0.120
880332 Inch 3/4 In 1.5 In 0.887 0.670 0.570 0.700 0.865 1.045 1.640 1.625 1.990 2.650 0.120
880333 Inch 3/4 In 1.75 In 0.887 0.670 0.570 0.700 0.865 1.045 1.640 1.625 1.990 2.650 0.120
880334 Inch 3/4 In 2 In 0.887 0.670 0.570 0.700 0.865 1.045 1.640 1.625 1.990 2.650 0.120
880336 Inch 3/4 In 2.5 In 0.887 0.670 0.570 0.700 0.865 1.045 1.640 1.625 1.990 2.650 0.120
880337 Inch 3/4 In 3 In 0.887 0.670 0.570 0.700 0.865 1.045 1.640 1.625 1.990 2.650 0.120
880339 Inch 3/4 In 4 In 0.887 0.670 0.570 0.700 0.865 1.045 1.640 1.625 1.990 2.650 0.120
880341 Inch 3/4 In 5 In 0.887 0.670 0.570 0.700 0.865 1.045 1.640 1.625 1.990 2.650 0.120
