Knob Clamp Assemblies

Jergens Knob Clamp Assemblies are designed for light-duty clamping. The hand knob eliminates wrenching for faster work changes. A spherical washer allows for clamping irregular surfaces.
Features, Benefits, & Product Specifications:
  • Interchangeable pad option
  • Steel, Brass, and Plastic Strap Pads are available (see Related Products below)
  • Pads machinable to the part configuration
Note(s):
  • "G" dimension represents an optimum dimension.
  • Part No. 13501 does not include a finger handle (see Related Products below).


Documents

Knob Clamp Assemblies

Knob Clamp Assemblies with Radius Nose Strap
  • Knob Clamp Assemblies with Radius Nose Strap

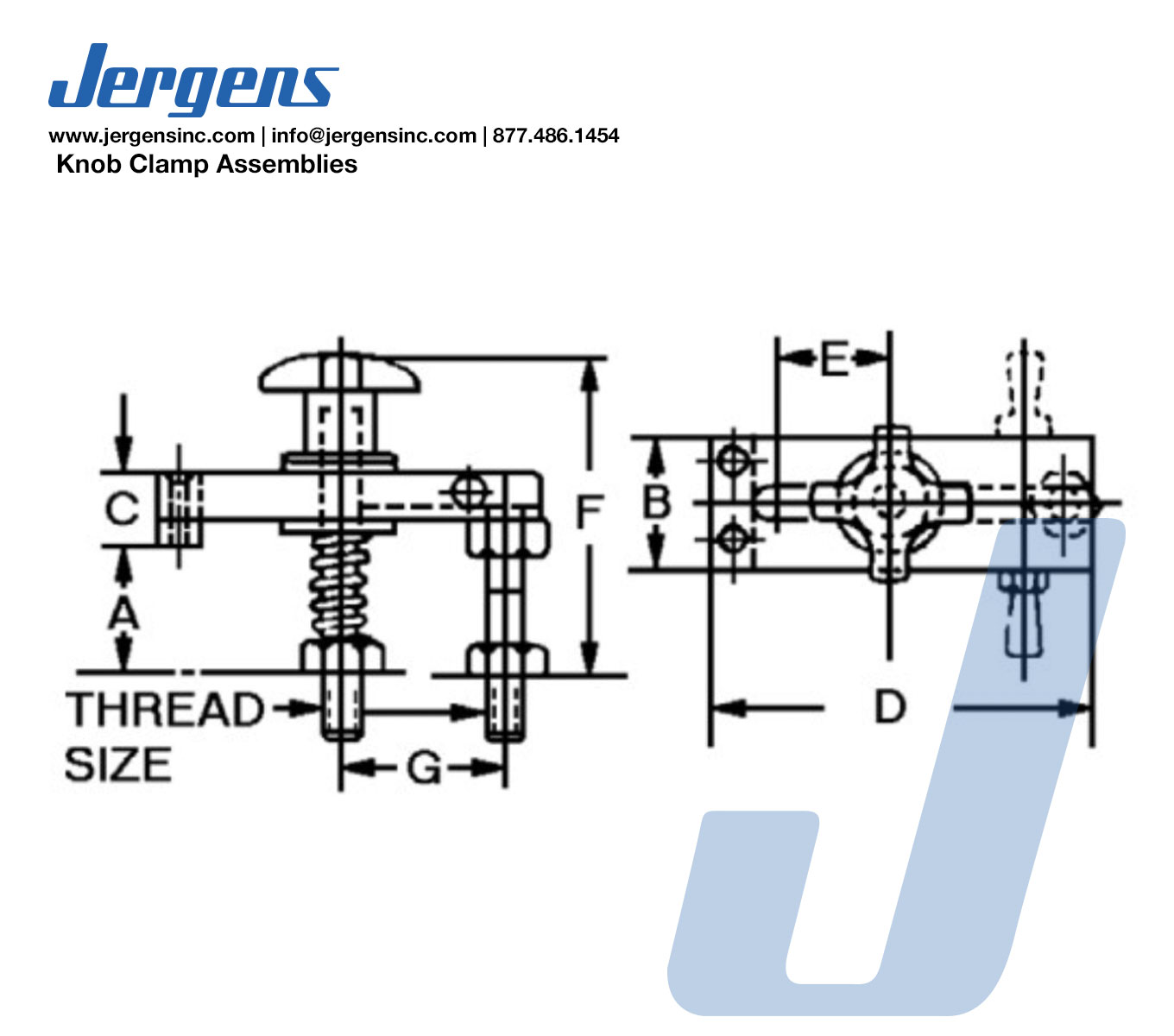

  • Line Art Knob Clamp Assemblies

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit A (In) B (In) C (In) D (in) E (in) F (in) G (in) Thread Size Weight (lbs)
13501 icon_cad Inch 3/4 5/8 1/2 2 5/8 2 5/16 1 1/4-20 0.35
13503 icon_cad Inch 1 1/2 1 1/4 7/8 3 1/2 1 1/8 3 19/32 1 7/16 3/8-16 1.22
