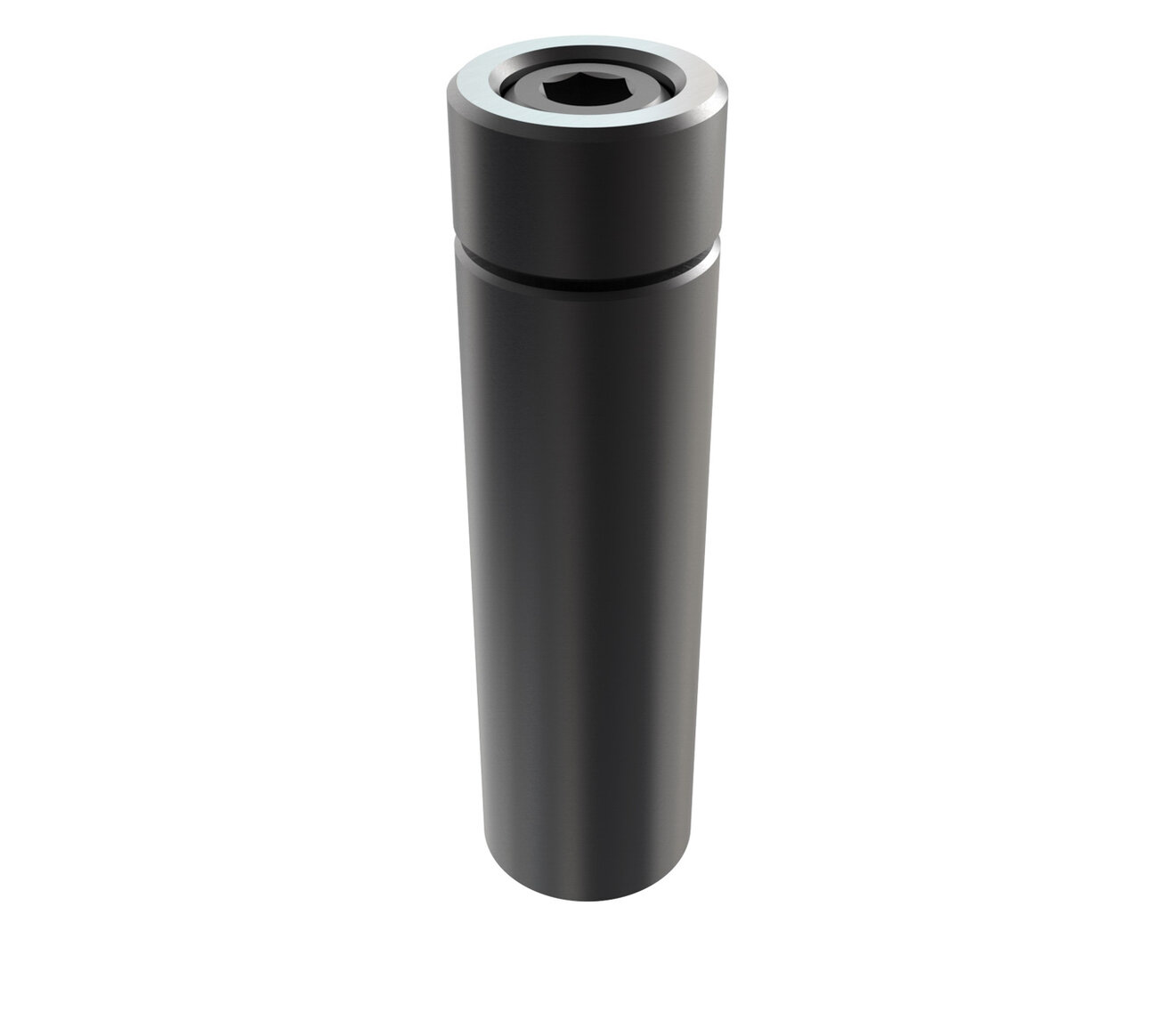

Jig Legs
Jergens Jig Legs are ideal for cutting costs in simple jig plates. They assure lasting accuracy in your jig plate with a larger bearing surface at the top of the leg. The large-diameter rest button provides a more bearing surface for spot-facing or counterboring on the bottom side. Both legs and rest buttons are hardened for long life.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened 75-77 R30N
-
Cap screw included
Documents

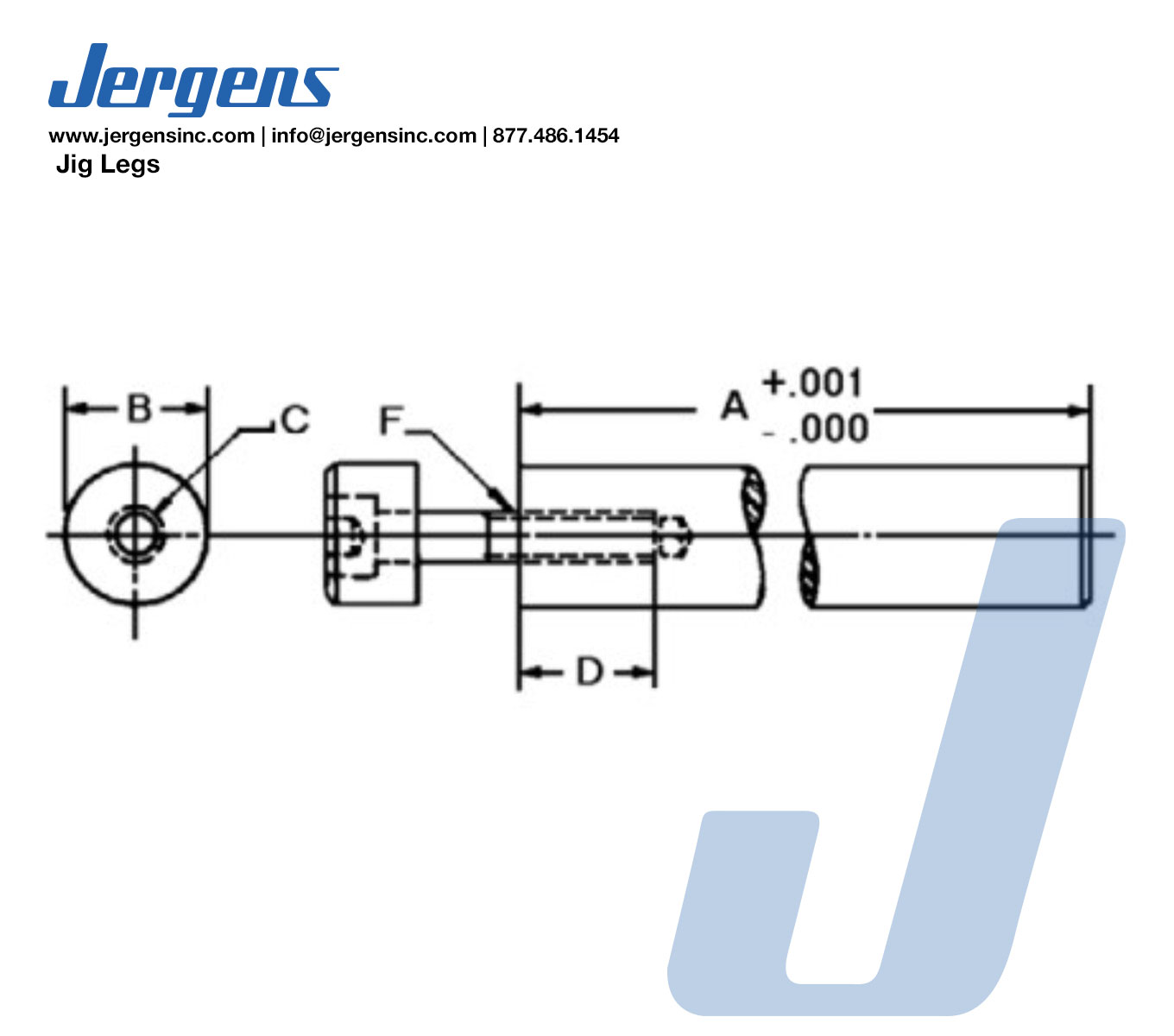

JigLegs_LineArt
Jig Legs
| Part Number | CAD | Unit | A (In) | B (In) | C | D (in) | Cap Screw F | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|
| 25301 |
|
Inch | 1 | 5/8 | 1/4-20 | 5/8 | 1/4-20 x 1 | 0.13 | |
| 25302 |
|
Inch | 2 | 5/8 | 1/4-20 | 5/8 | 1/4-20 x 1 | 0.20 | |
| 25303 |
|
Inch | 3 | 5/8 | 1/4-20 | 7/8 | 1/4-20 x 1 | 0.28 | |
| 25304 |
|
Inch | 4 | 7/8 | 3/8-16 | 7/8 | 3/8-16 x 1 3/4 | 0.81 | |
| 25305 |
|
Inch | 5 | 7/8 | 3/8-16 | 7/8 | 3/8-16 x 1 3/4 | 1.00 | |
| 25306 |
|
Inch | 6 | 7/8 | 3/8-16 | 7/8 | 3/8-16 x 1 3/4 | 1.10 |
