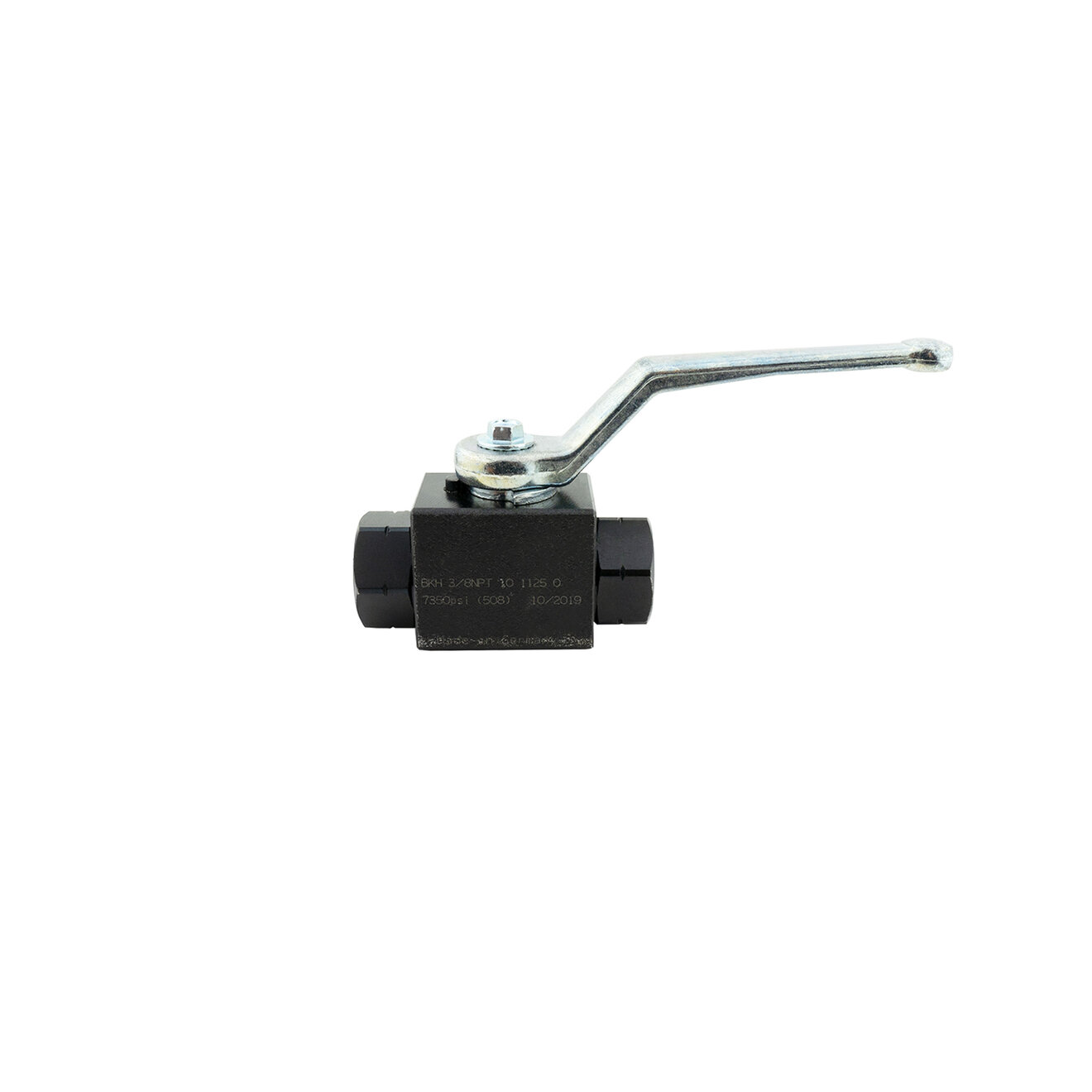

Hydraulic 2-Way Circuit Controls
Jergens Hydraulic 2-Way Circuit Controls are in-line ball valves. They are used as a shut-off valve in simple circuits.
Documents
Hydraulic 2-Way Circuit Controls
Select a part number for CAD drawings, price and stock availability.

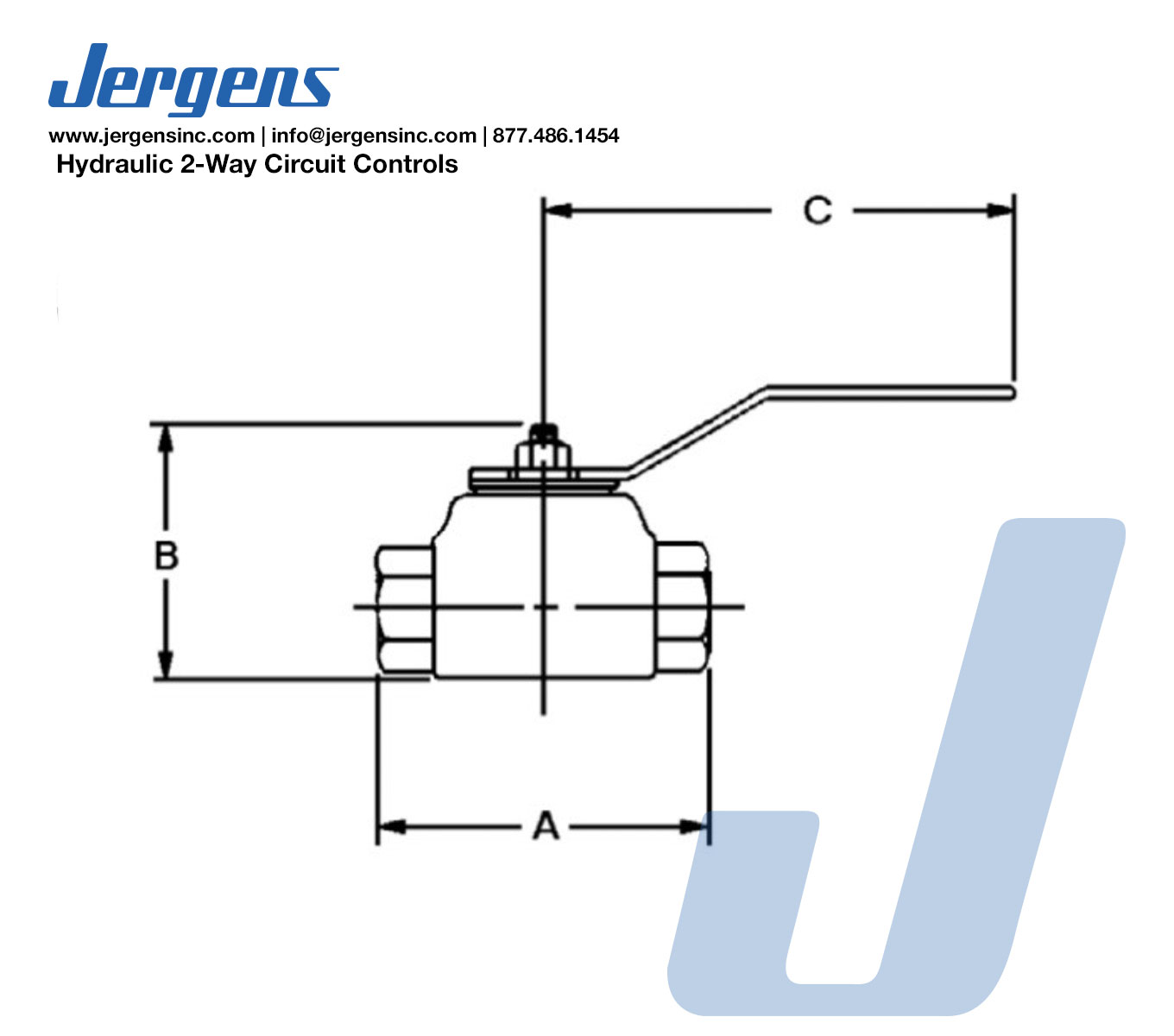

| Part Number | CAD | Unit | Port Size | Pressure Rating | A (In) | B (In) | C (In) |
|---|---|---|---|---|---|---|---|
| 61610 | Inch | 1/4 NPT | 3000 psi | 2 11/16 | 2 5/8 | 5 1/4 | |
| 61639 | Inch | 3/8 NPT | 5000 psi | 3 | 2 | 4 1/4 |
Documents and Videos
Operating Manual- Operating Manual - 81600 ONLY
