Hook Clamp Assemblies
Jergens Hook Clamp Assemblies feature moderate to heavy-duty holding power in close quarters. When released, the hook clamp swings quickly and easily out of the way for fast maneuvering of work. Their spring-loaded shank allows for quick clamp release.

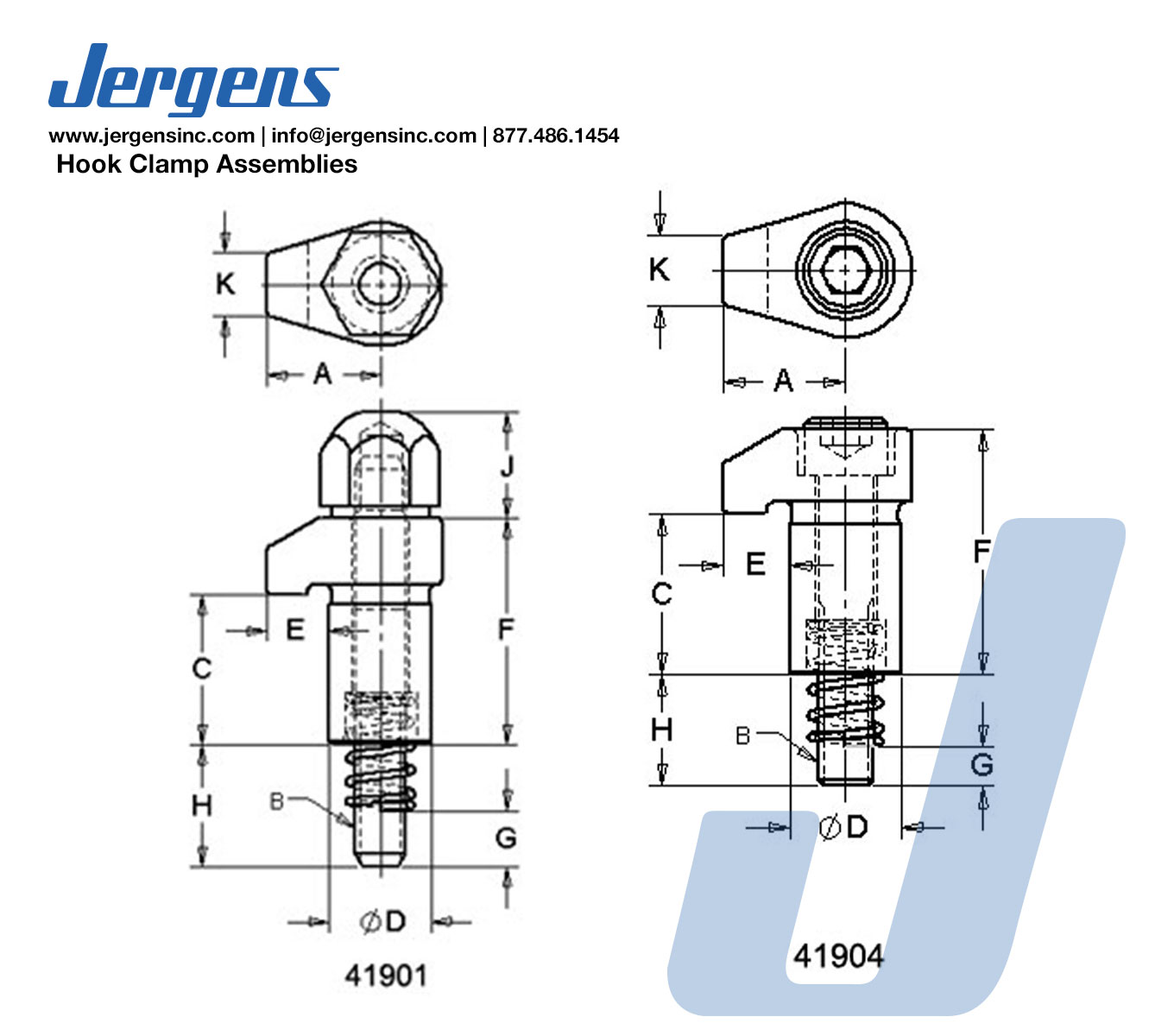

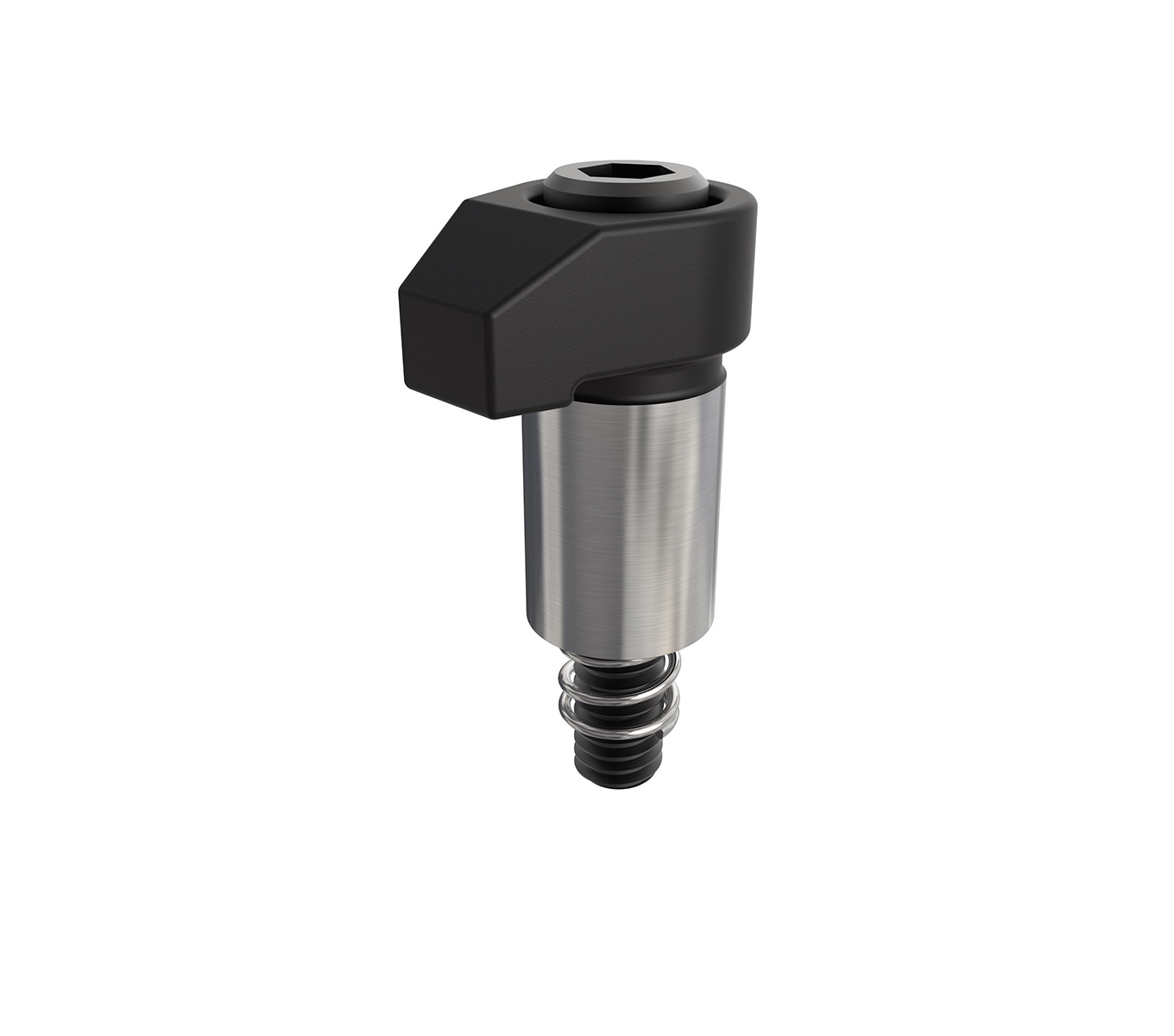

Alternative to the above assembly, we also offer Hook Clamp Assemblies that feature a flush-mounted socket screw instead of an acorn nut. They are designed for limited space applications and moderate holding power.
Features, Benefits, & Product Specifications:
-
Body Material: 4140 Cast Steel
-
Finish: Black Oxide
-
Heat Treat: RC 42-46
-
Stud/Screw: Furnished
Hook Clamp Assembly_LineArt
Hook Clamp Assemblies
| Part Number | CAD | Unit | A (In) | Stud Size B | Cap Screw B | C (In) | D (in) | E (in) | F (in) | G (in) | H (in) | J (in) | K (in) | Maximum Torque (ft/lbs) | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41901 |
|
Inch | 11/16 | 5/16-18 X 2 1/2 | - | 7/8 | 0.624/0.625 | 3/8 | 1 3/8 | 5/16 | 3/4 | 5/8 | 3/8 | 25 | 0.21 | |
| 41902 |
|
Inch | 1 | 1/2-13 x 4 | - | 1 5/8 | 0.874/0.875 | 9/16 | 2 1/4 | 5/8 | 1 1/8 | 15/16 | 5/8 | 100 | 0.64 | |
| 41904 |
|
Inch | 11/16 | - | 5/16-18 x 1 3/4 | 7/8 | 0.624/0.625 | 3/8 | 1 3/8 | 1/4 | 5/8 | - | 3/8 | 25 | 0.14 | |
| 41905 |
|
Inch | 1 | - | 3/8-16 x 3 | 1 5/8 | 0.874/0.875 | 9/16 | 2 1/4 | 5/8 | 1 1/16 | - | 5/8 | 40 | 0.44 | |
| 41906 |
|
Inch | 1 7/16 | - | 5/8-11 x 3 1/2 | 1 13/16 | 1.124/1.125 | 7/8 | 2 3/4 | 13/16 | 1 9/16 | - | 3/4 | 180 | 1.00 | |
| 41907 |
|
Inch | 1 | - | 1/2-13 x 3 | 1 5/8 | 0.874/0.875 | 9/16 | 2 1/4 | 5/8 | 1 1/8 | - | 5/8 | 100 | 0.47 | |
| 41908 |
|
Inch | 1 | 3/8-16 x 4 | - | 1 5/8 | 0.874/0.875 | 9/16 | 2 1/4 | 3/4 | 1 1/4 | 3/4 | 5/8 | 40 | 0.59 |
