Hold Down Clips
Jergens Hold Down Clips prevent hoist ring movement when the hoist ring is not in use, provide an additional safety feature when used around machine tools, and give a neat finished appearance. (2) or more Jergens Hold Down Clips should be used.
-
Material: Spring, Steel
-
Finish: Cadmium or Zinc
Note: Part No. 47331 only has one bolt hole.
Hold Down Clips

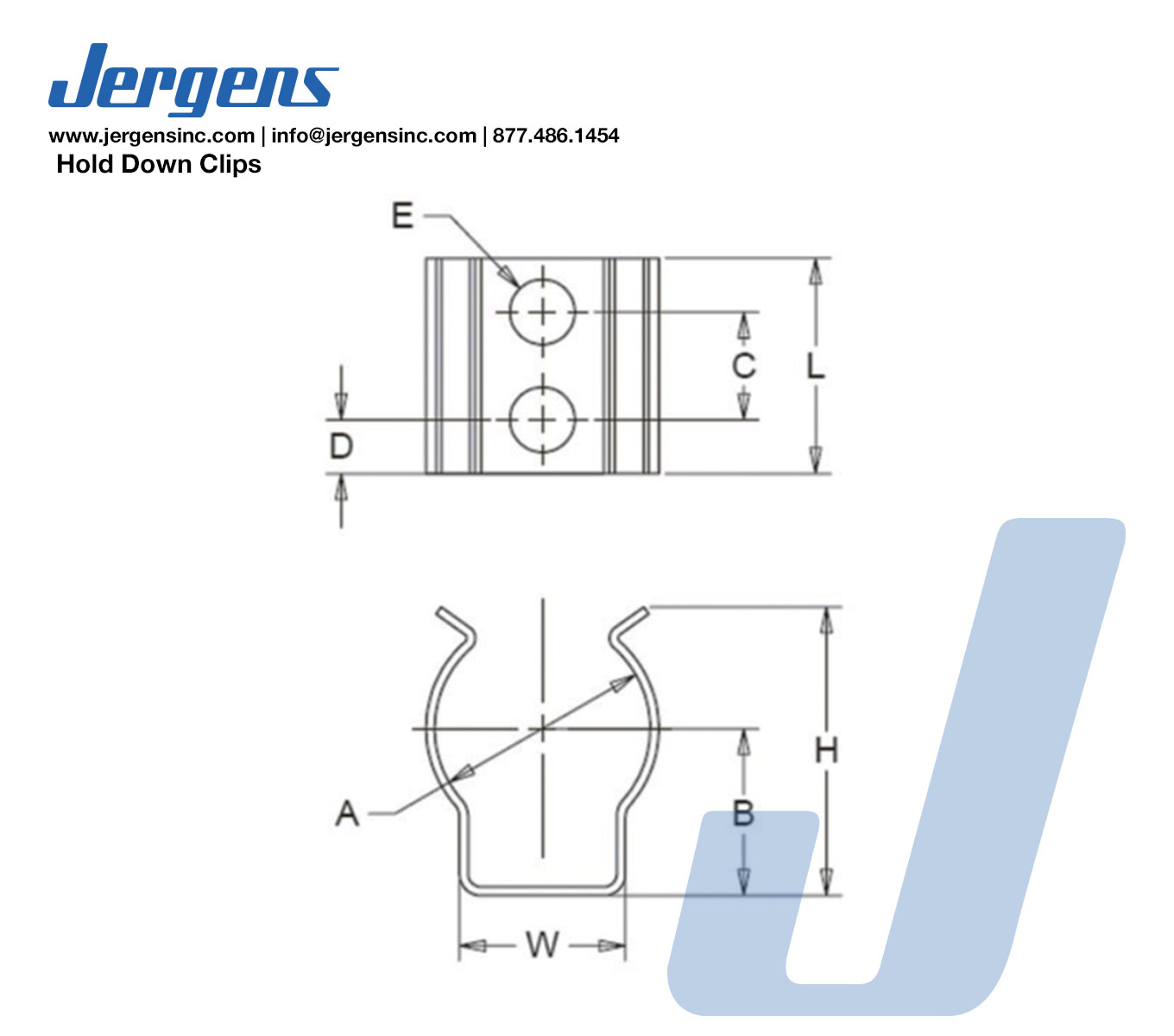

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Ring Diameter | B (In) | C (In) | D (In) | E (In) | H (In) | W (In) | L (In) |
|---|---|---|---|---|---|---|---|---|---|---|
| 47331 |
|
Inch | 3/8 | 0.330 | - | 0.25 | 0.125 | 0.575 | 0.320 | 0.500 |
| 47332 |
|
Inch | 1/2 | 0.388 | 0.250 | 0.125 | 0.151 | 0.712 | 0.385 | 0.500 |
| 47333 |
|
Inch | 5/8 | 0.450 | 0.250 | 0.125 | 0.151 | 0.832 | 0.385 | 0.500 |
| 47334 |
|
Inch | 3/4 | 0.513 | 0.312 | 0.156 | 0.151 | 1.000 | 0.385 | 0.625 |
| 47335 |
|
Inch | 1 | 0.683 | 0.312 | 0.188 | 0.188 | 1.133 | 0.510 | 0.687 |
| 47336 |
|
Inch | 1 1/4 | 0.750 | 0.625 | 0.187 | 0.162 | 1.370 | 1.330 | 1.000 |
| 47337 |
|
Inch | 1 3/8 | 0.880 | 0.312 | 0.188 | 0.188 | 1.439 | 0.510 | 0.688 |
| 47339 |
|
Inch | 1 3/4 | 1.070 | 1.070 | 0.188 | 0.130 | 1.830 | 0.780 | 0.688 |
