Heavy Duty Square Washers
Jergens Heavy Duty Square Washers incorporate spacing and distribute load when placed between a nut and bolt or screw. They will help prevent wear and distortion of installation surfaces over time.
Features, Benefits, & Product Specifications:
-
Material: 1018 Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened
Heavy Duty Square Washers
Select a part number for CAD drawings, price and stock availability.

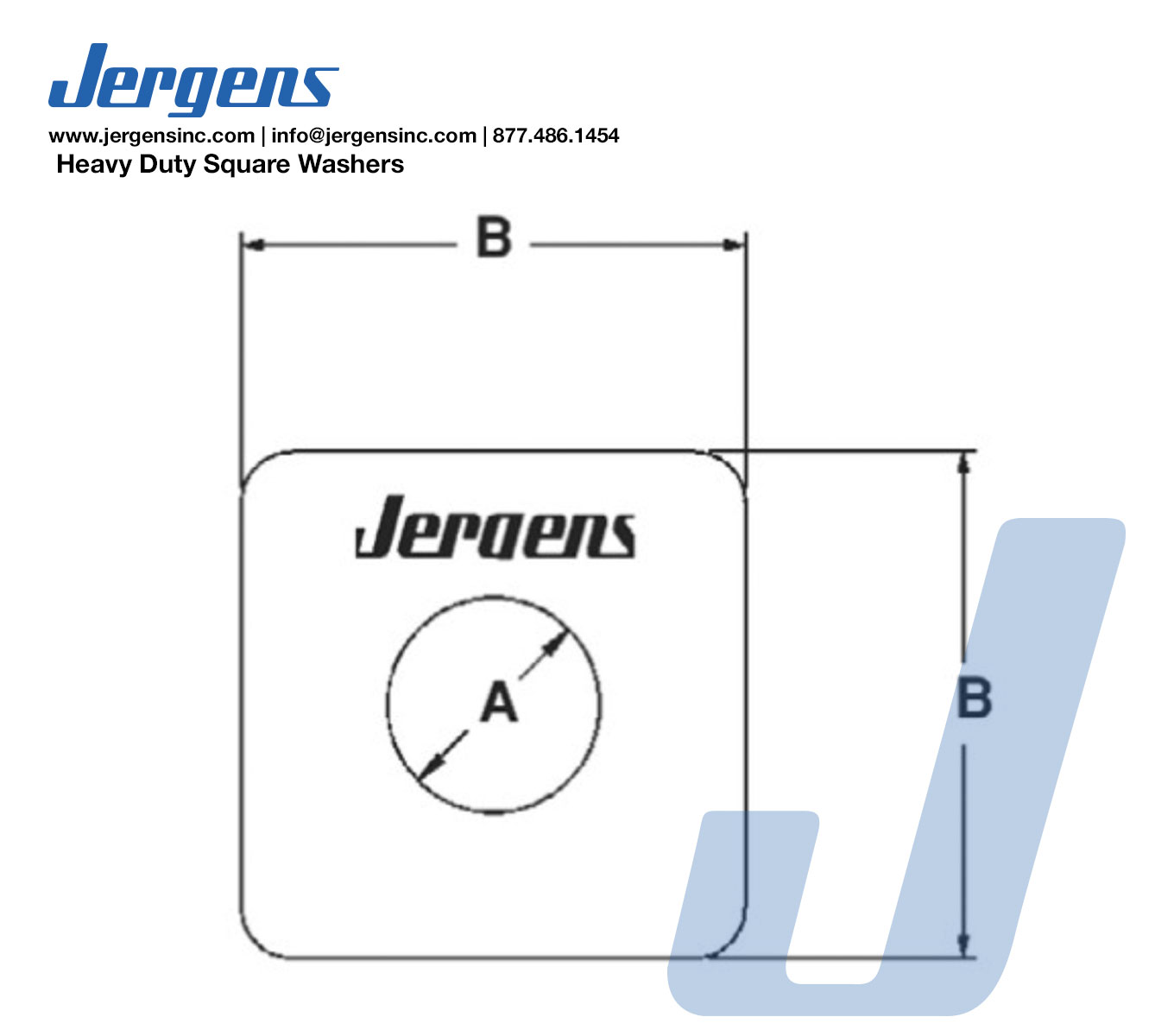

| Part Number | CAD | Unit | A +/-0.010 (In) | B +/-0.010 (In) | Bolt Size | Thickness (In) |
|---|---|---|---|---|---|---|
| 31920 |
|
Inch | 11/32 | 1 3/8 | 5/16 | 3/16 |
| 31921 |
|
Inch | 13/32 | 1 3/8 | 3/8 | 3/16 |
| 31922 |
|
Inch | 15/16 | 2 | 7/8 | 1/4 |
| 31923 |
|
Inch | 15/16 | 2 1/2 | 7/8 | 1/4 |
| 31924 |
|
Inch | 13/16 | 3 | 3/4 | 5/16 |
| 31926 |
|
Inch | 1 1/16 | 3 | 1 | 5/16 |
| 31927 |
|
Inch | 1 1/16 | 3 | 1 | 3/8 |
| 31928 |
|
Inch | 1 5/16 | 3 | 1 1/4 | 3/8 |
| 31929 |
|
Inch | 1 9/16 | 3 | 1 1/2 | 3/8 |
| 31932 |
|
Inch | 17/32 | 1 3/8 | 1/2 | 1/4 |
| 31933 |
|
Inch | 17/32 | 2 | 1/2 | 1/4 |
| 31934 |
|
Inch | 21/32 | 2 | 5/8 | 1/4 |
| 31935 |
|
Inch | 13/16 | 2 | 3/4 | 1/4 |
| 31936 |
|
Inch | 13/16 | 2 1/2 | 3/4 | 1/4 |
| 31937 |
|
Inch | 1 1/16 | 2 1/2 | 1 | 1/4 |
