Heavy Duty Industrial Keylocking Hybrid Threaded Inserts

Jergens Heavy Duty Industrial Keylocking Hybrid Inserts are unique products that allow you to create a metric thread utilizing inch drills and taps. The insert O.D. is inch sized, the I.D. is metric.

Features, Benefits, & Product Specifications:

Insert Materials & Finishes:
- Carbon Steel (C1215 or Equivalent), Parkerized
- 303 Stainless Steel, Passivated
Key Material: 302 Stainless Steel
Tolerances: ±0.010 for Inch, ±0.25mm for Metric
Inserts with internal thread size of 5/16-18 or larger are furnished with (4) locking keys
Special materials, sizes, and Mil-Spec available upon request
RoHS compliant

Documents

Heavy Duty Industrial Keylocking Hybrid Threaded Inserts

Select a part number for CAD drawings, price and stock availability.

Inch Metric

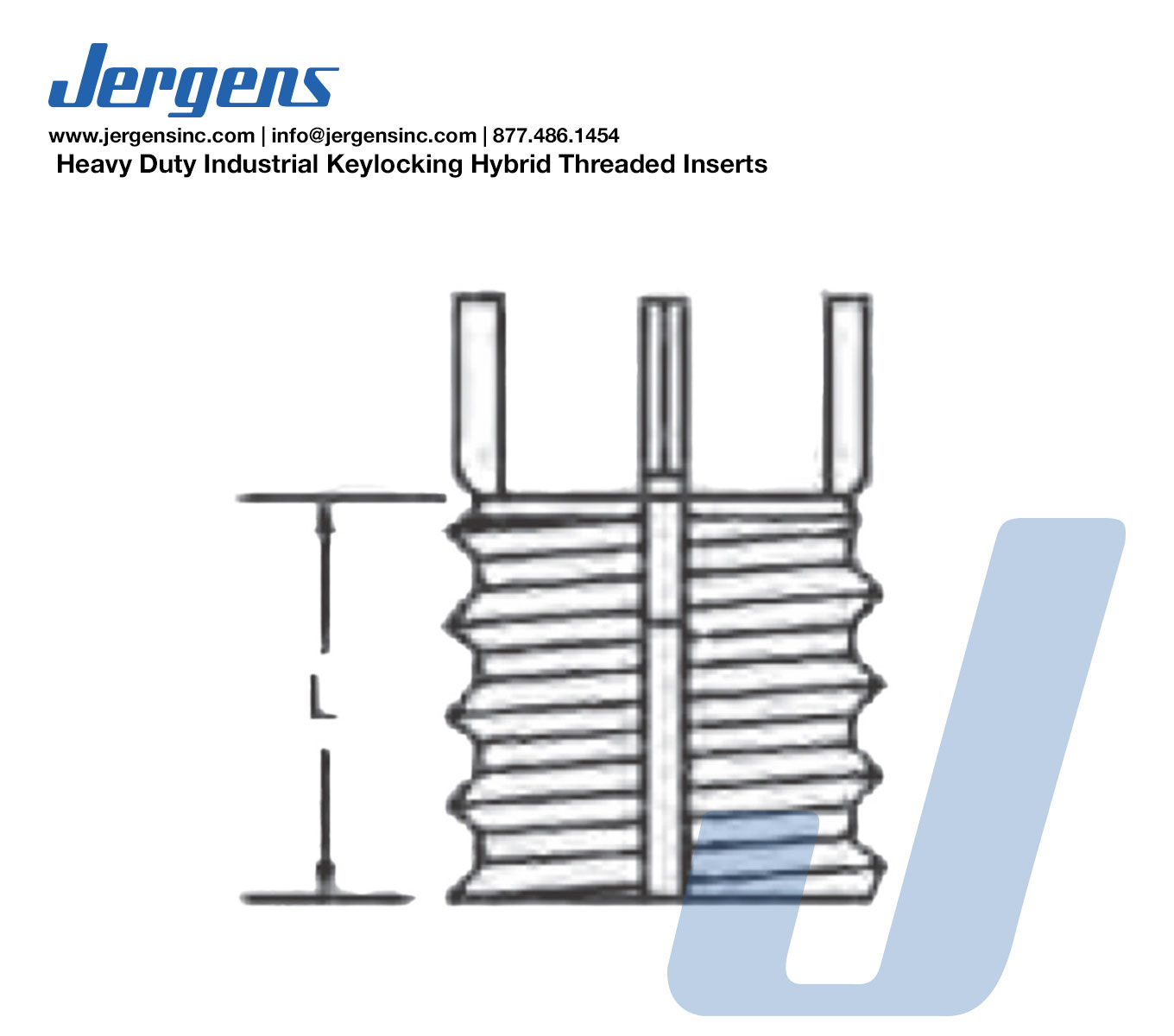

Part Number	Unit	Insert Internal Thread Class 6H	Insert External Thread Class 2A	Length (L)	Installation Tool Part Number	Tap Drill Size	C sink Diameter +0.010/-0.00	Thread Tap Size Class 2b	Thread Tap Minimum Depth	Removal Drill Size	Removal Drill Depth
26243	Inch	M6 x 1.0	3/8-16	0.31	24843	Q	0.38	3/8-16	0.37	9/32	1/8
26244	Inch	M8 x 1.25	1/2-13	0.43	24844	29/64	0.51	1/2-13	0.50	13/32	3/16
26245	Inch	M10 x 1.5	5/8-11	0.50	24845	37/64	0.63	5/8-11	0.56	17/32	3/16
26247	Inch	M12 x 1.75	3/4-16	0.62	24847	45/64	0.76	3/4-16	0.68	21/32	3/16
26248	Inch	M14 x 2.0	7/8-14	0.81	24848	53/64	0.88	7/8-14	0.94	25/32	5/16
26249	Inch	M16 x 2.0	1-12	0.87	24849	15/16	1.02	1-12	1.00	27/32	5/16
