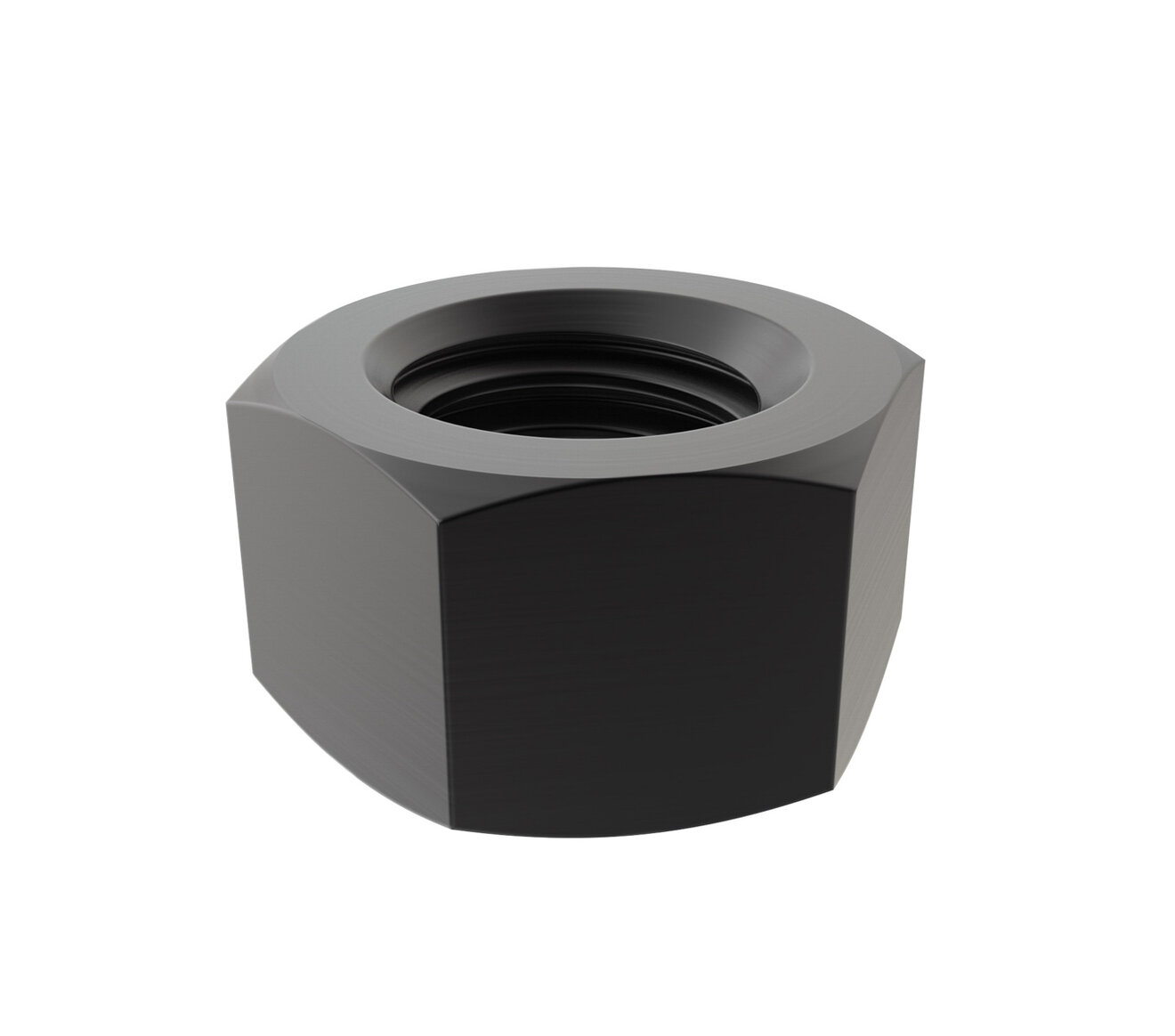

Heavy Duty Hex Nuts
Jergens Heavy Duty Hex Nuts are used with bolts, screws, and other externally threaded components. In conjunction with other fasteners, hex nuts are used to connect components to prevent tension and movement. Their hexagonal shape allows for easy wrenching.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Grade 8, Hardness HRC of 28-38
Heavy Duty Hex Nuts
Select a part number for CAD drawings, price and stock availability.

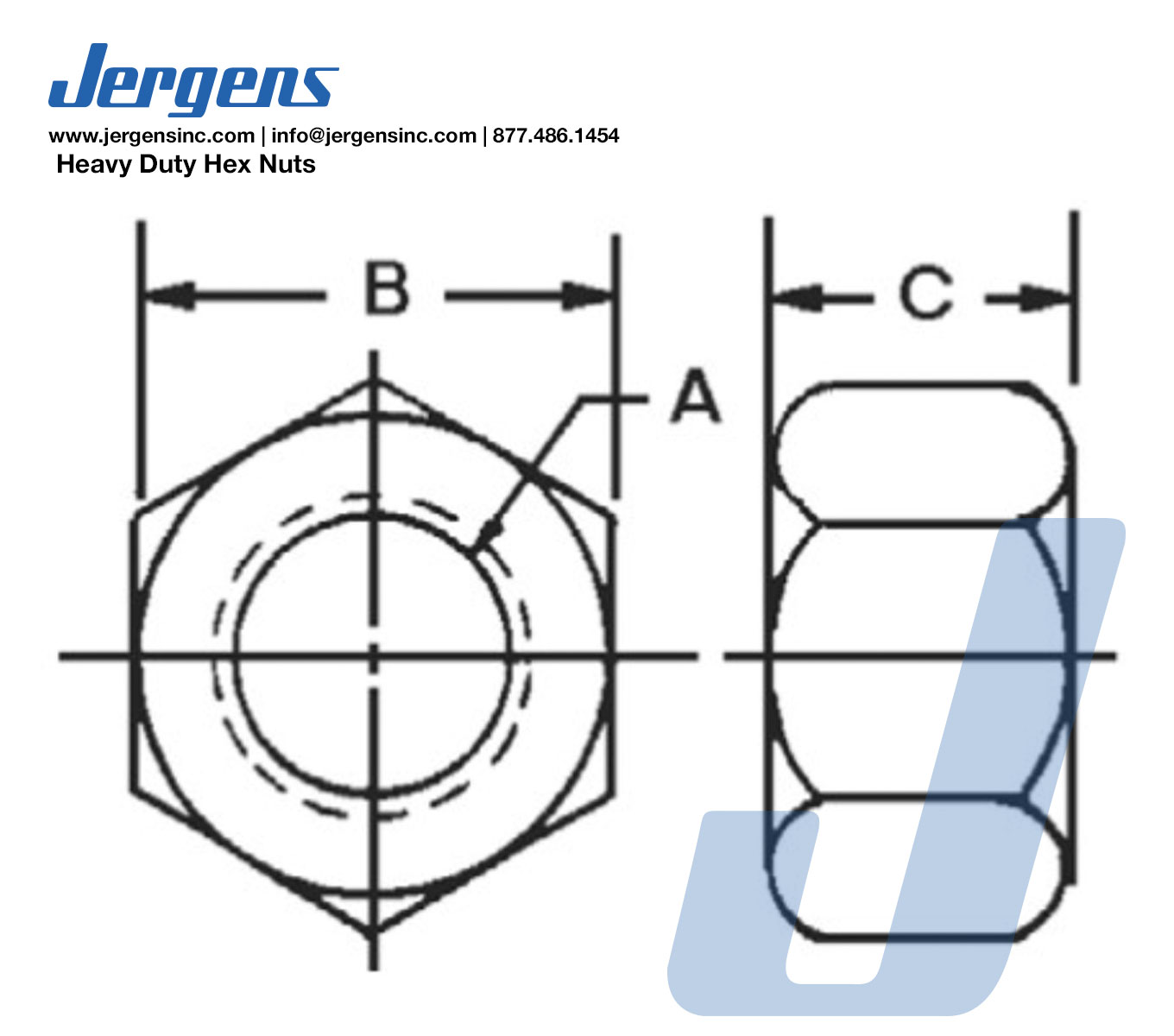

| Part Number | CAD | Unit | A | B (In) | C (In) | Weight 100 Pieces (lbs) | Material |
|---|---|---|---|---|---|---|---|
| 20711 |
|
Inch | 1/4-20 | 7/16 | 7/32 | 0.74 | Steel |
| 20712 |
|
Inch | 5/16-18 | 1/2 | 17/64 | 1.10 | Steel |
| 20713 |
|
Inch | 3/8-16 | 17/64 | 21/64 | 1.60 | Steel |
| 20714 |
|
Inch | 1/2-13 | 3/4 | 7/16 | 3.75 | Steel |
| 20716 |
|
Inch | 5/8-11 | 15/16 | 35/64 | 7.33 | Steel |
| 20717 |
|
Inch | 3/4-10 | 1 1/8 | 41/64 | 11.90 | Steel |
| 20718 |
|
Inch | 7/8-9 | 1 5/16 | 3/4 | 19.00 | Steel |
| 20719 |
|
Inch | 1-8 | 1 1/2 | 55/64 | 28.30 | Steel |
