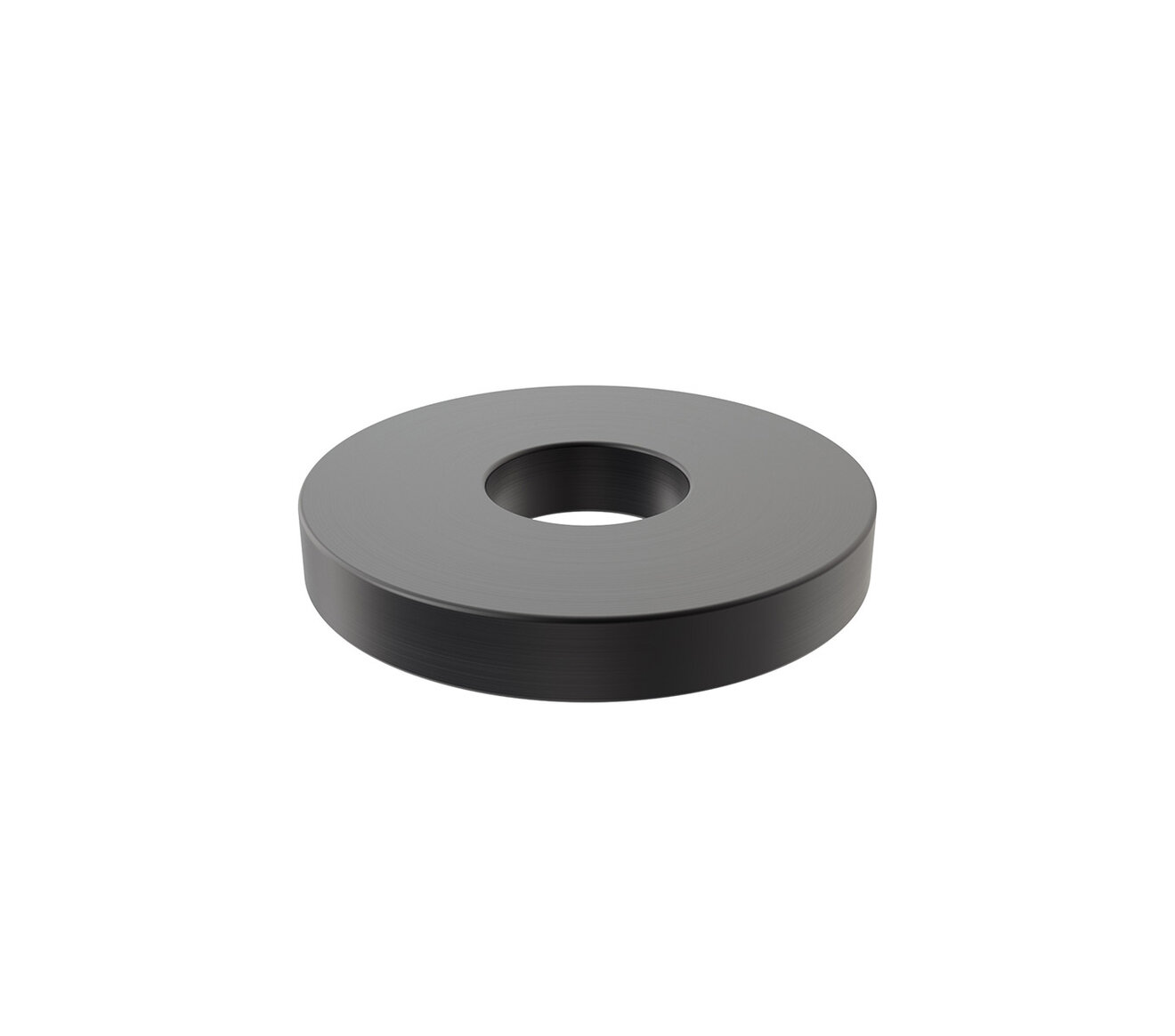

Heavy Duty Flat Washers
Jergens Heavy Duty Flat Washers are made from high-carbon through-hardened steel, which makes them up to 50% stronger than standard heavy-duty washers. Also more fracture-resistant under heavy loads.
Features, Benefits, & Product Specifications:
-
Material: High Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: RC 40-45 (Through-Hardened)
-
Flat and parallel within 0.005" (0.01mm)
Heavy Duty Flat Washers
Select a part number for CAD drawings, price and stock availability.

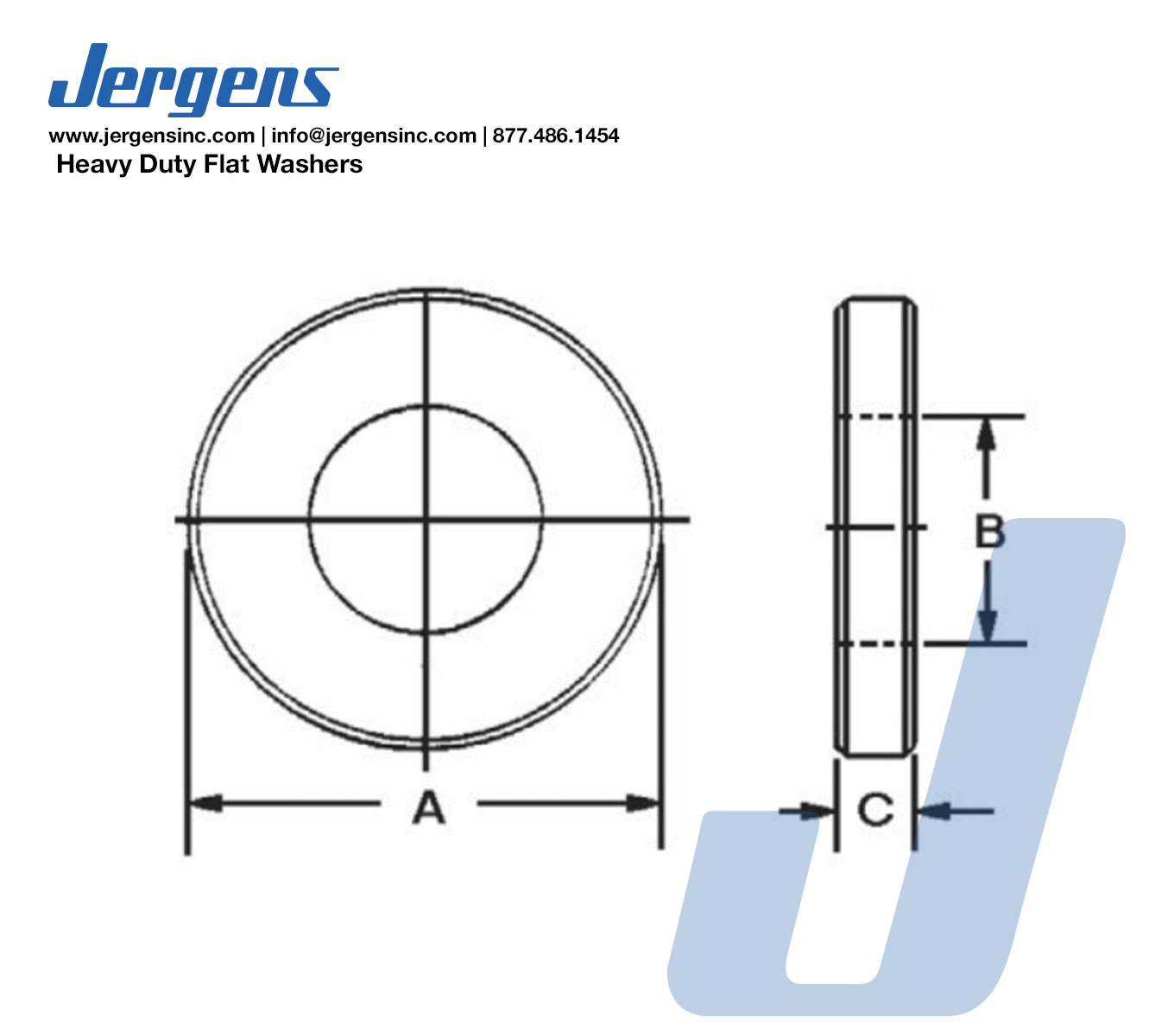

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | Bolt Size | Weight 10 Pieces (lbs) |
|---|---|---|---|---|---|---|---|
| 31960 |
|
Inch | 1-1/2 | 17/32 | 7/32 | 1/2 | 1.00 |
| 31961 |
|
Inch | 1 1/2 | 21/32 | 7/32 | 5/8 | 0.88 |
| 31962 |
|
Inch | 1 7/8 | 25/32 | 1/4 | 3/4 | 1.61 |
| 31963 |
|
Inch | 2 1/8 | 29/32 | 1/4 | 7/8 | 2.31 |
| 31964 |
|
Inch | 2 1/2 | 1 1/16 | 1/4 | 1 | 3.56 |
| 31965 |
|
Inch | 2-1/2 | 1-5/16 | 1/4 | 1-1/4 | 3.98 |
| 31966 |
|
Inch | 2-3/4 | 1-9/16 | 1/4 | 1-1/2 | 4.20 |
| 31967 |
|
Inch | 5/8 | 9/32 | 3/16 | 1/4 | 0.72 |
| 31968 |
|
Inch | 3/4 | 11/32 | 3/16 | 5/16 | 0.79 |
| 31969 |
|
Inch | 7/8 | 13/32 | 3/16 | 3/8 | 0.87 |
| Part Number | CAD | Unit | A (mm) | B (mm) | C (mm) | Bolt Size | Weight 10 Pieces (kgs) |
|---|---|---|---|---|---|---|---|
| 31961 |
|
Metric | 38 | 17 | 5.5 | M16 | 0.40 |
| 31962 |
|
Metric | 48 | 20 | 6.5 | M18 | 0.73 |
| 31963 |
|
Metric | 54 | 23 | 6.5 | M20 | 1.05 |
| 31964 |
|
Metric | 64 | 27 | 6.5 | M24 | 1.62 |
