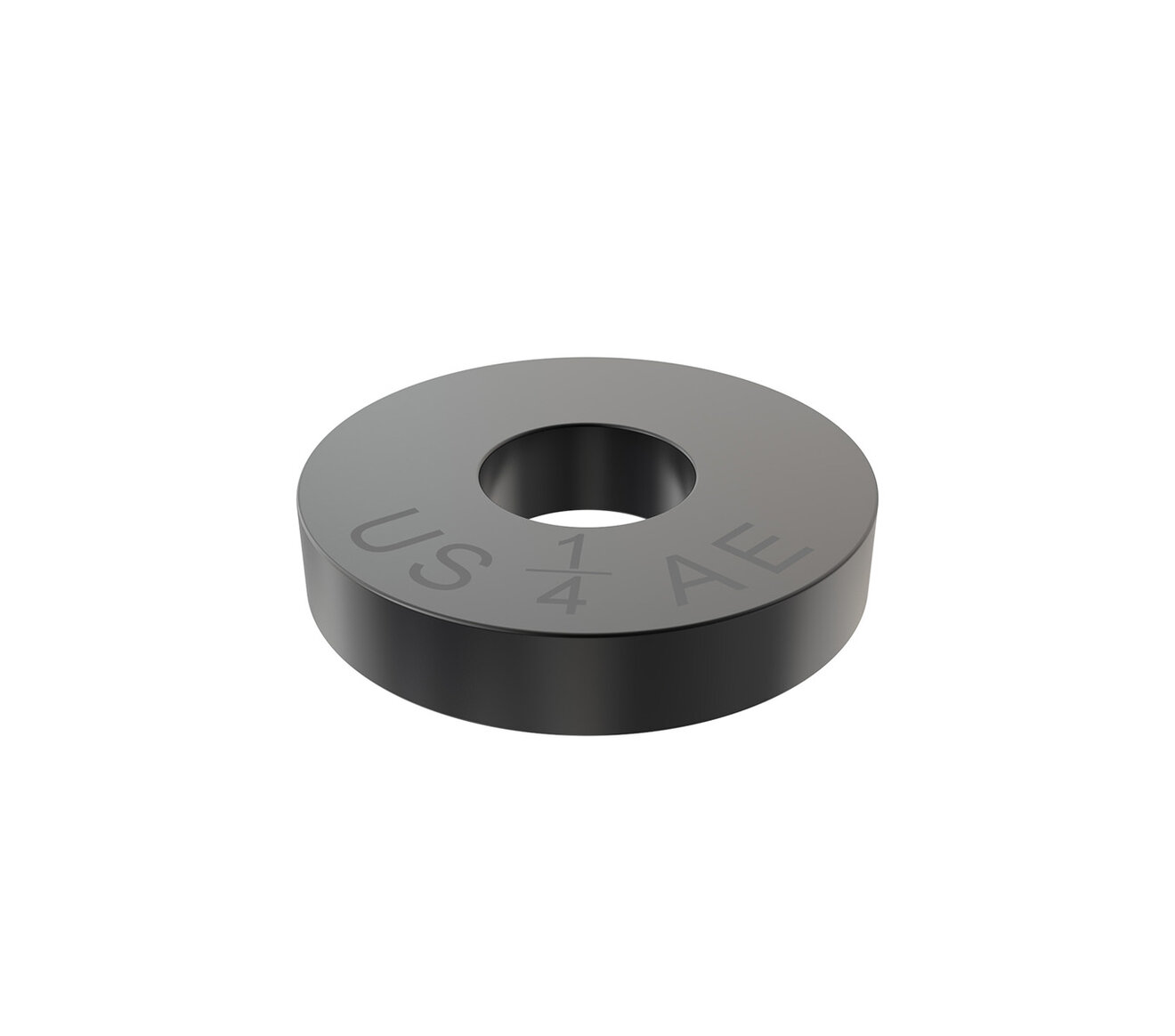

Heavy Duty Flat USAE™ Washers
Jergens Heavy Duty Flat USAE™ Washers are a simple but effective idea that is long overdue. The outside diameter conforms to USS standards and the inside diameter conforms to SAE standards. The small inside diameter provides a more precise fit on bolts, studs, etc. These washers are up to 37% thicker than standard hardened washers for greater strength.
Features, Benefits, & Product Specifications:
-
Material: Mild Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened 60 RC
-
Bolt size is stamped on each washer for easy identification
-
Tolerances for all dimensions are ±0.010”

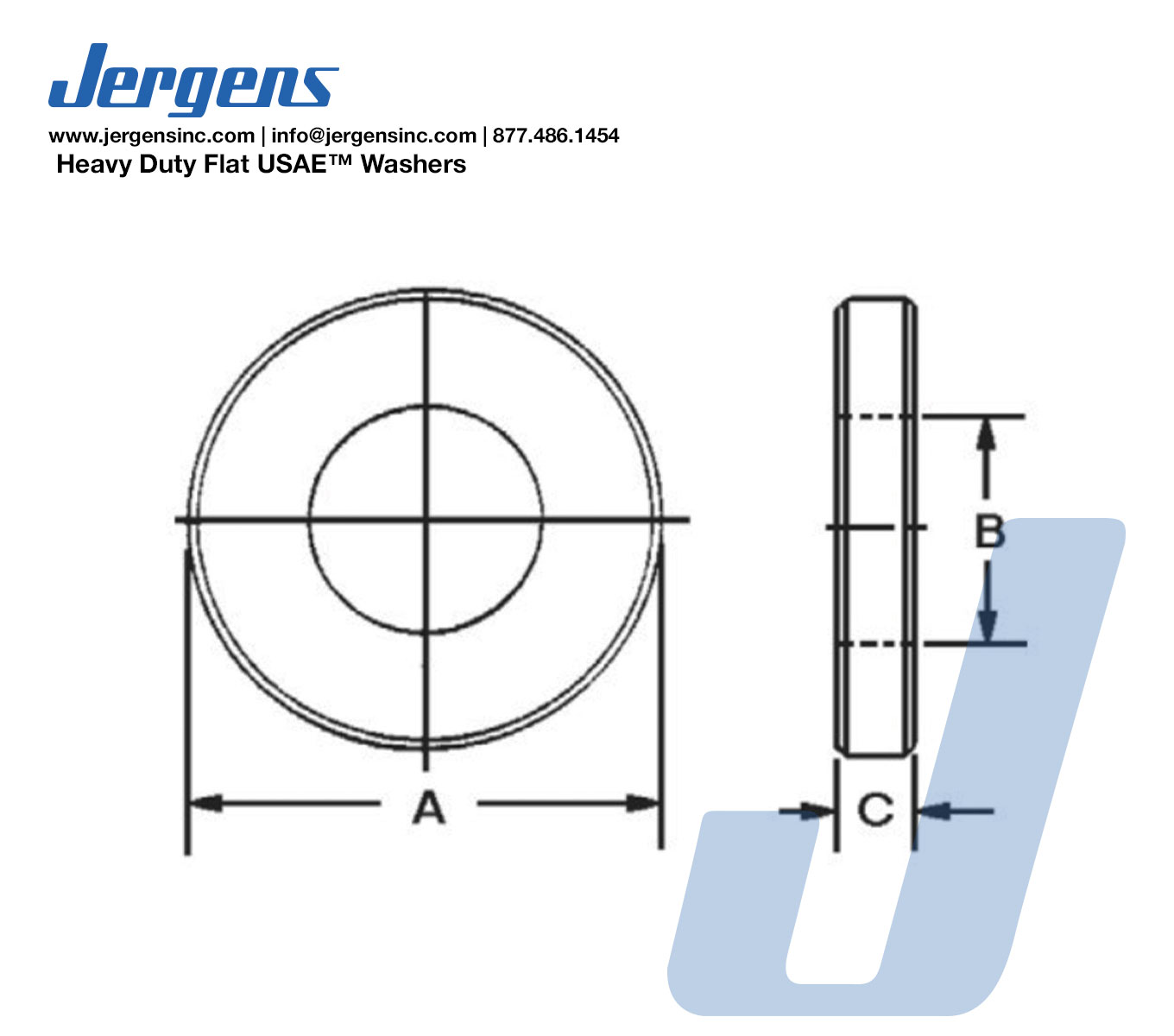

Heavy Duty Flat USAE Washer_LineArt
Heavy Duty Flat USAE™ Washers
| Part Number | CAD | Unit | Bolt Size | Outside Diameter A (in) | Inner Diameter B (in) | Thickness C (in) | |
|---|---|---|---|---|---|---|---|
| FW00001 |
|
Inch | 1/4 | 3/4 | 9/32 | 9/64 | |
| FW00002 |
|
Inch | 5/16 | 7/8 | 11/32 | 9/64 | |
| FW00003 |
|
Inch | 3/8 | 1 | 13/32 | 9/64 | |
| FW00004 |
|
Inch | 1/2 | 1 3/8 | 17/32 | 5/32 | |
| FW00005 |
|
Inch | 5/8 | 1 3/4 | 21/32 | 5/32 | |
| FW00006 |
|
Inch | 3/4 | 2 | 13/16 | 1/4 | |
| FW00007 |
|
Inch | 1 | 2 1/2 | 1 1/16 | 1/4 |
