HDC8800 Heavy Duty Cam Clamps

Jergens Magna Force Heavy Duty Cam Clamps are a unique, patented range of manually operated cam clamps with advantages over hydraulic automated clamping systems. Each model features a patented rugged build quality ideal for machine shops. They offer significant cost benefits over strap clamps in repetitive machining and are a fraction of the cost of hydraulic system clamping.

Features, Benefits, & Product Specifications:
  • Operating Clamping Forces:
    • 1,680 lbs (Hand Applied)
    • 9,000 lbs (Mallet Applied)
  • Weight: 1.21 lbs
Note(s):

Documents

HDC8800 Heavy Duty Cam Clamps

HDC8800 Heavy Duty Cam Clamps
  • HDC8800 Heavy Duty Cam Clamps

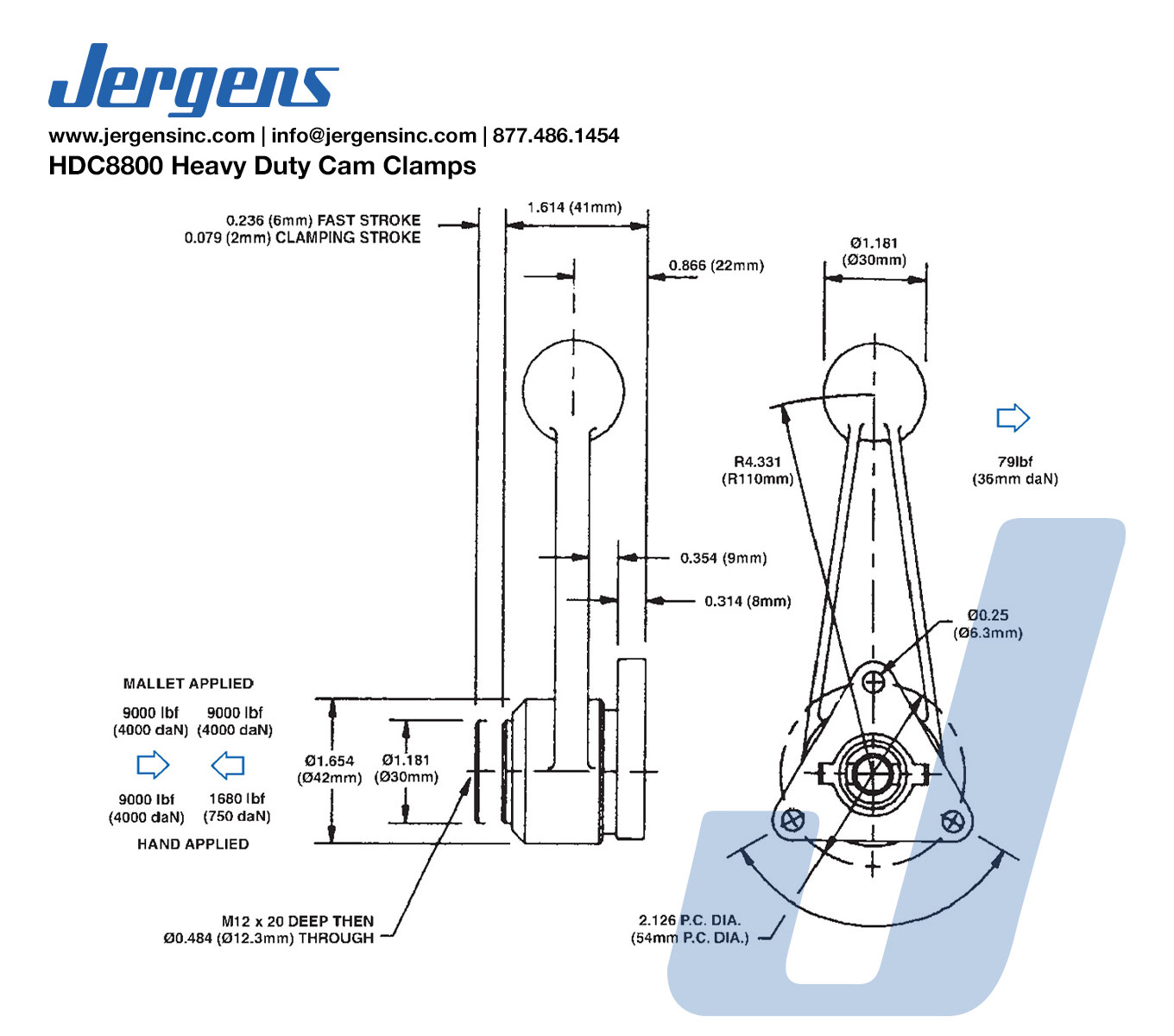

  • Line Art 72401 RAM, CLOCKWISE, 8992

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Model Number Rotation Operating Clamping Force - Hand (lbs) Operating Clamping Force - Mallet (lbs) Weight (lbs)
72401 icon_cad Inch HDC8800R Clockwise 1,680 8,992 1.21
72402 icon_cad Inch HDC8800RB Counter Clockwise 1,680 8,992 1.21
