HDC6750PL Heavy Duty Cam Push Clamps
Jergens Magna Force Heavy Duty Cam Clamps are a unique, patented range of manually operated cam clamps with advantages over hydraulic automated clamping systems. Each model features a patented rugged build quality ideal for machine shops. They offer significant cost benefits over strap clamps in repetitive machining and are a fraction of the cost of hydraulic system clamping.
Features, Benefits, & Product Specifications:
- Operating Clamping Force: 4,500 lbs
- Nominal Holding Force: 6,740 lbs
- Weight: 4.4 lbs
- Supplied complete with set screw, nuts, mounting base, & locknuts
Note(s):
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Documents
Jergens True-Lok™ Toggle Clamps_Catalog

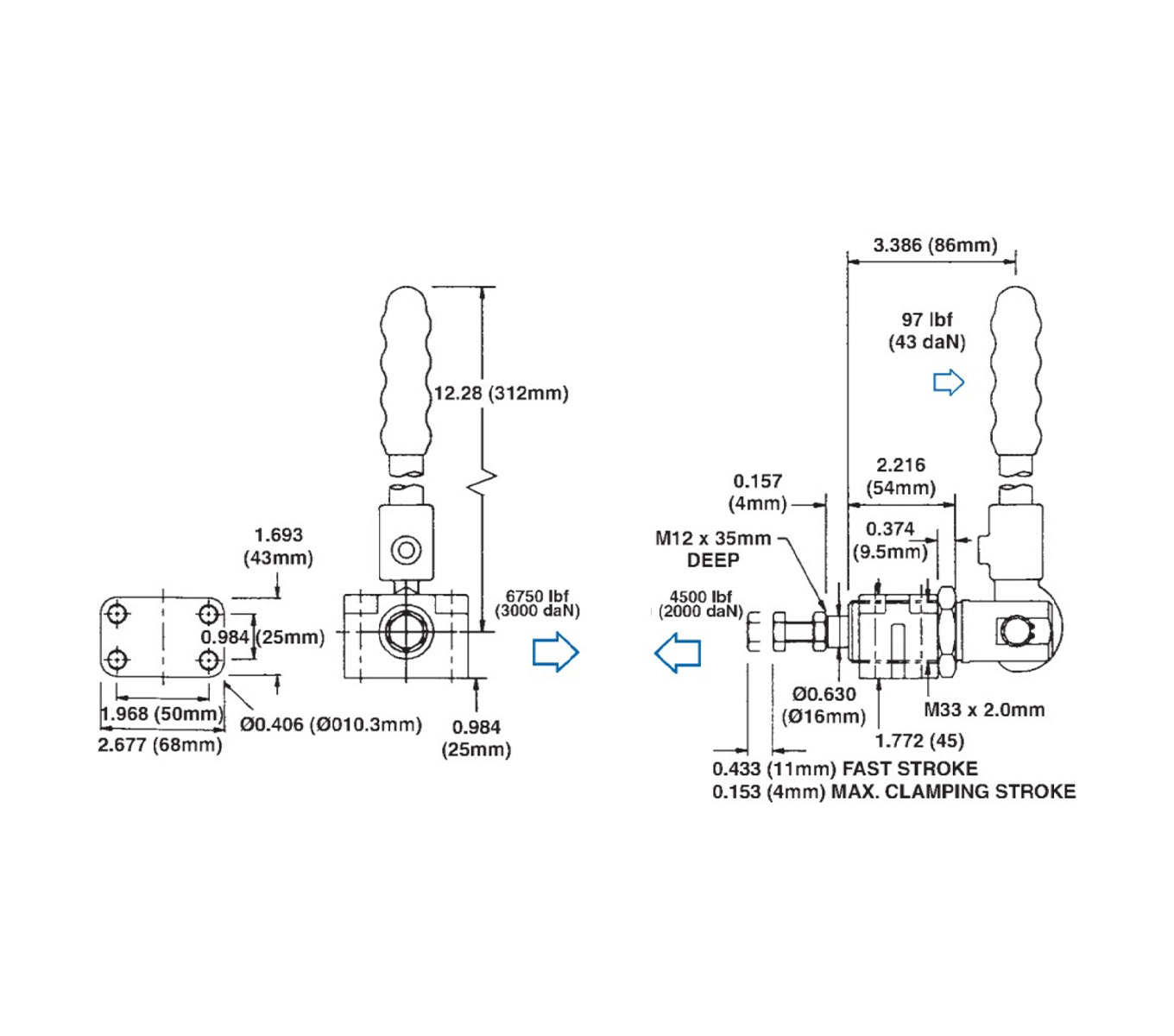

HDC6750PL Heavy Duty Cam Push Clamps
| Part Number | CAD | Unit | Operating Clamping Force - Hand (lbs) | Operating Clamping Force - Mallet (lbs) | Weight (lbs) | |
|---|---|---|---|---|---|---|
| 72416 |
|
Inch | 4,500 | - | 4.4 |
