HDC675 Heavy Duty Cam Swing Clamps

Jergens Magna Force Heavy Duty Cam Clamps are a unique, patented range of manually operated cam clamps with advantages over hydraulic automated clamping systems. Each model features a patented rugged build quality ideal for machine shops. They offer significant cost benefits over strap clamps in repetitive machining and are a fraction of the cost of hydraulic system clamping.

Features, Benefits, & Product Specifications:
  • Operating Clamping Force: 675 lbs (Hand Applied)
  • Weight: 0.4 lbs
  • Supplied complete with set screw & nuts
Note(s):

Documents

HDC675 Heavy Duty Cam Swing Clamps

HDC675 Heavy Duty Cam Swing Clamps
  • HDC675 Heavy Duty Cam Swing Clamps

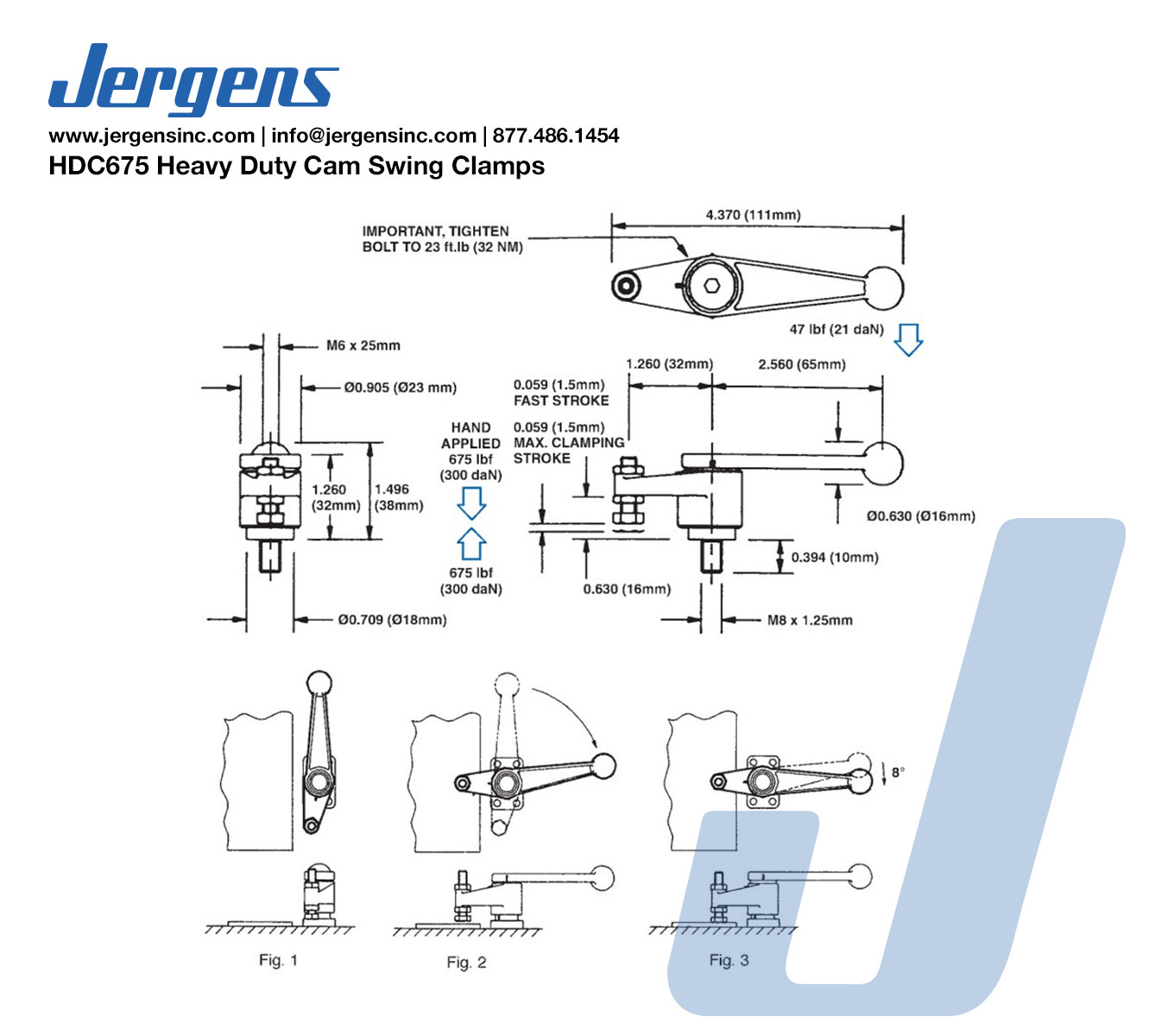

  • Line Art 72405 SWING , CLOCKWISE, 675

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Model Number Rotation Operating Clamping Force - Hand (lbs) Operating Clamping Force - Mallet (lbs) Weight (lbs)
72405 icon_cad Inch HDC675S Clockwise 674 N/A 0.4
72406 icon_cad Inch HDC675SB Counter Clockwise 674 N/A 0.4
