Hard & Soft Vise Jaws

Types of Hard & Soft Vise Jaws:

Standard: Fully machinable soft jaws, as supplied on our Production Vises & Columns
Extra Wide: Fully machinable soft jaws (-W)
Extra Tall: Fully machinable soft jaws (-T)
Hard Jaw Carriers: Drilled & tapped to accept hard jaw plates (-H)
Hard Jaw Plates: Hardened steel plates that bolt onto the hard jaw carriers (-H)

Hard & Soft Vise Jaws are offered in three ways:

Jaw Sets: Include (2) moveable jaws & (1) fixed jaw
Moveable Jaws: Sold in pairs
Fixed Jaws: Sold separately

Features, Benefits, & Product Specifications:

Rapid changeover from one workpiece to the next
Machine downtimes are minimized
Suitable for the milling of stop, supporting, & clamping surfaces
Quick set-up for formed parts and workpieces with complex clamping contours
Significant reduction in expenditure on fixtures
Standard Jaws are machinable aluminum

Note:

Steel jaws are available for all soft jaw sets. Add "-S" to the base part number. Example: "49420-S"

Documents

Hard & Soft Vise Jaws

Select a part number for CAD drawings, price and stock availability.

Inch Metric

Part Number	Unit	Compatibility	Description	A (In)	B (In)	C (In)	D (in)	E (in)	F (in)	G (in)
49420	Inch	4" (100mm) Vises	Standard Machinable Soft Jaw Set (3pcs)	3.95	1.22	4.00	2.50	2.20	-	-
49421	Inch	4" (100mm) Vises	Pair of Standard Moveable Soft Jaws (2pcs)	3.95	1.22	4.00	-	-	-	-
49422	Inch	4" (100mm) Vises	Standard Fixed Jaw (1pc)	3.95	-	1.22	2.50	-	-	-
49423	Inch	4" (100mm) Vises	Extra Wide Machinable Soft Jaw Set (3pcs)	5.95	1.22	4.00	2.50	2.20	-	-
49424	Inch	4" (100mm) Vises	Pair of Wide Moveable Jaws (2pcs)	5.95	1.22	4.00	-	-	-	-
49425	Inch	4" (100mm) Vises	Wide Fixed Jaw (1pc)	5.95	1.22	-	2.50	-	-	-
49426	Inch	4" (100mm) Vises	Hard Jaw Carrier Set (3pcs)	3.95	1.22	3.44	0.96	2.88	-	-
49427	Inch	4" (100mm) Vises	Fixed Hard Jaw (1pc)	3.95	1.22	-	0.96	-	-	-
49428	Inch	4" (100mm) Vises	Pair of Moveable Hard Jaws (2pcs)	3.95	1.22	3.44	-	-	-	-
49429	Inch	4" (100mm) Vises	Hardened Steel Jaw Insert (4pcs)	3.95	-	-	-	-	0.35	1.23
49430	Inch	6" (150mm) Vises	Standard Machinable Soft Jaw Set (3pcs)	5.95	1.45	5.00	3.00	3.50	-	-
49431	Inch	6" (150mm) Vises	Pair of Std. Moveable Soft Jaws (2pcs)	5.95	1.45	5.00	-	-	-	-
49432	Inch	6" (150mm) Vises	Std Fixed Soft Jaw (1pc)	5.95	1.45	-	3.00	-	-	-
49433	Inch	6" (150mm) Vises	Extra Wide Machinable Soft Jaw Set (3pcs)	7.95	1.45	5.00	3.00	3.50	-	-
49434	Inch	6" (150mm) Vises	Pair of Wide Moveable Soft Jaws (2pcs)	7.95	1.45	5.00	-	-	-	-
49435	Inch	6" (150mm) Vises	Wide Fixed Soft Jaw (1pc)	7.95	1.45	-	3.00	-	-	-

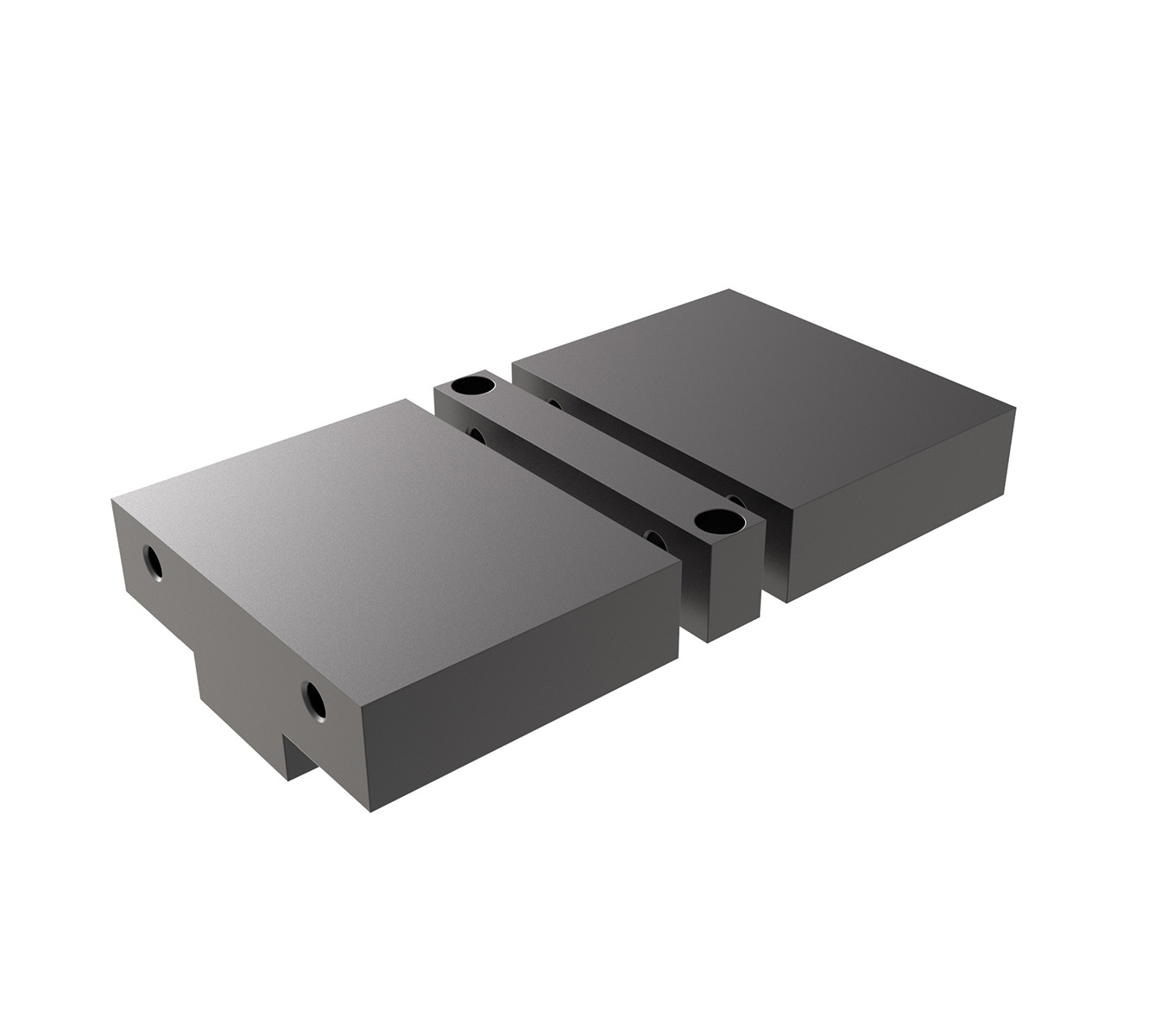

49436	Inch	6" (150mm) Vises	Hard Jaw Carrier Set (3pcs)	5.95	1.48	4.50	0.96	4.00	-	-
49437	Inch	6" (150mm) Vises	Fixed Hard Jaw (1pc)	5.95	1.48	-	0.96	-	-	-
49438	Inch	6" (150mm) Vises	Pair of Moveable Hard Jaws (2pcs)	5.95	1.48	4.50	-	-	-	-
49439	Inch	6" (150mm) Vises	Hardened Steel Jaw Insert (4pcs)	6.00	-	-	0.48	1.75	0.48	1.75
49450	Inch	4" (100mm) Vises	Extra Tall Machinable Soft Jaw Set (3pcs)	3.93	2.00	5.00	2.50	1.70	-	-
49451	Inch	4" (100mm) Vises	Pair of Tall Moveable Jaws (2pcs)	3.95	2.00	5.00	-	-	-	-
49452	Inch	4" (100mm) Vises	Tall Fixed Jaw (1pc)	3.95	2.00	-	2.50	-	-	-
49453	Inch	6" (150mm) Vises	Pair of Tall Moveable Jaws (2pcs)	5.95	2.50	6.00	-	-	-	-
49454	Inch	6" (150mm) Vises	Tall Fixed Jaw (1pc)	5.95	2.50	-	3.00	-	-	-
49455	Inch	6" (150mm) Vises	Extra Tall Machinable Jaw Set (3pcs)	5.95	2.50	6.00	3.00	3.00	-	-
