Hand Knob Screws
Jergens Hand Knob Screws are designed for applications where thumb screws are too light, and a heavier, larger unit is needed.
Features, Benefits, & Product Specifications:
-
Head Material & Finish: Cast Iron, Zinc-Plated
-
Stem Material & Finish: Stressproof® Steel, Black Oxide
-
Dog point end
-
Thread: 2A-UNC

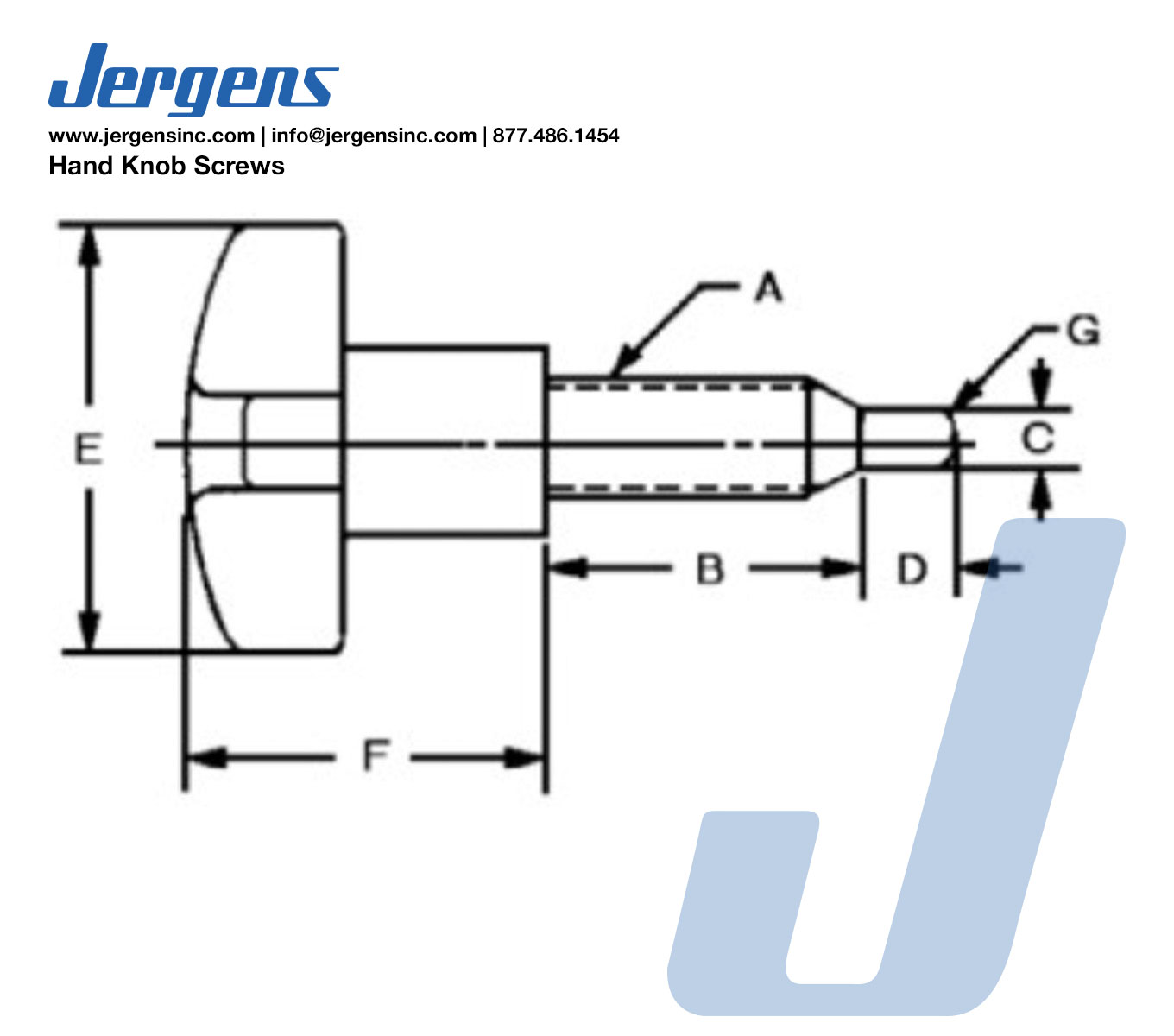

Hand Knob Screw_LineArt
Hand Knob Screws
| Part Number | CAD | Unit | A | B (In) | C (In) | D (in) | E (in) | F (in) | Radius G (in) | Weight 10 Pcs (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 13901 |
|
Inch | 1/4-20 | 3/4 | 11/64 | 1/4 | 1 1/8 | 7/8 | 1/8 | 0.78 | |
| 13902 |
|
Inch | 5/16-18 | 1 1/16 | 7/32 | 5/16 | 1 1/2 | 1 | 1/4 | 1.57 | |
| 13903 |
|
Inch | 3/8-16 | 1 3/16 | 1/4 | 5/16 | 2 | 1 1/8 | 1/4 | 1.87 | |
| 13904 |
|
Inch | 1/2-13 | 1 5/8 | 3/8 | 3/8 | 2 1/2 | 1 1/2 | 3/8 | 4.00 | |
| 13905 |
|
Inch | 5/8-11 | 1 3/4 | 15/32 | 3/8 | 3 | 2 | 3/8 | 12.50 |
