Gooseneck Forged Strap Clamps
With one of the largest selections available, Jergens Workholding Components have everything you need to design and build fixtures, jigs, and other workholding devices.
Features, Benefits, & Product Specifications:
-
Materials: Available in C-1030 Steel or C-1035 Steel
Note(s):
The "S" dimension applies to Tapped Gooseneck Forged Strap Clamps only.
Gooseneck Forged Strap Clamps

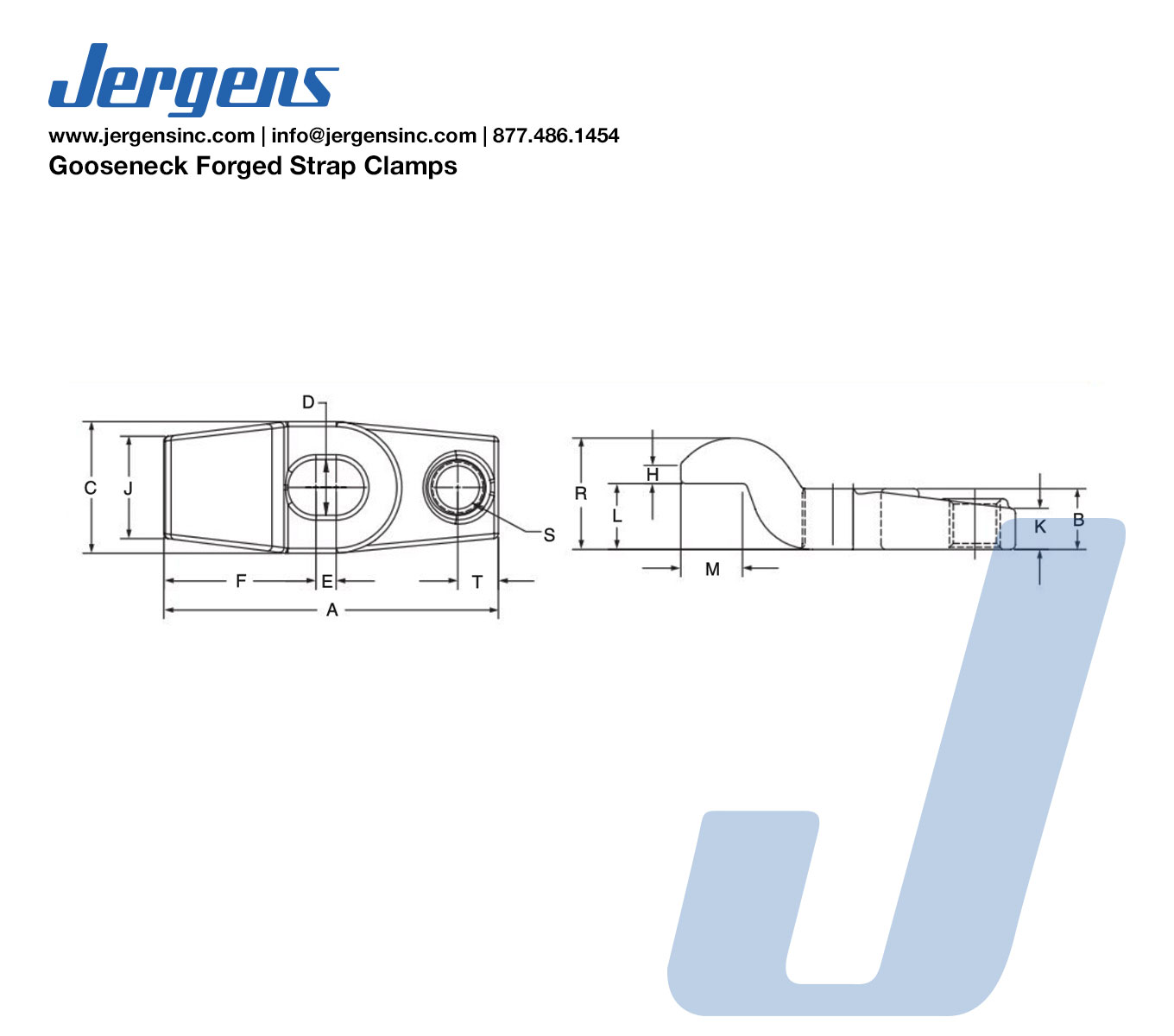

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Style | Bolt Size | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | H (In) | J (In) | K (In) | L (In) | M (In) | R (In) | S | T (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 37211 |
|
Inch | Standard | 5/8 | 4 | 3/4 | 1 5/8 | 11/16 | 1/4 | 1 7/8 | 3/8 | 1 3/16 | 1/2 | 13/16 | 3/4 | 1 7/16 | - | 1/2 | 1.00 |
| 37212 |
|
Inch | Tapped | 5/8 | 4 | 3/4 | 1 5/8 | 11/16 | 1/4 | 1 7/8 | 3/8 | 1 3/16 | 1/2 | 13/16 | 3/4 | 1 7/16 | 5/8-11 | 1/2 | 1.00 |
| 37213 |
|
Inch | Standard | 5/8 | 6 | 7/8 | 1 3/4 | 11/16 | 1 | 2 1/2 | 7/16 | 1 1/4 | 9/16 | 15/16 | 1 1/8 | 1 9/16 | - | 5/8 | 2.00 |
| 37214 |
|
Inch | Tapped | 5/8 | 6 | 7/8 | 1 3/4 | 11/16 | 1 | 2 1/2 | 7/16 | 1 1/4 | 9/16 | 15/16 | 1 1/8 | 1 9/16 | 5/8-11 | 5/8 | 2.00 |
| 37215 |
|
Inch | Standard | 3/4 | 8 | 1 1/8 | 2 1/8 | 13/16 | 1 5/8 | 3 3/16 | 9/16 | 1 1/2 | 3/4 | 1 1/8 | 1 1/4 | 2 1/16 | - | 1 | 4.25 |
| 37216 |
|
Inch | Tapped | 3/4 | 8 | 1 1/8 | 2 1/8 | 13/16 | 1 5/8 | 3 3/16 | 9/16 | 1 1/2 | 3/4 | 1 1/8 | 1 1/4 | 2 1/16 | 5/8-11 | 1 | 4.25 |
| Part Number | CAD | Unit | Style | Bolt Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | H (mm) | J (mm) | K (mm) | L (mm) | M (mm) | R (mm) | S | T (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 37211 |
|
Metric | Standard | M16 | 100 | 19 | 41 | 17 | 6 | 48 | 10 | 30 | 13 | 20 | 19 | 37 | - | 13 | 0.53 |
| 37213 |
|
Metric | Standard | M16 | 150 | 22 | 44 | 17 | 25 | 63 | 11 | 32 | 14 | 24 | 28 | 40 | - | 16 | 1.40 |
| 37215 |
|
Metric | Standard | M20 | 200 | 29 | 54 | 21 | 41 | 81 | 14 | 38 | 19 | 28 | 32 | 52 | - | 25 | 2.30 |
| 37262 |
|
Metric | Tapped | M16 | 100 | 19 | 41 | 17 | 6 | 48 | 10 | 30 | 13 | 20 | 19 | 37 | M16 x 2.0 | 13 | 0.53 |
| 37264 |
|
Metric | Tapped | M16 | 150 | 22 | 44 | 17 | 25 | 63 | 11 | 32 | 14 | 24 | 28 | 40 | M16 x 2.0 | 16 | 1.40 |
| 37266 |
|
Metric | Tapped | M20 | 200 | 29 | 54 | 21 | 41 | 81 | 14 | 38 | 19 | 28 | 32 | 52 | M16 x 2.0 | 25 | 2.30 |
