Forged Adjustable Clamps

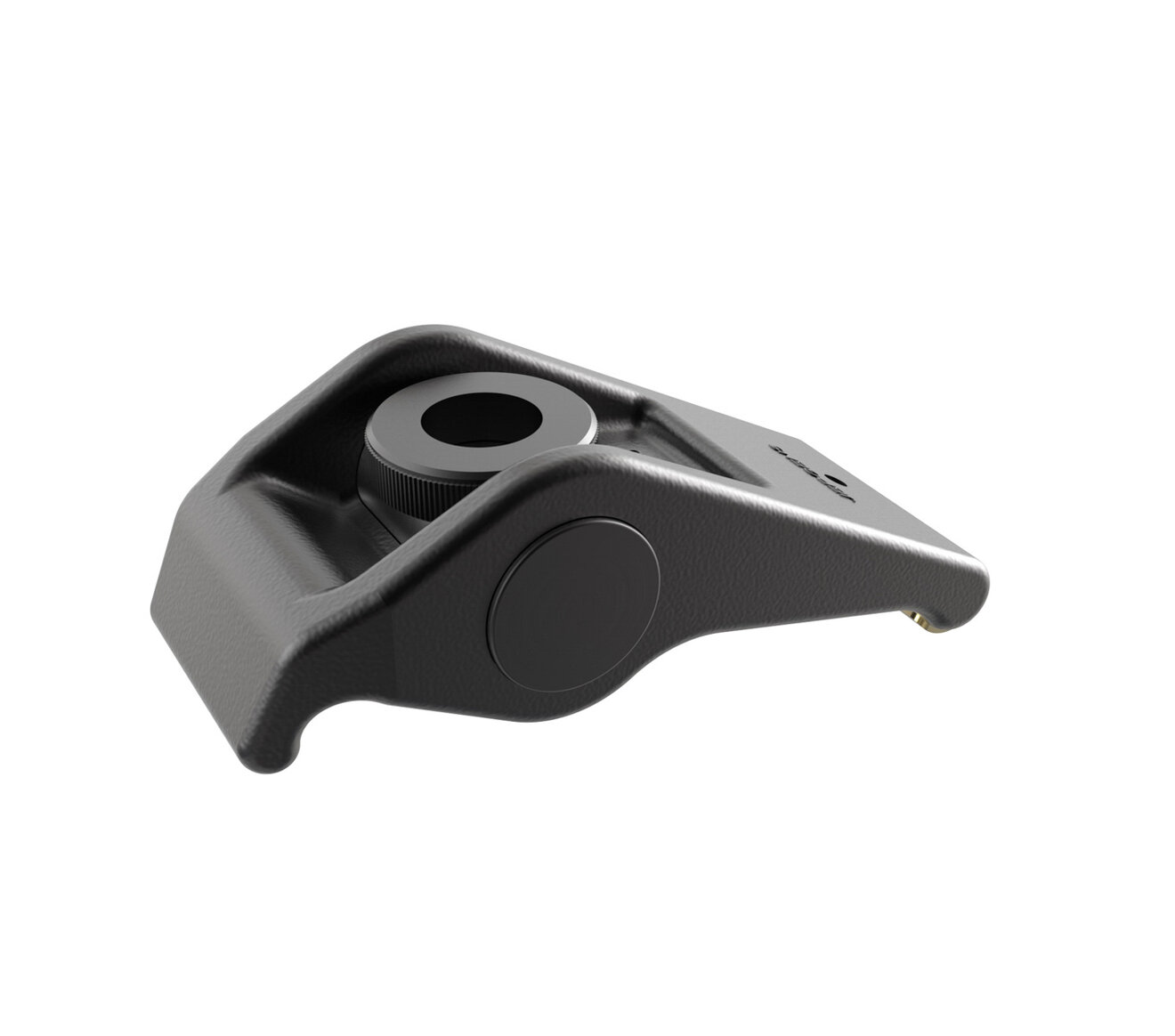

Jergens Forged Adjustable Clamps automatically compensate for clamping height changes within their clamping ranges. These clamps feature high-quality forging providing superior clamping strength. The swivel bushing is permanently mounted in the clamp, which alleviates lost or missing parts. The standard brass heel plate protects the machine table.
Features, Benefits, & Product Specifications:
- Material: 1137 Forged Steel, Heat Treated
- Finish: Black Oxide
- One piece construction
- Versatile clamping height
- Made in the U.S.A.
- Accessories available (see Related Products below)
Note(s):
- Holding forces are based on using our heat-treated Alloy Steel T-slot Bolts, Studs, T-nuts, and Flange Nuts in order at the recommended torque.
Forged Adjustable Clamps

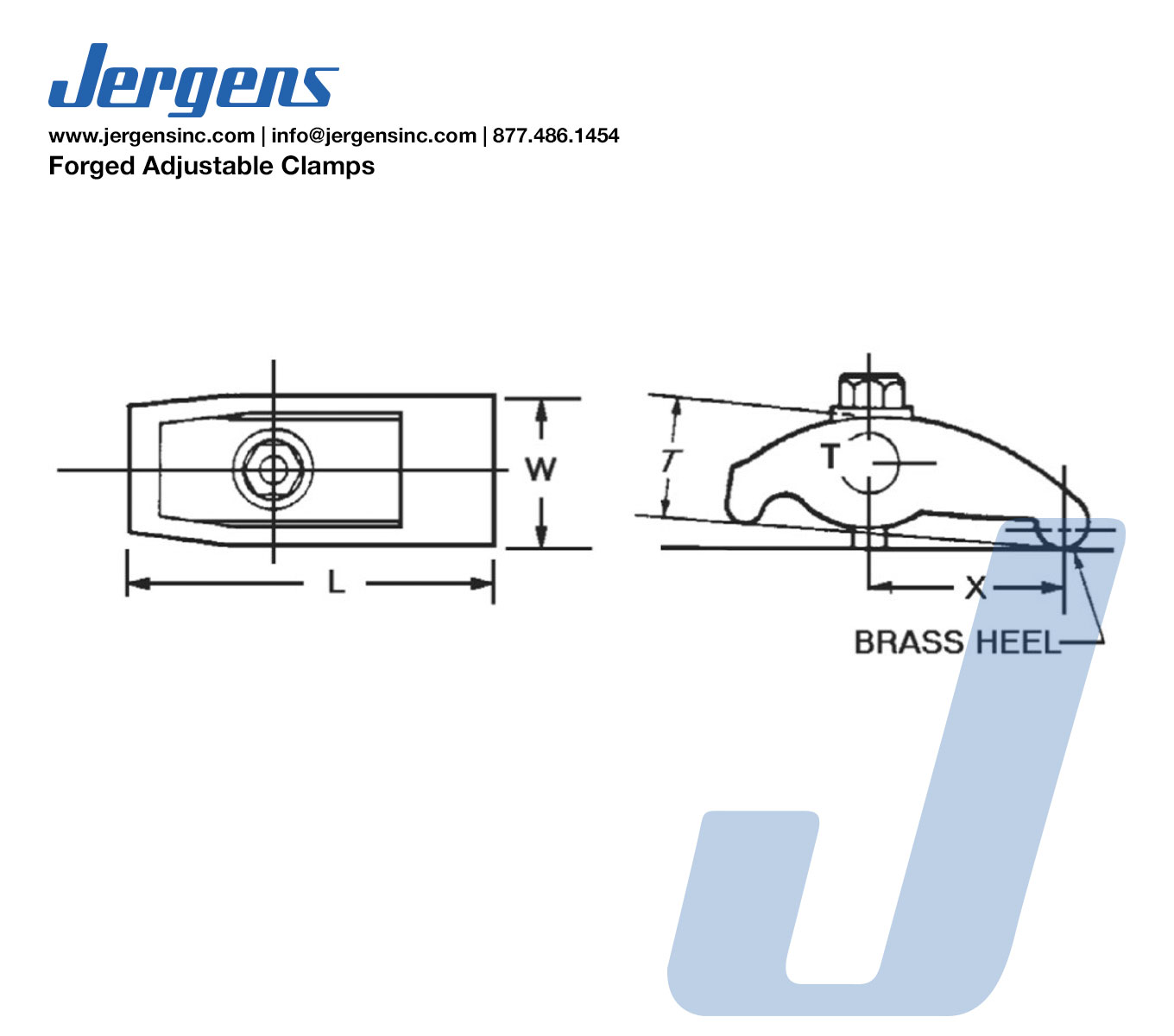

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Bolt Size | Clamping Range (In) | W (In) | T (In) | L (In) | X (In) | Maximum Torque (ft/lbs) | Maximum Holding Force (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 19101 | Inch | 1/2 | 0 - 2 | 1 3/4 | 1 1/2 | 4 1/4 | 2 1/2 | 90 | 6800 | 1.1 | |
| 19102 |
|
Inch | 5/8 | 0 - 2 3/8 | 2 | 1 5/8 | 5 | 3 | 180 | 10600 | 1.7 |
| 19103 |
|
Inch | 3/4 | 0 - 2 3/4 | 2 1/2 | 1 3/4 | 6 1/4 | 3 3/4 | 300 | 16000 | 3.0 |
| 19104 |
|
Inch | 7/8 - 1 | 0 - 3 1/2 | 3 | 2 3/8 | 7 | 4 1/4 | 500-760 | 21800-28600 | 5.3 |
| Part Number | CAD | Unit | Bolt Size | Clamping Range (mm) | W (mm) | T (mm) | L (mm) | X (mm) | Maximum Torque (ft/lbs) | Maximum Holding Force (lbs) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 19101 | Metric | M12 | 0 - 50 | 44 | 38 | 108 | 63 | 100 | 2800 | 0.60 | |
| 19102 |
|
Metric | M16 | 0 - 60 | 50 | 41 | 125 | 75 | 260 | 5250 | 0.92 |
| 19103 |
|
Metric | M20 | 0 - 70 | 63 | 44 | 159 | 95 | 500 | 8250 | 1.60 |
| 19104 |
|
Metric | M24 | 0 - 89 | 75 | 60 | 175 | 108 | 870 | 11850 | 2.90 |
