Flat Washers
Jergens Flat Washers incorporate spacing and distribute load when placed between a nut and bolt or screw. They will help prevent wear and distortion of installation surfaces over time.
Features, Benefits, & Product Specifications:
-
Material: Available in 1010 Cold Rolled Steel and 303 Stainless Steel
-
Finish: Black Oxide (for 1010 Cold Rolled Steel Washers)
-
Heat Treat: Carbon Nitride to 60 (for 1010 Cold Rolled Steel Washers)
-
Flat and parallel within 0.005" (0.13mm)

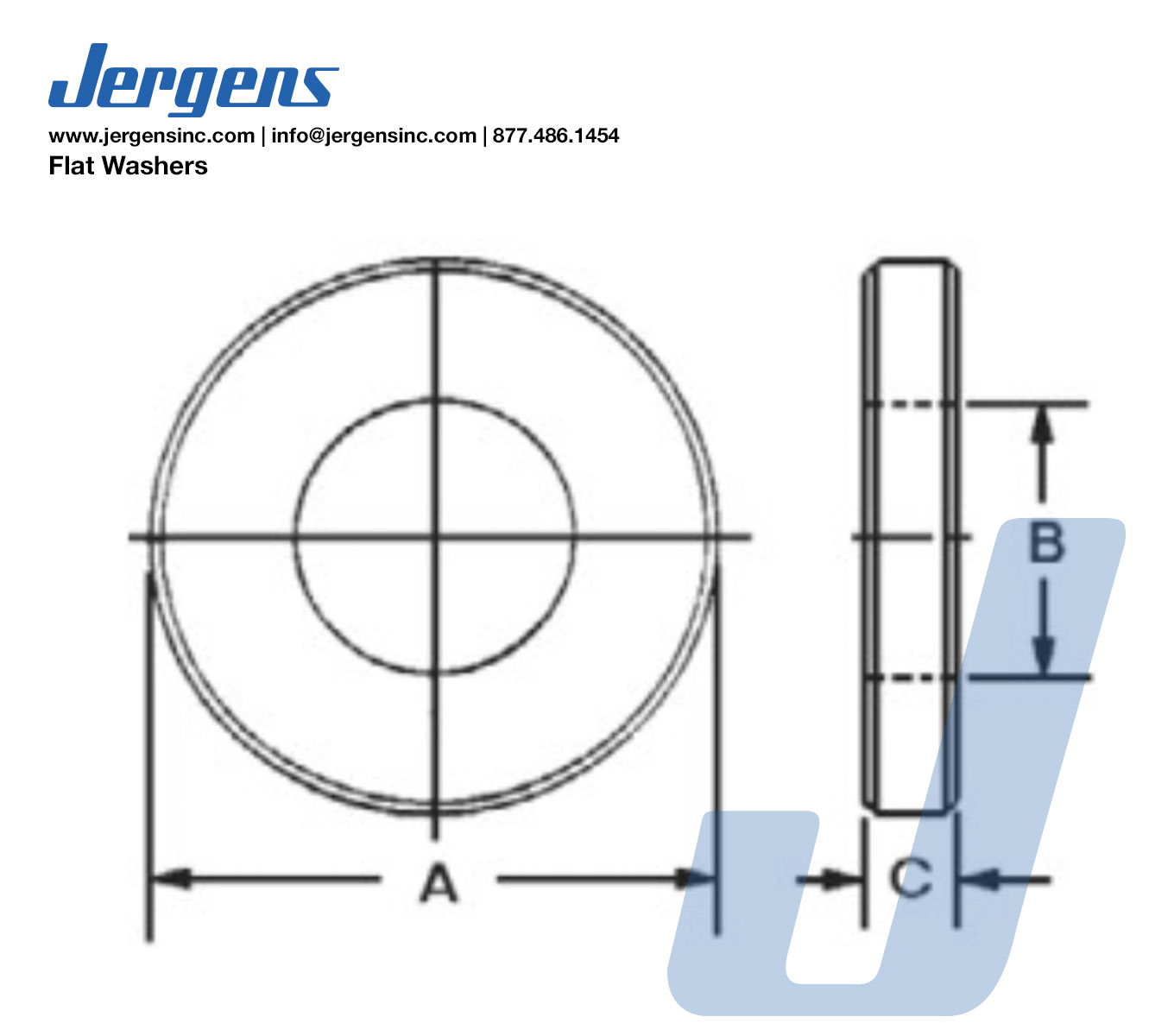

Flat Washers_LineArt
Flat Washers
| Part Number | CAD | Unit | Material | A (In) | B (In) | C (In) | Bolt Size | Weight 10 Pieces (lbs) | |
|---|---|---|---|---|---|---|---|---|---|
| 31901 |
|
Inch | Steel | 1/2 | 13/64 | 3/32 | 3/16 | 0.04 | |
| 31902 |
|
Inch | Steel | 5/8 | 9/32 | 1/8 | 1/4 | 0.05 | |
| 31903 |
|
Inch | Steel | 3/4 | 11/32 | 1/8 | 5/16 | 0.10 | |
| 31904 |
|
Inch | Steel | 7/8 | 13/32 | 1/8 | 3/8 | 0.21 | |
| 31905 |
|
Inch | Steel | 1 1/8 | 17/32 | 1/8 | 1/2 | 0.42 | |
| 31906 |
|
Inch | Steel | 1 3/8 | 21/32 | 1/8 | 5/8 | 0.63 | |
| 31907 |
|
Inch | Steel | 1 5/8 | 25/32 | 5/32 | 3/4 | 1.10 | |
| 31908 |
|
Inch | Steel | 1 3/4 | 29/32 | 5/32 | 7/8 | 1.20 | |
| 31909 |
|
Inch | Steel | 2 | 1 1/32 | 3/16 | 1 | 1.70 | |
| 31910 |
|
Inch | Steel | 2 1/2 | 1 9/32 | 9/32 | 1 1/4 | 2.20 | |
| 32001 |
|
Inch | Stainless Steel | 7/16 | 0.196 | 5/64 | 3/16 | 0.10 | |
| 32002 |
|
Inch | Stainless Steel | 5/8 | 17/64 | 3/32 | 1/4 | 0.10 | |
| 32003 |
|
Inch | Stainless Steel | 11/16 | 11/32 | 1/8 | 5/16 | 0.10 | |
| 32004 |
|
Inch | Stainless Steel | 7/8 | 25/64 | 1/8 | 3/8 | 0.20 | |
| 32005 |
|
Inch | Stainless Steel | 1 1/8 | 17/32 | 1/8 | 1/2 | 0.30 | |
| 32006 |
|
Inch | Stainless Steel | 1 1/4 | 21/32 | 1/8 | 5/8 | 0.30 | |
| 32007 |
|
Inch | Stainless Steel | 1 1/2 | 25/32 | 5/32 | 3/4 | 0.60 |
