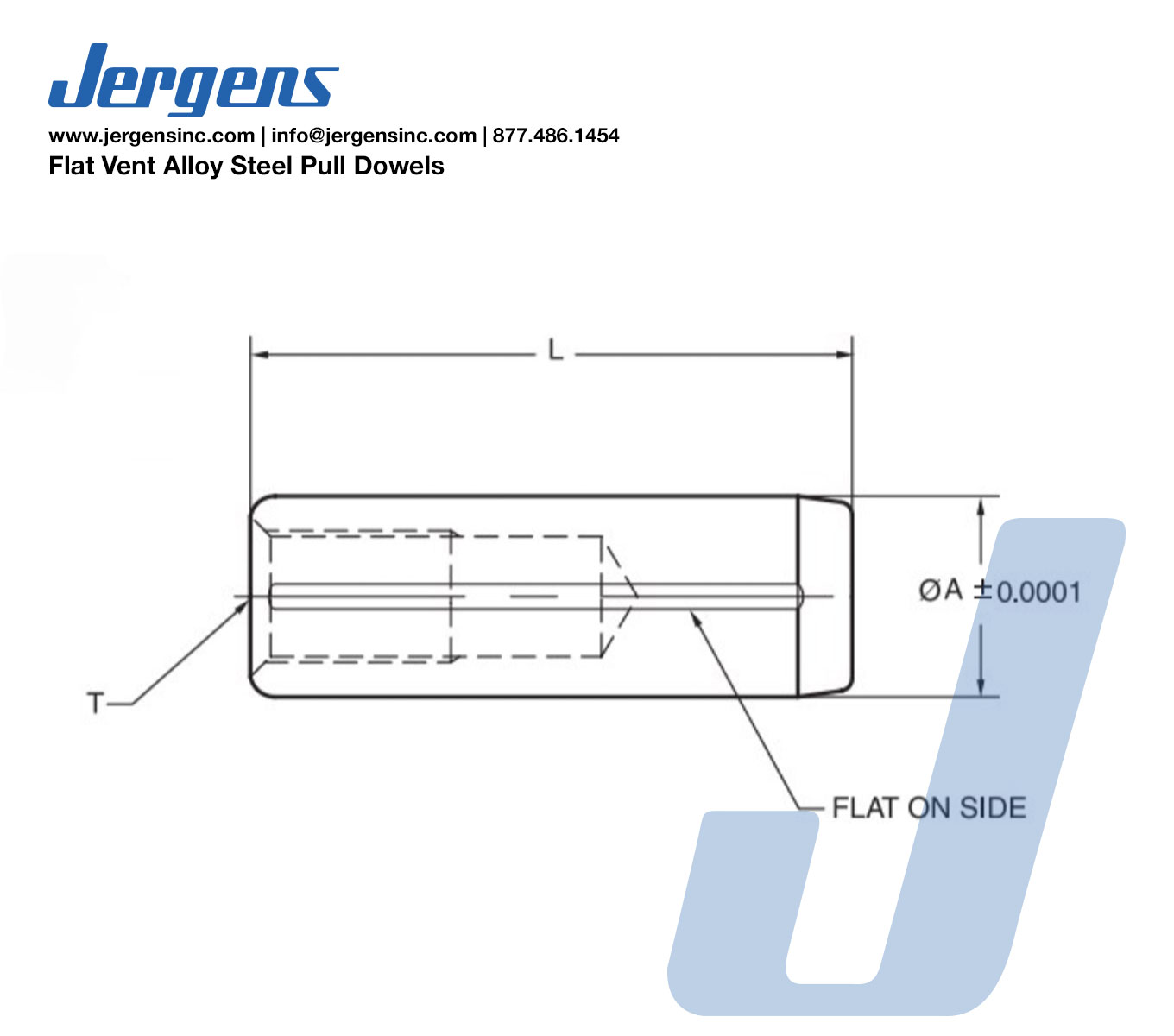

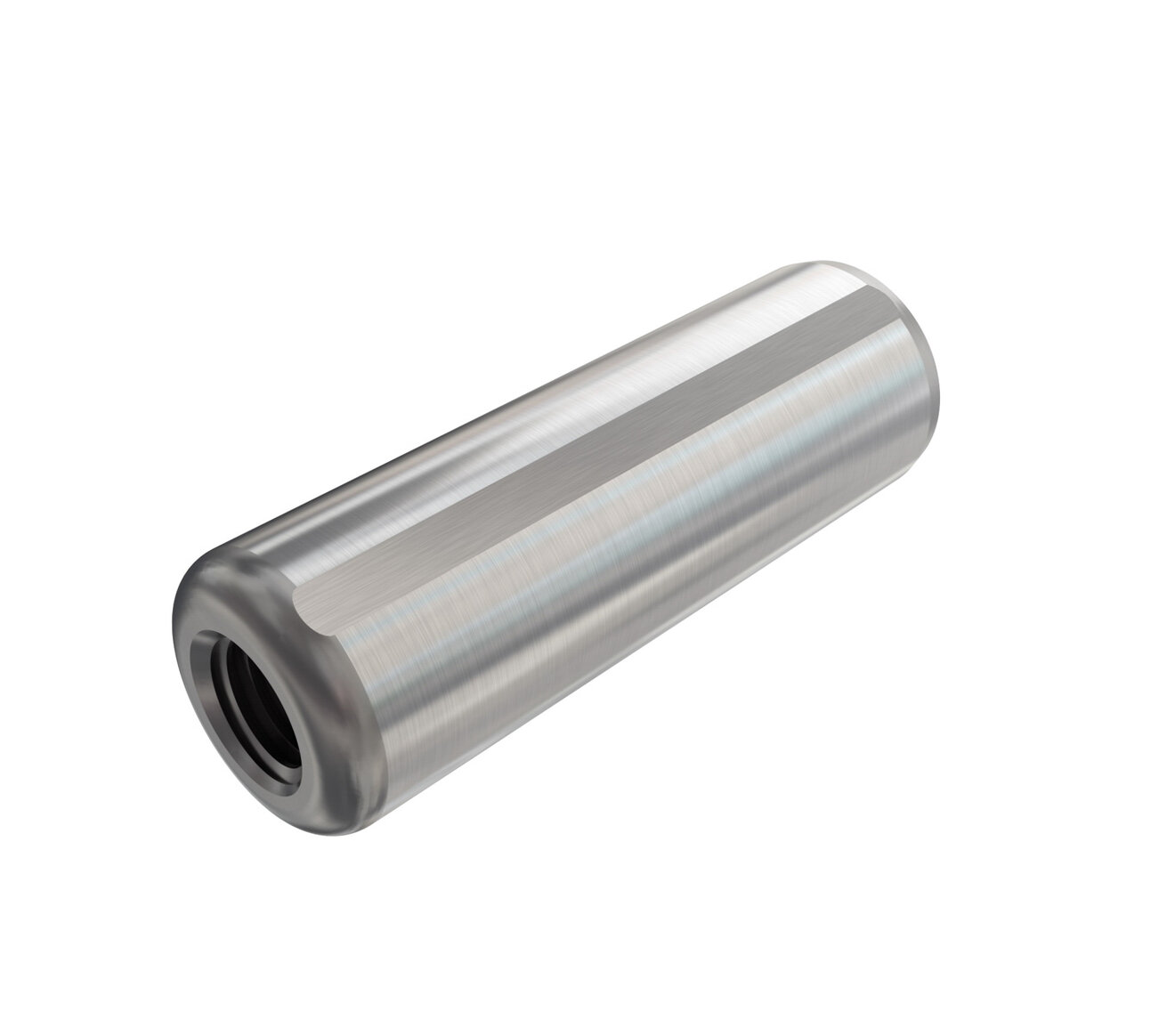

Flat Vent Alloy Steel Pull Dowels
Jergens Flat Vent Alloy Steel Pull Dowels are typically used in blind hole applications. Their internally threaded hole allows the removal of pull dowels with a standard screw. All of our Pull Dowels are constructed of heat-treated alloy steel.
Features, Benefits, & Product Specifications:
-
Ground flat to help relieve trapped air
-
Material: Alloy Steel
-
Surface Finish: 8 Micro-Inch
-
Core Hardness: 47 - 58 Rockwell C
-
Surface Hardness: 60 - 64 Rockwell C
-
Length Tolerance: ±0.010"
-
Diameter Tolerance: ±0.0001"
-
Recommended Hole Size: 0.0005" under Nom. Dia.
-
Specification: ASME B18.8.2
Documents
Flat Vent Alloy Steel Pull Dowels
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Nominal (In) | Actual (In) | Length (In) | Interal Thread |
|---|---|---|---|---|---|---|
| 31400 |
|
Inch | 1/4 | 0.2502 | 1/2 | 8-32 |
| 31401 |
|
Inch | 1/4 | 0.2502 | 3/4 | 8-32 |
| 31402 |
|
Inch | 1/4 | 0.2502 | 1 | 8-32 |
| 31403 |
|
Inch | 1/4 | 0.2502 | 1 1/4 | 8-32 |
| 31404 |
|
Inch | 1/4 | 0.2502 | 1 1/2 | 8-32 |
| 31405 |
|
Inch | 1/4 | 0.2502 | 1 3/4 | 8-32 |
| 31406 |
|
Inch | 1/4 | 0.2502 | 2 | 8-32 |
| 31407 |
|
Inch | 1/4 | 0.2502 | 2-1/4 | 8-32 |
| 31408 |
|
Inch | 1/4 | 0.2502 | 2 1/2 | 8-32 |
| 31409 |
|
Inch | 5/16 | 0.3127 | 3/4 | 10-32 |
| 31410 |
|
Inch | 5/16 | 0.3127 | 1 | 10-32 |
| 31411 |
|
Inch | 5/16 | 0.3127 | 1 1/4 | 10-32 |
| 31412 |
|
Inch | 5/16 | 0.3127 | 1 1/2 | 10-32 |
| 31413 |
|
Inch | 5/16 | 0.3127 | 2 | 10-32 |
| 31415 |
|
Inch | 5/16 | 0.3127 | 2 1/2 | 10-32 |
| 31416 |
|
Inch | 3/8 | 0.3752 | 3/4 | 10-32 |
| 31417 |
|
Inch | 3/8 | 0.3752 | 1 | 10-32 |
| 31418 |
|
Inch | 3/8 | 0.3752 | 1 1/4 | 10-32 |
| 31419 |
|
Inch | 3/8 | 0.3752 | 1 1/2 | 10-32 |
| 31420 |
|
Inch | 3/8 | 0.3752 | 1 3/4 | 10-32 |
| 31421 |
|
Inch | 3/8 | 0.3752 | 2 | 10-32 |
| 31422 |
|
Inch | 3/8 | 0.3752 | 2 1/4 | 10-32 |
| 31423 |
|
Inch | 3/8 | 0.3752 | 2 1/2 | 10-32 |
| 31424 |
|
Inch | 3/8 | 0.3752 | 3 | 10-32 |
| 31425 |
|
Inch | 7/16 | 0.4377 | 1 | 1/4-20 |
| 31426 |
|
Inch | 7/16 | 0.4377 | 1-1/2 | 1/4-20 |
| 31427 |
|
Inch | 7/16 | 0.4377 | 2 | 1/4-20 |
| 31428 |
|
Inch | 1/2 | 0.5002 | 3/4 | 1/4-20 |
| 31429 |
|
Inch | 1/2 | 0.5002 | 1 | 1/4-20 |
| 31430 |
|
Inch | 1/2 | 0.5002 | 1 1/4 | 1/4-20 |
| 31431 |
|
Inch | 1/2 | 0.5002 | 1 1/2 | 1/4-20 |
| 31432 |
|
Inch | 1/2 | 0.5002 | 1 3/4 | 1/4-20 |
| 31433 |
|
Inch | 1/2 | 0.5002 | 2 | 1/4-20 |
| 31434 |
|
Inch | 1/2 | 0.5002 | 2 1/4 | 1/4-20 |
| 31435 |
|
Inch | 1/2 | 0.5002 | 2 1/2 | 1/4-20 |
| 31436 |
|
Inch | 1/2 | 0.5002 | 3 | 1/4-20 |
| 31437 |
|
Inch | 1/2 | 0.5002 | 3 1/2 | 1/4-20 |
| 31438 |
|
Inch | 1/2 | 0.5002 | 4 | 1/4-20 |
| 31439 |
|
Inch | 5/8 | 0.6252 | 1 1/4 | 1/4-20 |
| 31440 |
|
Inch | 5/8 | 0.6252 | 1 1/2 | 1/4-20 |
| 31441 |
|
Inch | 5/8 | 0.6252 | 2 | 1/4-20 |
| 31442 |
|
Inch | 5/8 | 0.6252 | 2 1/4 | 1/4-20 |
| 31443 |
|
Inch | 5/8 | 0.6252 | 2 1/2 | 1/4-20 |
| 31444 |
|
Inch | 5/8 | 0.6252 | 3 | 1/4-20 |
| 31445 |
|
Inch | 5/8 | 0.6252 | 4 | 1/4-20 |
| 31446 |
|
Inch | 3/4 | 0.7502 | 1 1/2 | 5/16-18 |
| 31447 |
|
Inch | 3/4 | 0.7502 | 2 | 5/16-18 |
| 31448 |
|
Inch | 3/4 | 0.7502 | 2 1/2 | 5/16-18 |
| 31449 |
|
Inch | 3/4 | 0.7502 | 3 | 5/16-18 |
| 31450 |
|
Inch | 3/4 | 0.7502 | 4 | 5/16-18 |
| 31451 |
|
Inch | 1 | 1.0002 | 1 3/4 | 5/16-18 |
| 31452 |
|
Inch | 1 | 1.0002 | 2 | 5/16-18 |
| 31453 |
|
Inch | 1 | 1.0002 | 2 1/2 | 5/16-18 |
| 31454 |
|
Inch | 1 | 1.0002 | 3 | 5/16-18 |
| 31455 |
|
Inch | 1 | 1.0002 | 4 | 5/16-18 |
| 31456 |
|
Inch | 3/4 | 0.7502 | 1 3/4 | 5/16-18 |
