Flat Feet
By holding close tolerances on the "B" dimension when replacement becomes necessary, your original tolerances are maintained within 0.0005" (0.013mm).
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Heat Treat: Case Hardened 75-77 R30N
-
Cap screw included
Documents

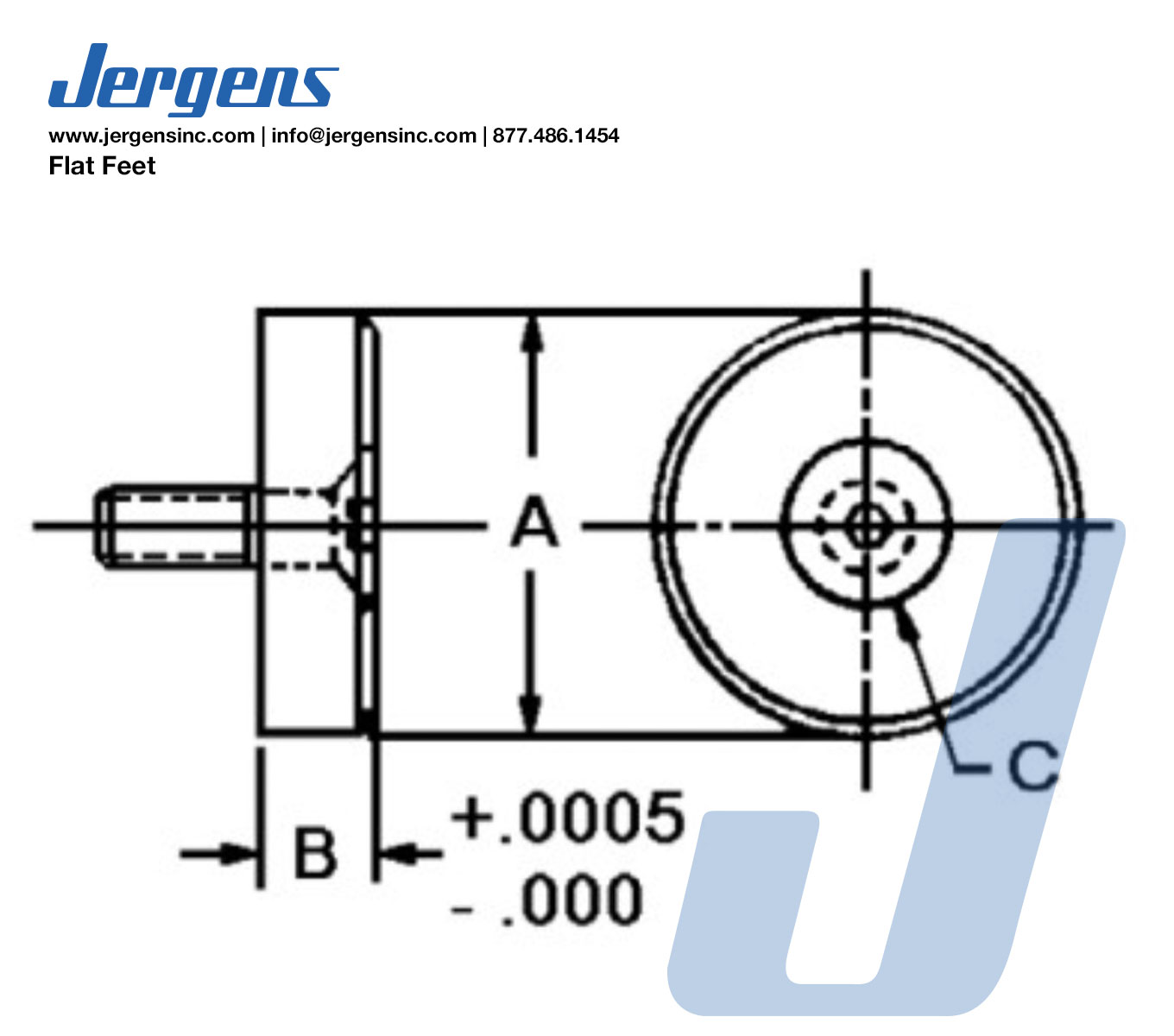

Flat Feet_LineArt

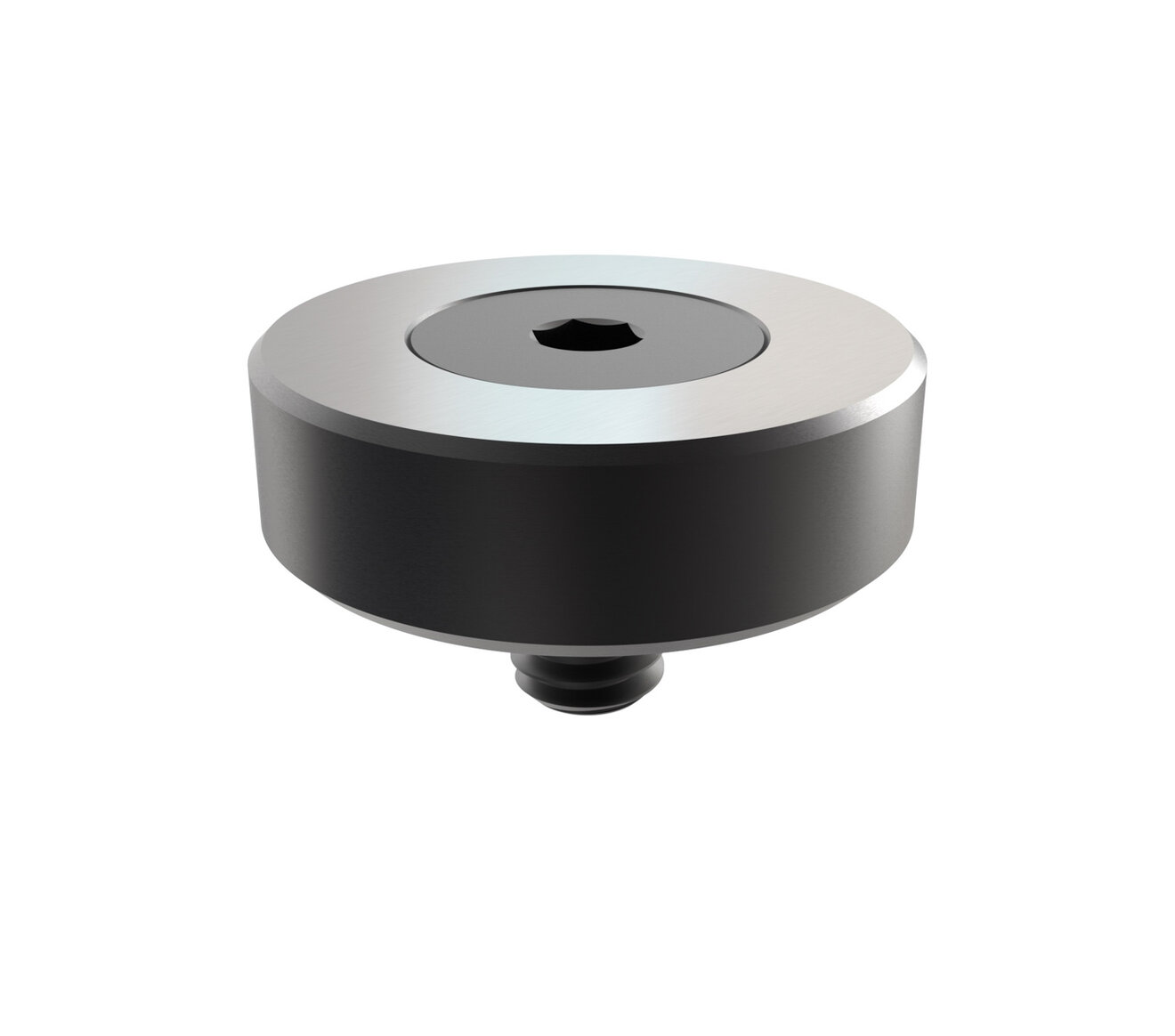

Flat Feet
| Part Number | CAD | Unit | A (In) | B +0.0005/-0.000 (In) | Flat Head Screw C | Weight 10 Pcs (lbs) | |
|---|---|---|---|---|---|---|---|
| 19301 |
|
Inch | 1/2 | 1/8 | 8-32 x 3/8 | 0.06 | |
| 19302 |
|
Inch | 1/2 | 1/4 | 8-32 x 1/2 | 0.16 | |
| 19303 |
|
Inch | 5/8 | 1/4 | 10-32 x 5/8 | 0.21 | |
| 19304 |
|
Inch | 7/8 | 3/8 | 1/4-20 x 3/4 | 0.62 | |
| 19305 |
|
Inch | 1 1/4 | 3/8 | 5/16-18 x 3/4 | 1.25 | |
| 19306 |
|
Inch | 1 5/8 | 3/8 | 3/8-16 x 3/4 | 2.20 |
