Flange Nuts

Where heavy clamping pressures and vibrations could cause trouble, the wide face surface of Jergens Flange Nuts holds through with greater friction.

Features, Benefits, & Product Specifications:

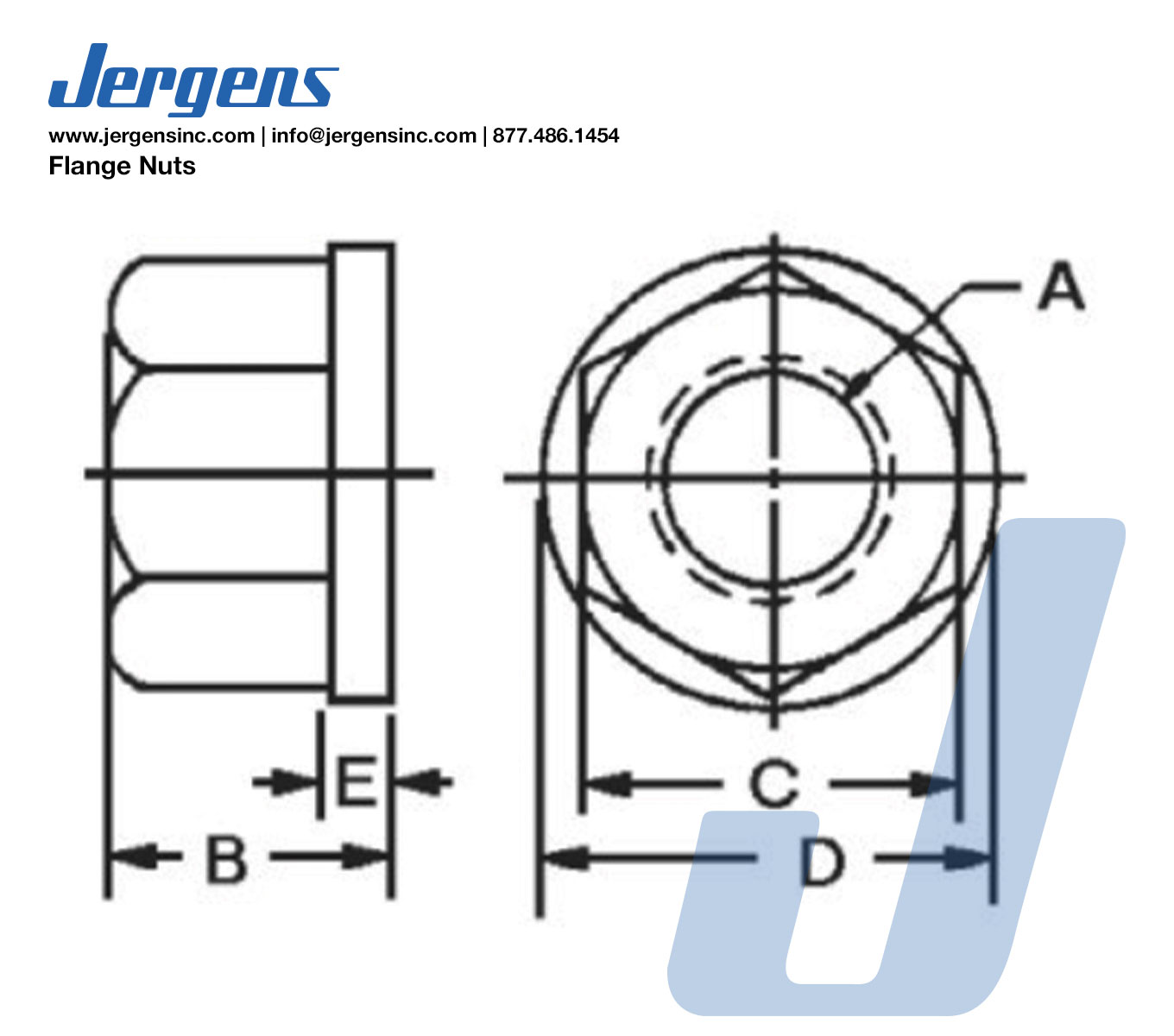

Select a part number for CAD drawings, price and stock availability.

Inch Metric

Part Number	Unit	Pitch Type	Thread A	B (In)	C (In)	D (in)	E (in)	Weight (lbs)
19904	Inch	Coarse	3/8-16	1/2	11/16	7/8	1/8	0.06
19906	Inch	Coarse	1/2-13	11/16	7/8	1 1/8	5/32	0.11
19907	Inch	Coarse	5/8-11	13/16	1 1/16	1 3/8	3/16	0.18
19908	Inch	Coarse	3/4-10	1	1 1/4	1 5/8	1/4	0.32
19909	Inch	Coarse	7/8-9	1 1/8	1 7/16	1 3/4	1/4	0.42
19910	Inch	Coarse	1/8	1 1/4	1 5/8	2	1/4	0.60
19911	Inch	Coarse	1 1/8-7	1 3/8	1 13/16	2 1/4	1/4	0.80
19912	Inch	Coarse	1 1/4-7	1 3/8	1 13/16	2 1/4	1/4	0.76
19913	Inch	Coarse	1 1/2-6	1 1/2	2 3/16	2 3/4	1/4	1.19
20104	Inch	Fine	7/16-20	9/16	3/4	15/16	1/8	0.06
20108	Inch	Fine	7/8-14	1 1/8	1 7/16	1 3/4	1/4	0.42

Part Number	CAD	Unit	Thread A	B (mm)	C (mm)	D (mm)	E (mm)	Weight (kg)
19953		Metric	M8 x 1.25	10	13	19	2	0.01
