Flange Nut Clamp Assemblies
Jergens Flange Nut Clamp Assemblies provide heavy-duty clamping of plain surfaces with a spherical flange nut and a spherical washer for angular flexibility. A long, true-milled slot allows greater clearance for placing and removing work. Each clamp assembly features a spring-loaded stud for quick release. Plastic and Brass Strap Pads are available for protecting the workpiece (see Related Products below).
Note(s):
-
G dimension represents an optimum dimension.
-
Part No. 12701 does not include a finger handle (see Related Products below).
Flange Nut Clamp Assemblies
Select a part number for CAD drawings, price and stock availability.

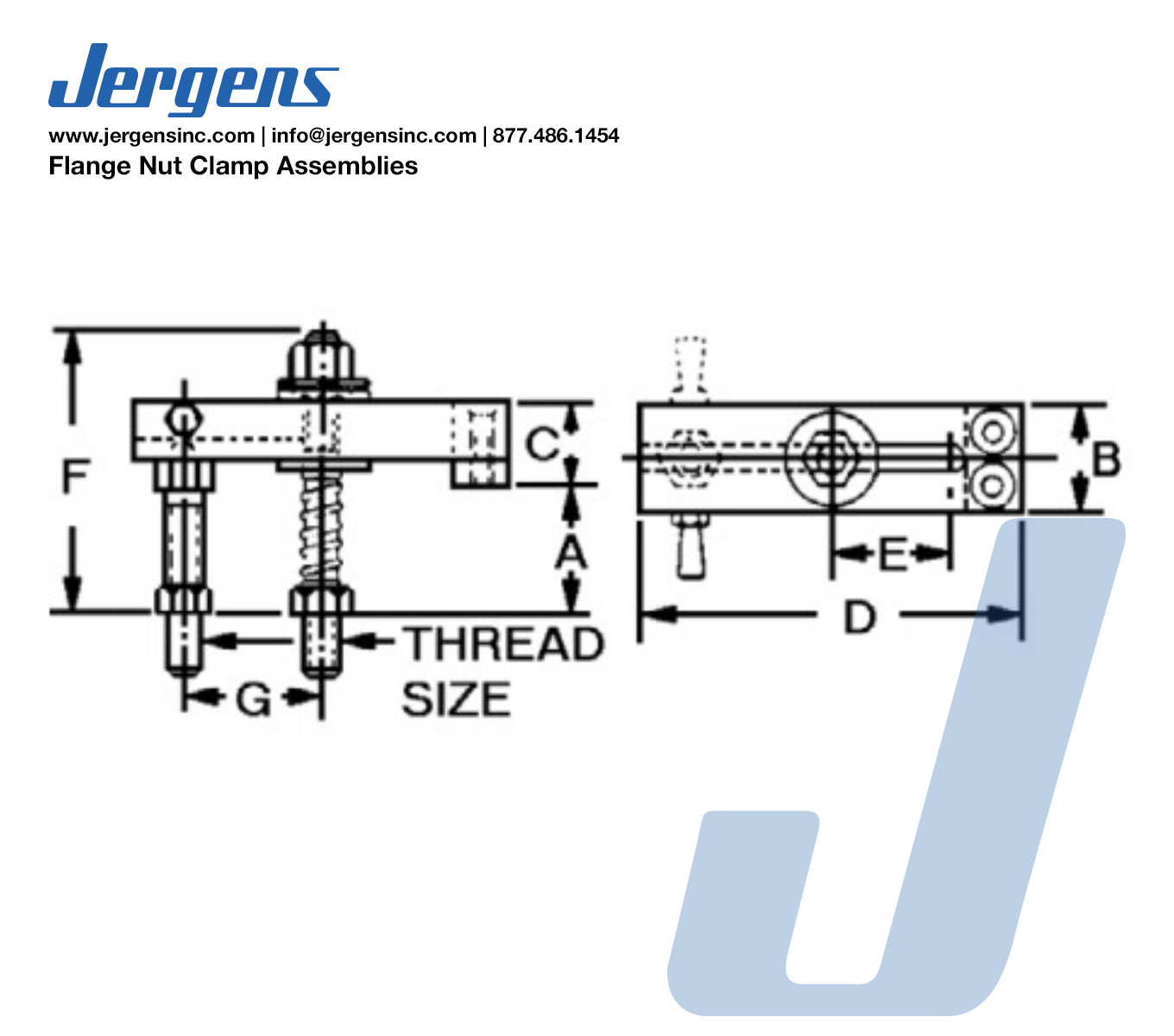

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | Thread Size | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12701 |
|
Inch | 3/4 | 5/8 | 1/2 | 2 | 5/8 | 1 5/8 | 7/8 | 1/4-20 | 0.27 |
| 12703 |
|
Inch | 1 1/2 | 1 1/4 | 7/8 | 3 1/2 | 1 1/8 | 2 15/16 | 1 7/16 | 3/8-16 | 1.12 |
| 12705 |
|
Inch | 1 1/2 | 1 1/4 | 7/8 | 4 1/2 | 1 5/8 | 2 15/16 | 1 15/16 | 3/8-16 | 1.38 |
| 12707 |
|
Inch | 1 1/8 | 1 1/2 | 1 1/8 | 4 1/2 | 1 1/4 | 3 | 2 1/8 | 1/2-13 | 2.12 |
| 12710 |
|
Inch | 1 1/8 | 1 1/2 | 1 1/8 | 6 | 2 | 3 | 2 7/8 | 1/2-13 | 2.62 |
| 12711 |
|
Inch | 2 5/8 | 1 3/4 | 1 3/8 | 5 | 1 1/2 | 5 1/16 | 2 1/8 | 5/8-11 | 3.50 |
| 12713 |
|
Inch | 2 5/8 | 1 3/4 | 1 3/8 | 7 | 2 1/2 | 5 1/16 | 3 1/8 | 5/8-11 | 4.12 |
| 12714 |
|
Inch | 1 3/4 | 1 3/4 | 1 1/2 | 5 | 1 1/2 | 4 3/8 | 2 1/8 | 3/4-10 | 4.12 |
| 12716 |
|
Inch | 1 3/4 | 1 3/4 | 1 1/2 | 7 | 2 1/2 | 4 3/8 | 3 1/8 | 3/4-10 | 4.87 |
