Fixture Jacks
Jergens Fixture Jacks feature a positive locking design for irregular clamping to achieve various heights requiring a positive pressure stop. Adjustable to fit height irregularities of milling operations. Available in either a smooth radius head or a hardened tool steel serrated gripping surface. Elevates vertically, with no rotation. The outer diameter of the bushing ground for press-fit.
Features, Benefits, & Product Specifications:
-
Bushing: Low Carbon Steel, Case Hardened 74-77 R30N
-
Radius Stem: Low Carbon Steel, Case Hardened
-
Serrated Stem 4140 Alloy Steel, RC 45-48
-
Finish: All components are Black Oxidized
Fixture Jacks
Select a part number for CAD drawings, price and stock availability.

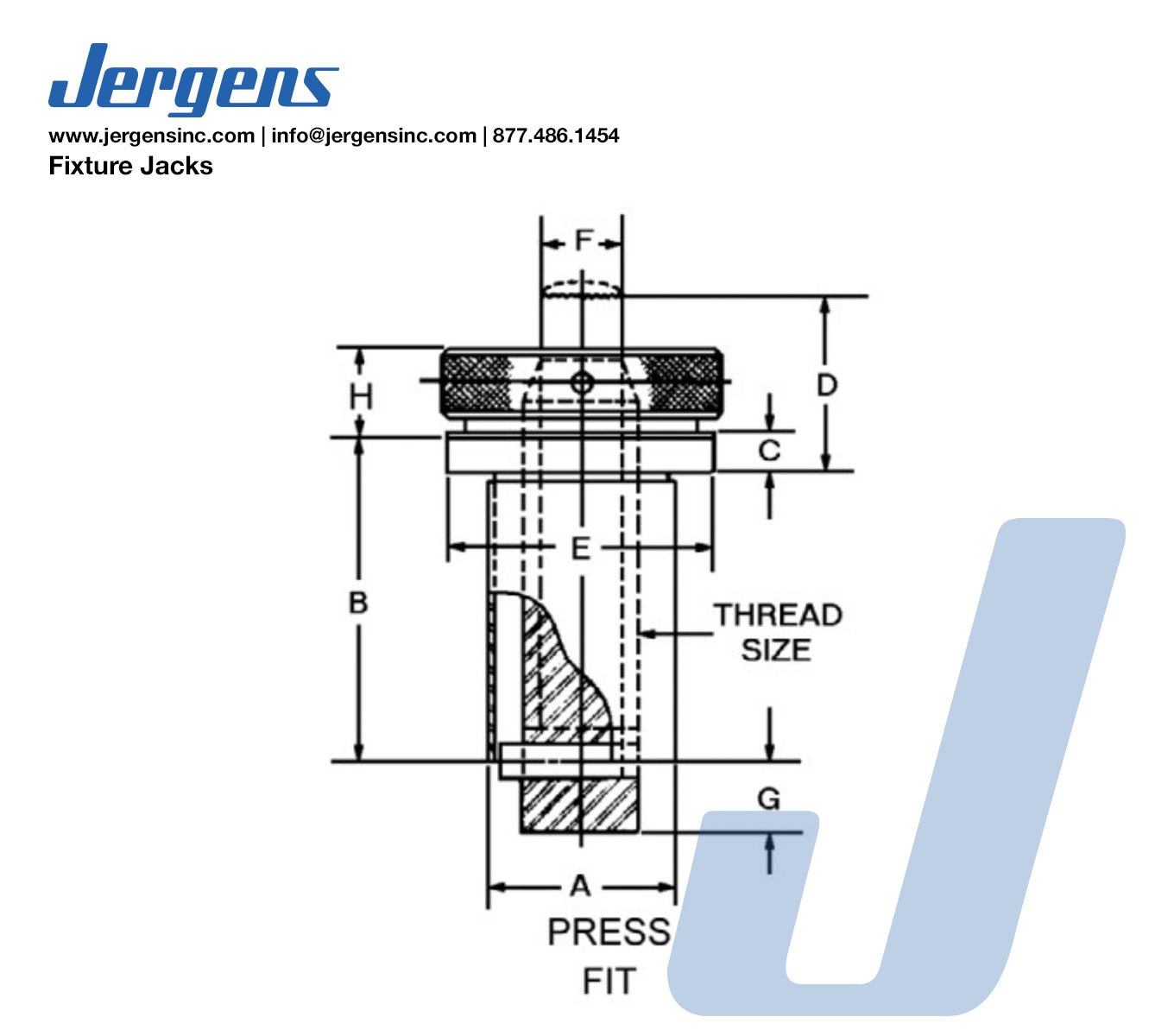

| Part Number | CAD | Unit | Type | Press Fit A (In) | B (In) | C (In) | D Minimum (In) | D Maximum (In) | E (In) | F (In) | G (In) | H (In) | Thread Size | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24901 |
|
Inch | Radius | 5/8 | 1 3/16 | 3/16 | 9/16 | 1 1/2 | 1 | 1/4 | 5/32 | 3/8 | 3/8-16 | 0.19 |
| 24902 |
|
Inch | Radius | 1 | 1 5/8 | 3/16 | 7/8 | 2 7/16 | 1 5/16 | 15/32 | 7/16 | 7/16 | 5/8-11 | 0.55 |
| 24903 |
|
Inch | Radius | 1 1/2 | 2 3/4 | 3/16 | 7/8 | 3 1/2 | 1 3/4 | 13/16 | 1/2 | 9/16 | 1-8 | 1.90 |
| 25101 |
|
Inch | Serrated | 5/8 | 1 3/16 | 3/16 | 9/16 | 1 1/2 | 1 | 1/4 | 5/32 | 3/8 | 3/8-16 | 019 |
| 25102 |
|
Inch | Serrated | 1 | 1 5/8 | 3/16 | 7/8 | 2 7/16 | 1 5/16 | 15/32 | 7/16 | 7/16 | 5/8-11 | 0.55 |
| 25103 |
|
Inch | Serrated | 1 1/2 | 2 3/4 | 3/16 | 7/8 | 3 1/2 | 1 3/4 | 13/16 | 1/2 | 9/16 | 1-8 | 1.90 |
