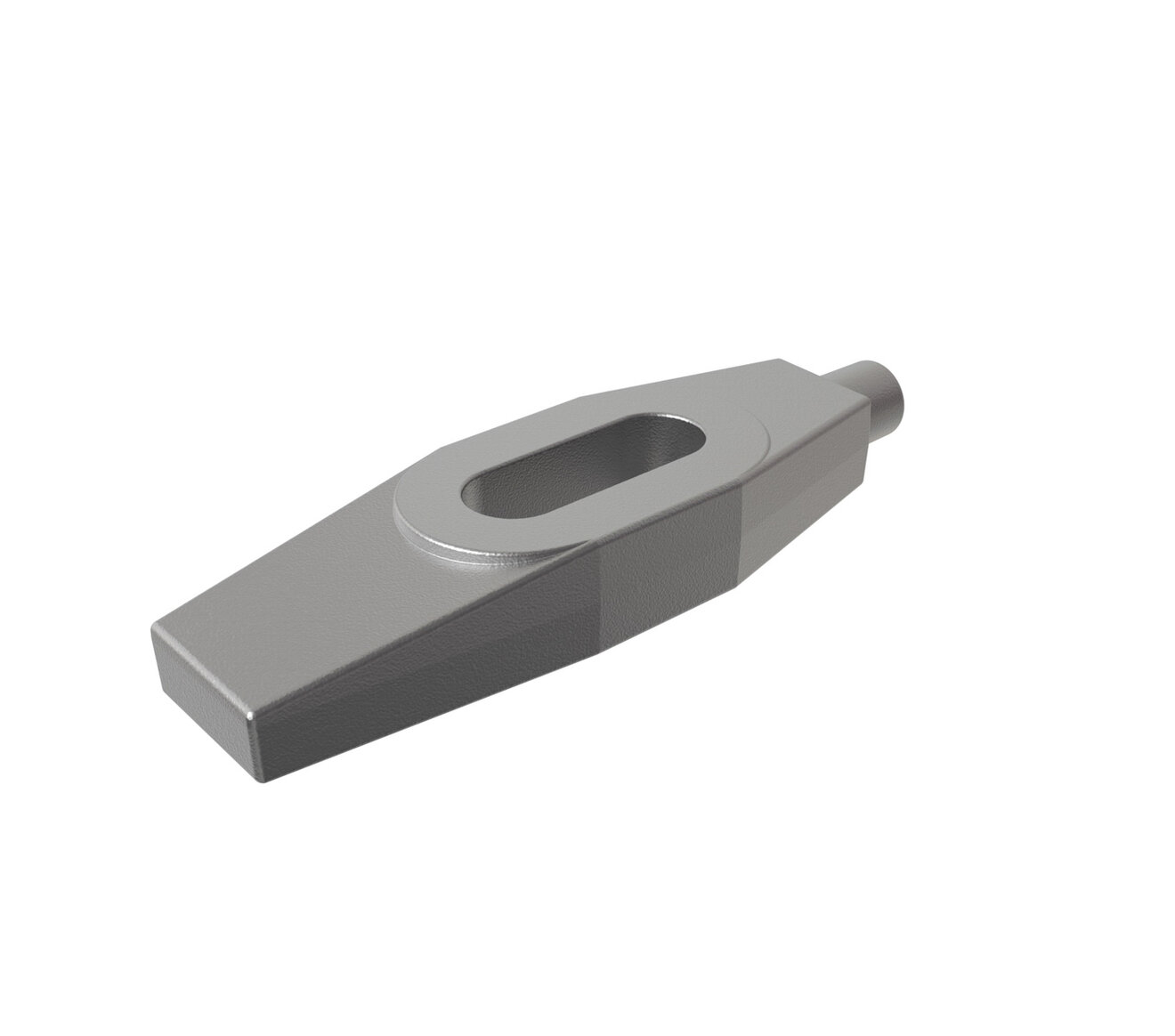

Finger Forged Strap Clamps
With one of the largest selections available, Jergens Workholding Components have everything you need to design and build fixtures, jigs, and other workholding devices.
Features, Benefits, & Product Specifications:
-
Materials: Available in C-1030 Steel or C-1035 Steel
Finger Forged Strap Clamps
Select a part number for CAD drawings, price and stock availability.

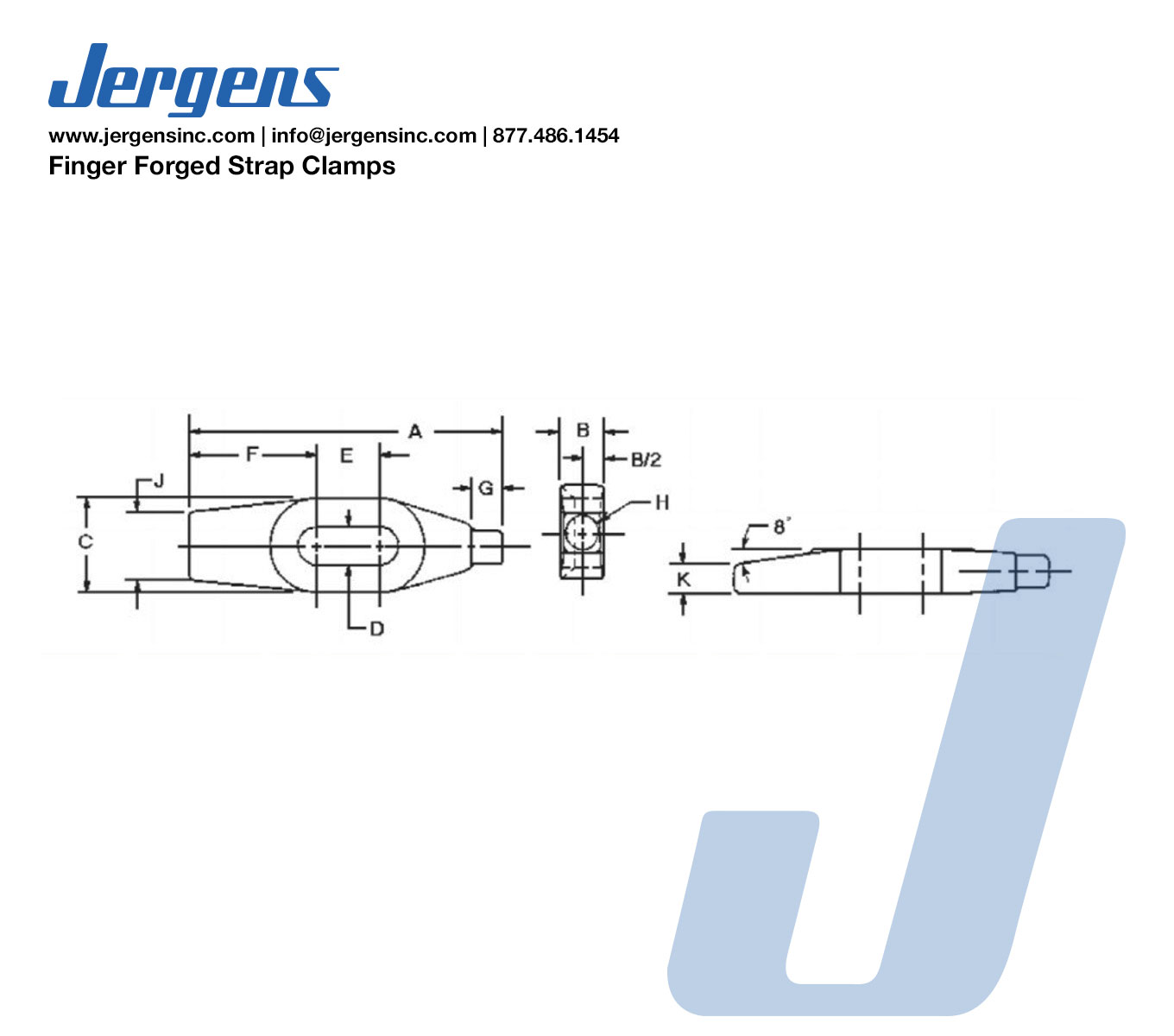

| Part Number | CAD | Unit | Bolt Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 37221 |
|
Metric | M16 | 100 | 19 | 41 | 17 | 17 | 42 | 13 | 13 | 30 | 11 | 0.40 |
| 37223 |
|
Metric | M16 | 150 | 22 | 44 | 17 | 32 | 59 | 16 | 16 | 32 | 13 | 0.81 |
| 37225 |
|
Metric | M19 | 200 | 29 | 54 | 21 | 44 | 79 | 19 | 19 | 38 | 16 | 1.6 |
| Part Number | CAD | Unit | Bolt Size | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | J (In) | K (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 37221 |
|
Inch | 5/8 or M16 | 4 | 3/4 | 1 5/8 | 11/16 | 11/16 | 1 21/32 | 1/2 | 1/2 | 1 3/16 | 7/16 | 0.75 |
| 37223 |
|
Inch | 5/8 or M16 | 6 | 7/8 | 1 3/4 | 11/16 | 1 1/4 | 2 3/8 | 5/8 | 5/8 | 1 1/4 | 1 1/4 | 1.50 |
| 37225 |
|
Inch | 3/4 or M20 | 8 | 1 1/8 | 2 1/8 | 13/16 | 1 3/4 | 3 1/8 | 3/4 | 3/4 | 1 1/2 | 1 1/2 | 3.00 |
