Eye Nuts
Jergens Eye Nuts are for use in vertical pull only.
- Material: C1030 Forge
- ASTM A105
Eye Nuts
Select a part number for CAD drawings, price and stock availability.

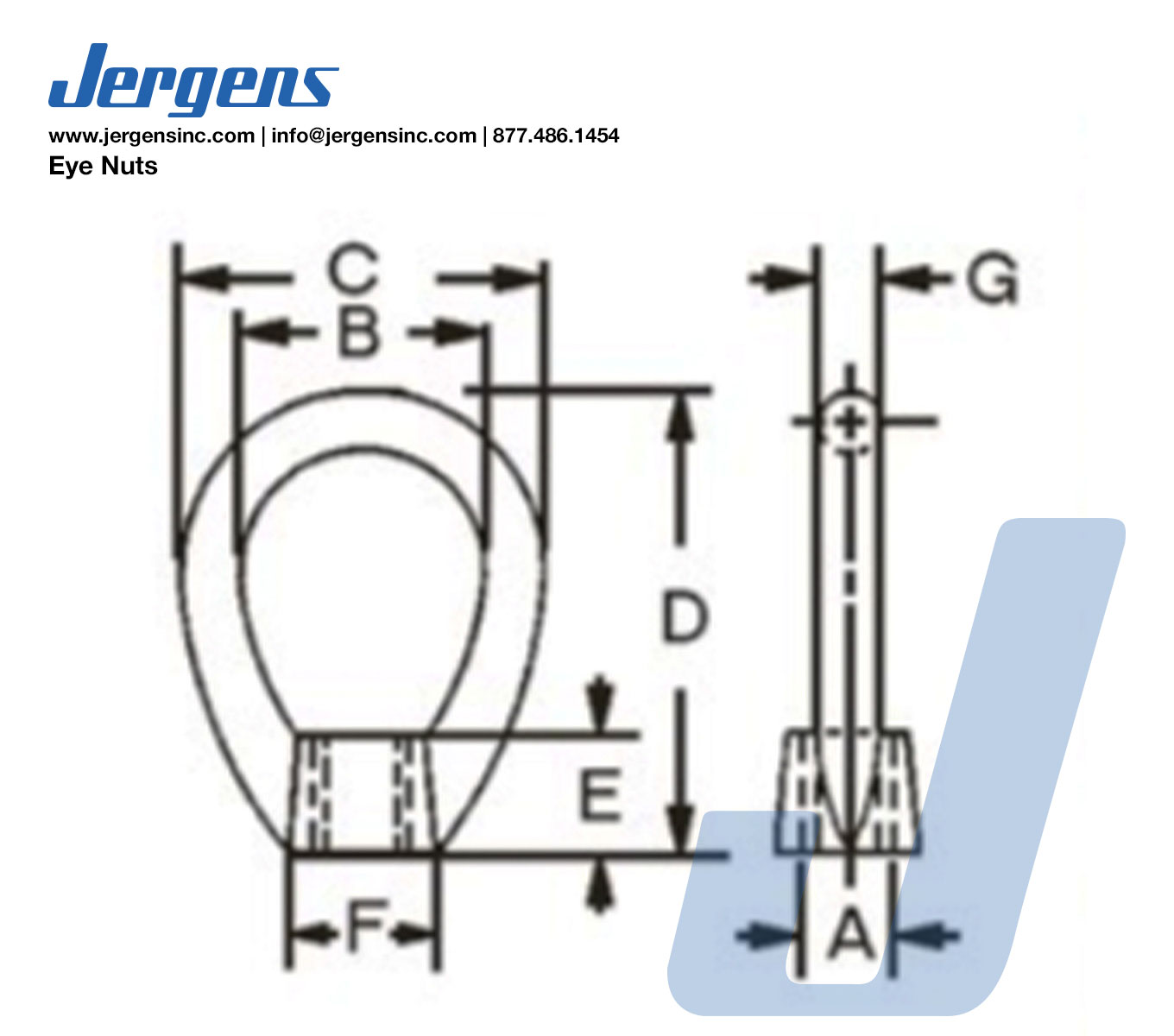

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | Load Capacity (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 18900 |
|
Inch | - | 1 1/4 | 2 | 2 1/2 | 5/8 | 7/8 | 3/8 | 2700 | 0.22 |
| 18901 |
|
Inch | 3/8-16 | 1 1/4 | 2 | 2 1/2 | 5/8 | 7/8 | 3/8 | 2700 | 0.22 |
| 18902 |
|
Inch | 1/2-13 | 1 1/4 | 2 | 2 1/2 | 5/8 | 7/8 | 3/8 | 2700 | 0.22 |
| 18903 |
|
Inch | 5/8-11 | 1 1/2 | 2 1/2 | 3 | 3/4 | 1 3/8 | 1/2 | 5000 | 0.50 |
| 18904 |
|
Inch | 3/4-10 | 1 1/2 | 2 1/2 | 3 | 3/4 | 1 3/8 | 1/2 | 5000 | 0.50 |
| 18905 |
|
Inch | - | 1 1/2 | 2 1/2 | 3 | 3/4 | 1 3/8 | 1/2 | 5000 | 0.50 |
