Ergostyle® Wing Nuts by ELESA®

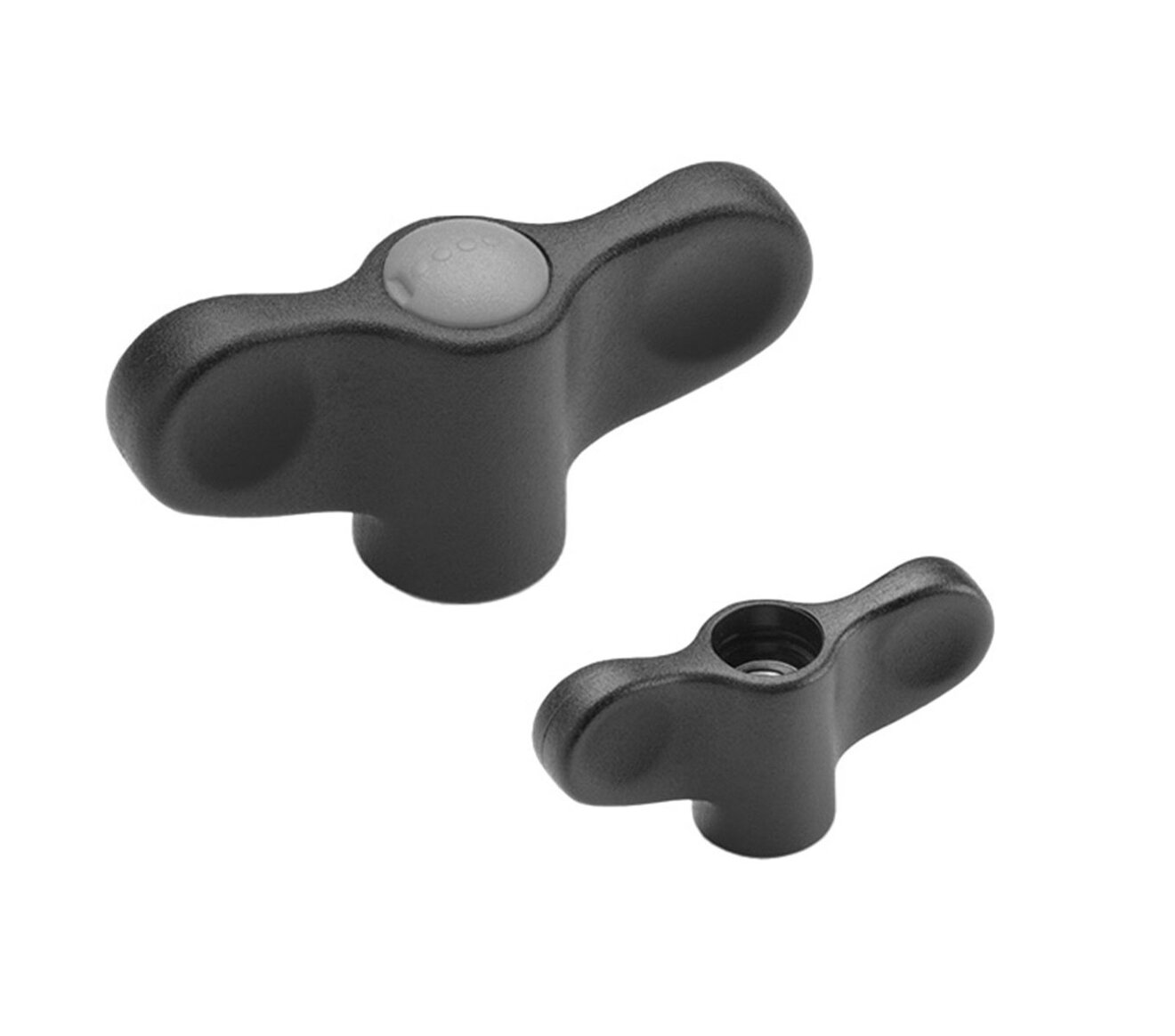

Jergens Ergostyle® Wing Nuts by ELESA® have a wing-shaped head with varying execution, designed to allow high tightening torque values.
Features, Benefits, & Product Specifications:
-
Material: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
-
Finish: Gray/Black Matte
-
Insert: Brass Insert, threaded pass-through hole, with cap
-
Resistant to solvents, oils, greases, and other chemical agents
-
Optional cap colors available upon request (Black, Gray, Yellow, Blue, & Red)
Documents
Ergostyle® Wing Nuts by ELESA®

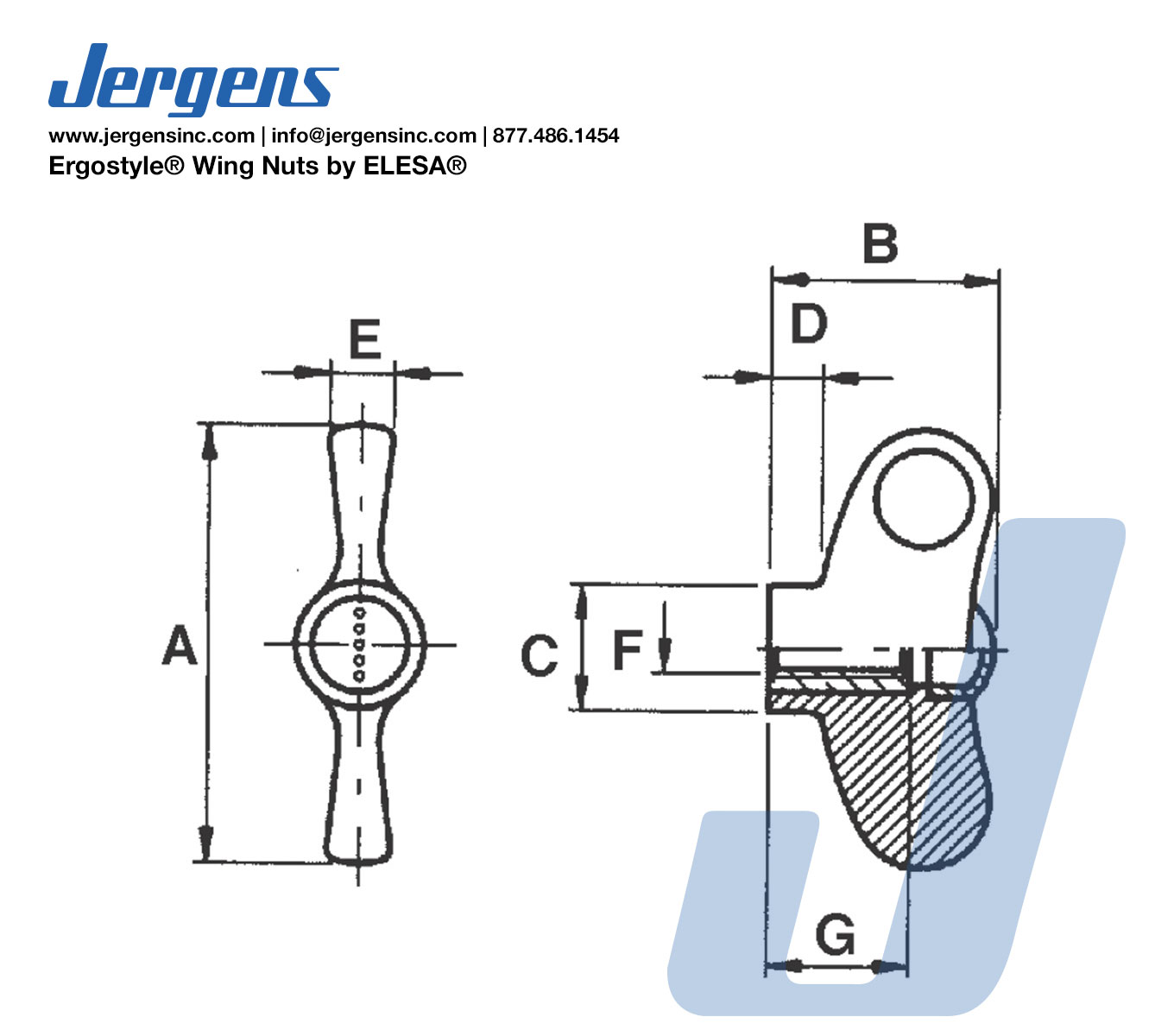

Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F | G (In) |
---|---|---|---|---|---|---|---|---|---|
34450 | Inch | 2.17 | 1.10 | 0.63 | 0.26 | 0.31 | 1/4-20 | 0.71 | |
34451 | Inch | 2.17 | 1.10 | 0.63 | 0.26 | 0.31 | 5/16-18 | 0.71 | |
34452 | Inch | 2.76 | 1.42 | 0.79 | 0.31 | 0.39 | 5/16-18 | 0.79 | |
34453 | Inch | 2.76 | 1.42 | 0.79 | 0.31 | 0.39 | 3/8-16 | 0.79 |
