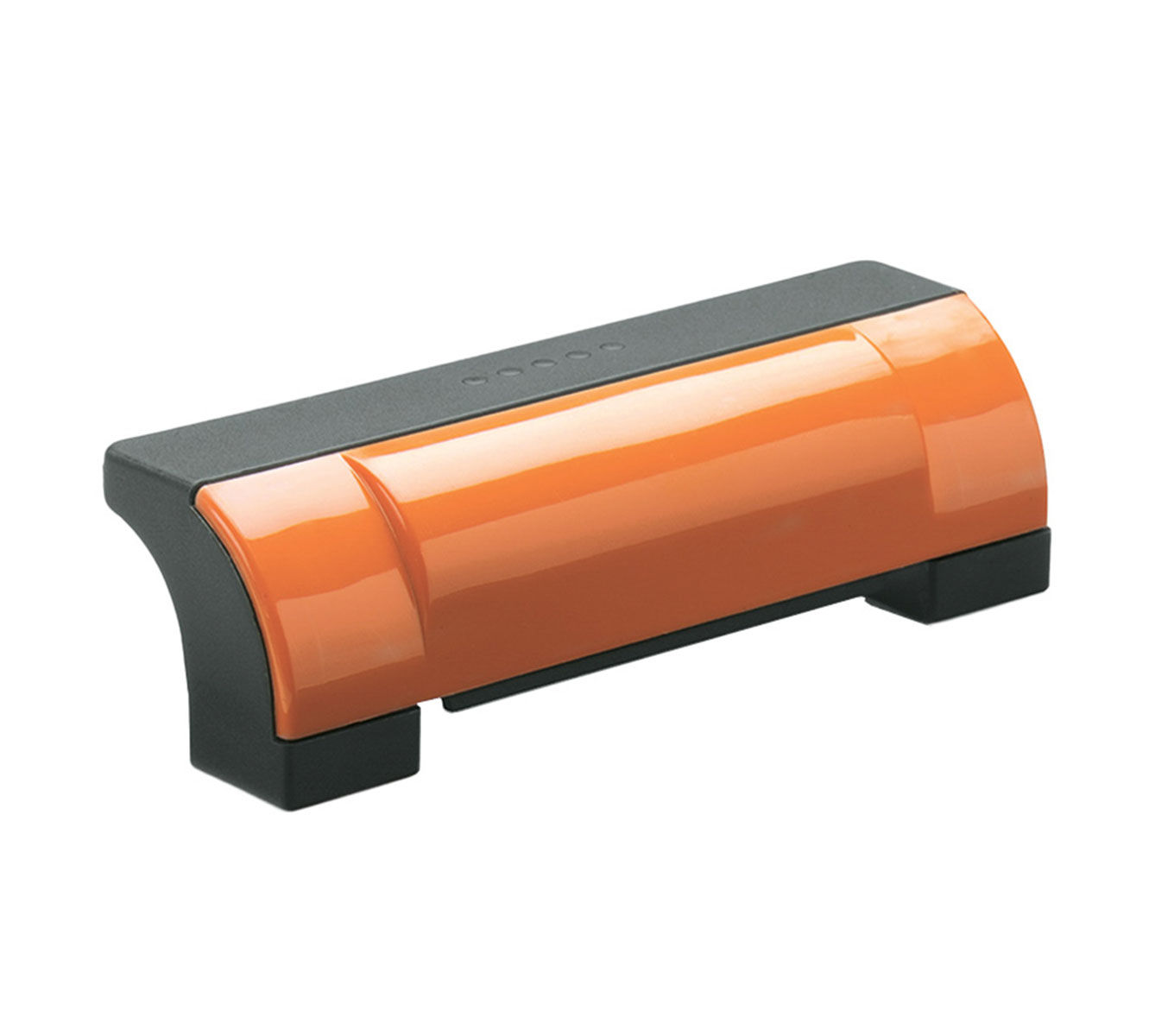

Ergostyle® Machine Guard Handles by ELESA®
Jergens Ergostyle® Machine Guard Handles by ELESA® are ideal for use on sliding shelves, pull-outs, access doors and drawers. These handles reduce the risk of injury ensuring that the user’s fingers are protected when opening and closing doors.
Features, Benefits, & Product Specifications:
-
Handle Material: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
-
Handle Finish & Color: Matte, Grey/Black
-
Screw Cover Material: Polyester-Based Technopolymer
-
Screw Cover Finish & Color: Glossy, Orange
-
Mounting Styles:
-
CH: Cylindrical Socket Head
-
SH: Countersunk Head Self-Tapping Screws (use 1/4-20 screws)
-
-
Optional cap colors available upon request (Black, Grey, Yellow, Blue & Red)
-
Resistant to solvents, oils, greases, and other chemical agents
Ergostyle® Machine Guard Handles by ELESA®
Select a part number for CAD drawings, price and stock availability.

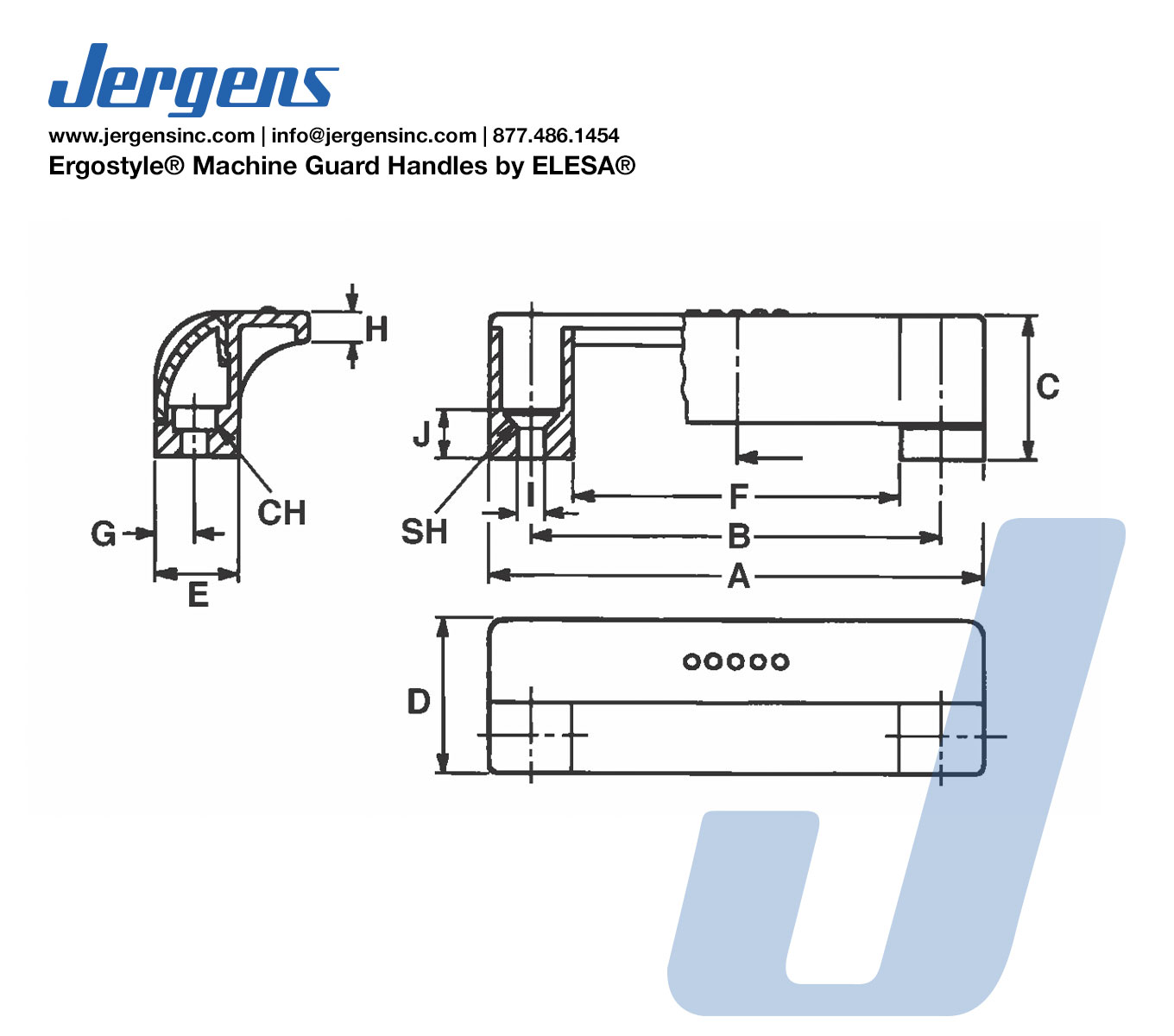

| Part Number | CAD | Unit | Mounting Style | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I (In) | J (In) | Open Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 34240 |
|
Inch | CH | 4.49 | 3.68 | 1.30 | 1.38 | 0.75 | 2.91 | 0.37 | 0.28 | 0.26 | 0.43 | No |
| 34241 |
|
Inch | SH | 4.49 | 3.68 | 1.30 | 1.38 | 0.75 | 2.91 | 0.37 | 0.28 | 0.26 | 0.43 | No |
| 34242 |
|
Inch | CH | 4.49 | 3.68 | 1.30 | 1.38 | 0.75 | 2.91 | 0.37 | 0.28 | 0.26 | 0.43 | Yes |
| 34243 |
|
Inch | SH | 4.49 | 3.68 | 1.30 | 1.38 | 0.75 | 2.91 | 0.37 | 0.28 | 0.26 | 0.43 | Yes |
