Ergostyle® Front Mounted Bridge Handles by ELESA®

Jergens Ergostyle® Front Mounted Bridge Handles by ELESA® are built durable and comfortable for use as door pull handles for industrial machinery and equipment and in industries such as tooling, construction, food and drink, chemical, and pharmaceutical.
Features, Benefits, & Product Specifications:
  • Handle & Cap Material: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
  • Handle & Cap Finish & Color: Matte, Gray/Black
  • Mounted by (2) through holes in front
  • Caps are supplied, feature a press-fit assembly, and are removable by a screwdriver
  • Optional cap colors available upon request (Black, Grey, Yellow, Orange, Blue, & Red)
  • Resistant to solvents, oils, greases, and other chemical agents

Documents

Ergostyle® Front Mounted Bridge Handles by ELESA®

Ergostyle® Front Mounted Bridge Handles by ELESA® part number 34467
  • Ergostyle® Front Mounted Bridge Handles by ELESA® part number 34467

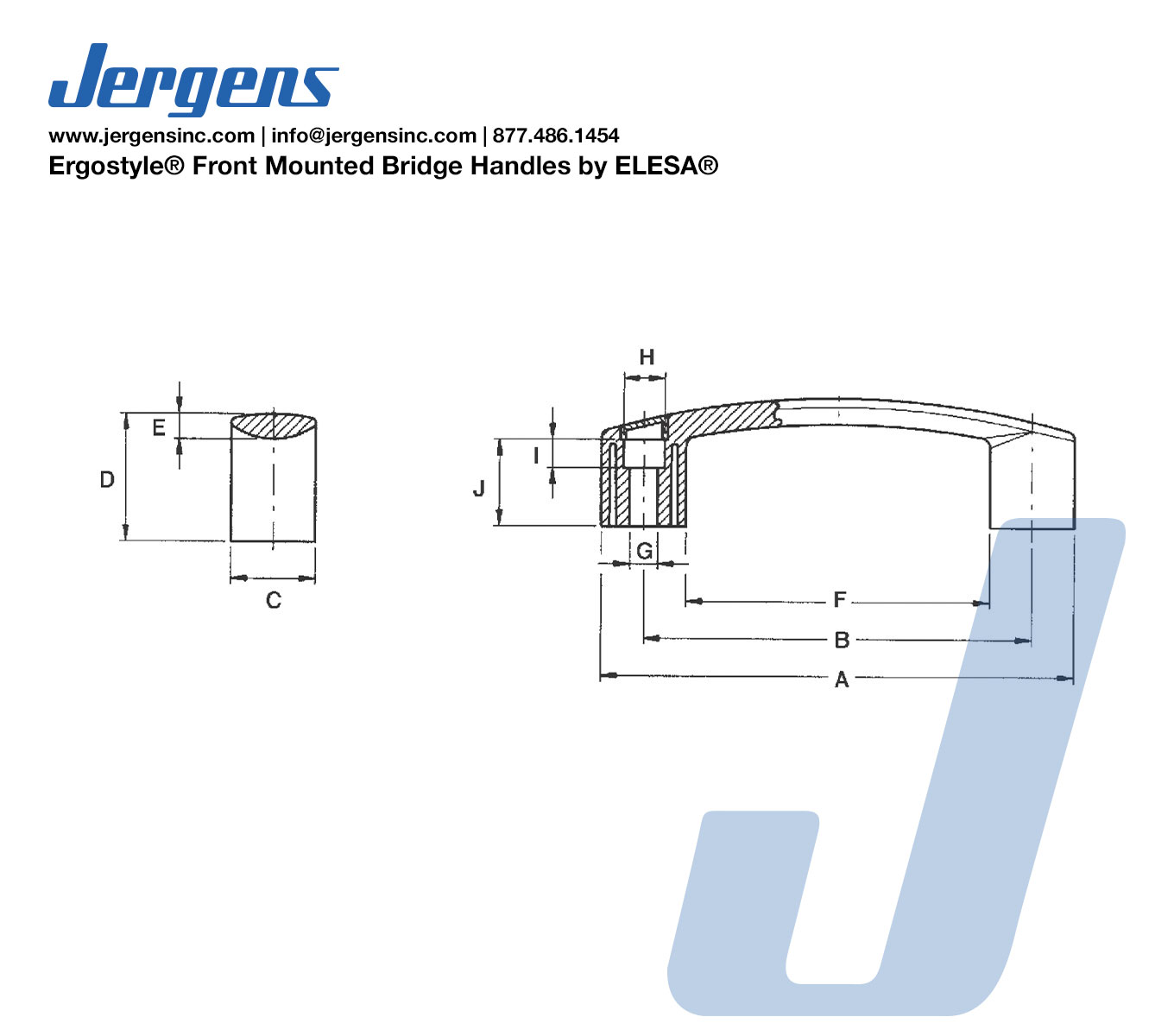

  • Line Art 34467 HANDLE, FRONT MT, BLACK, 4.57

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit A (In) B (In) C (In) D (in) E (in) F (in) G (in) H (in) I (in) J (in)
34467 icon_cad Inch 4.57 3.68 0.87 1.38 0.29 2.83 0.25 0.41 0.25 0.92
34468 icon_cad Inch 5.67 4.61 1.02 1.54 0.31 3.62 0.33 0.53 0.33 1.04
34479 icon_cad Inch 7.01 5.91 1.10 1.77 0.37 4.80 0.33 0.53 0.55 1.26
