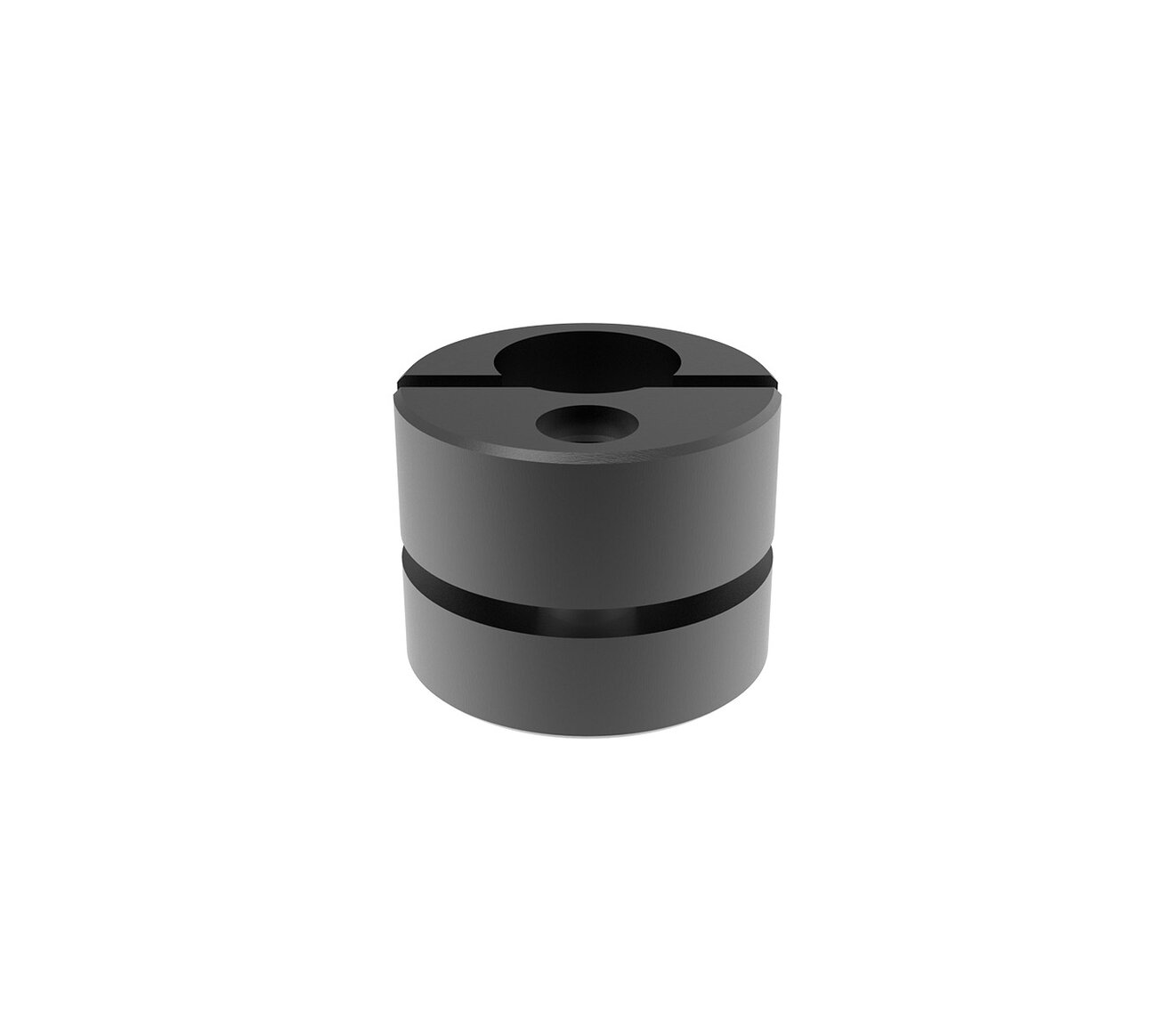

Eccentric Liners

Jergens Eccentric Liners allow for adjustment of spring pin tension due to part material variations, different tolerance requirements, or force adjustment.

Features, Benefits, & Product Specifications:
  • Material: Blackened Steel
  • RoHS compliant


Documents

Eccentric Liners

Eccentric Liners
  • Eccentric Liners

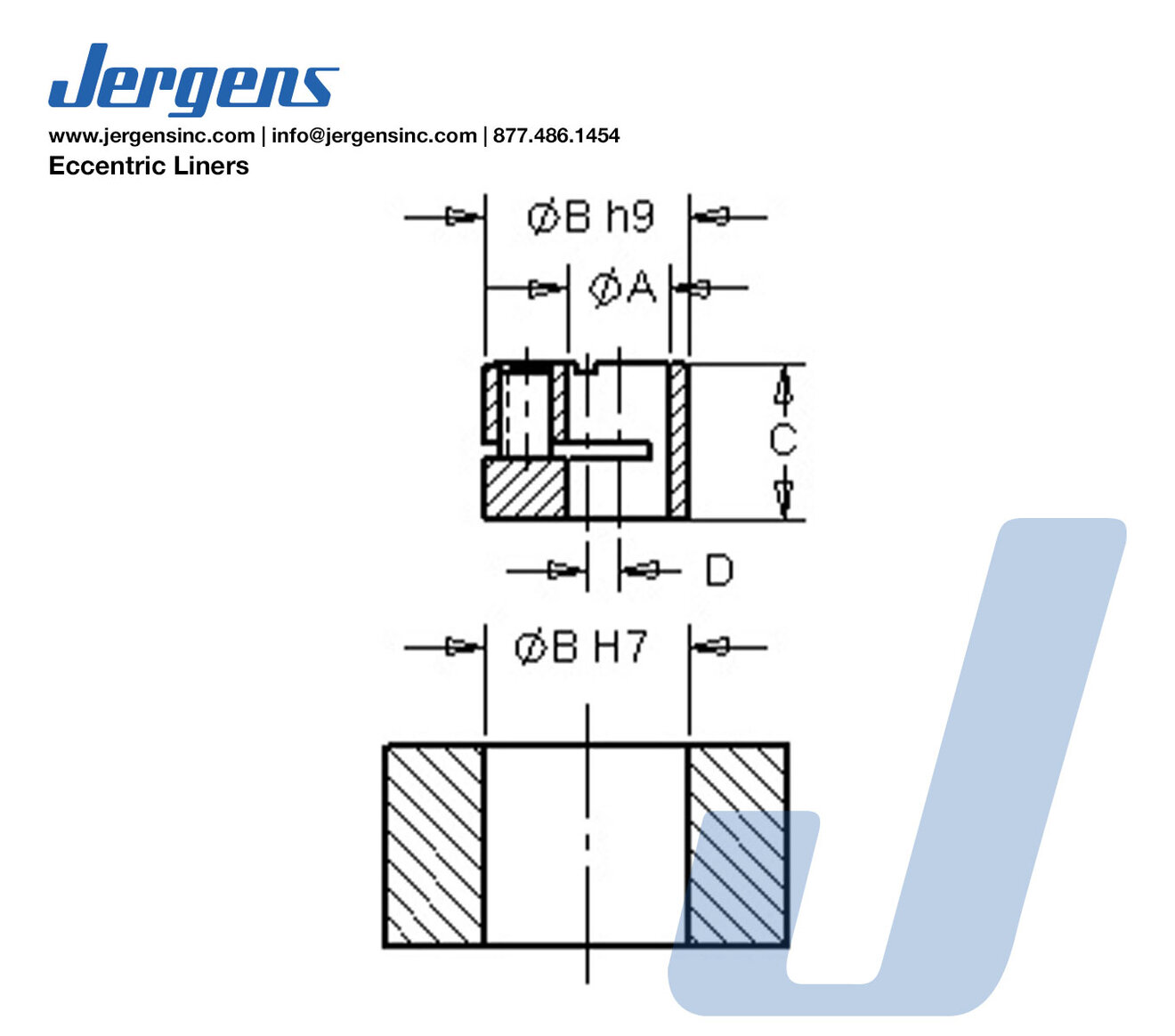

  • Line Art Eccentric Liners

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit A (In) B (In) C (In) D (in)
36291 icon_cad Inch 0.250 0.500 0.390 0.079
36292 icon_cad Inch 0.438 0.687 0.469 0.079
36293 icon_cad Inch 0.500 0.750 0.547 0.079
36294 icon_cad Inch 0.625 1.000 0.705 0.118
