Dovetail Bolts
Jergens Dovetail Bolts can be used for clamping guide members on the front of press brakes.
Features, Benefits, & Product Specifications:
-
Material: Alloy Steel
-
Finish: Black Oxide
-
Heat Treat: RC 34-38
-
Thread: 2A-UNC
Dovetail Bolts

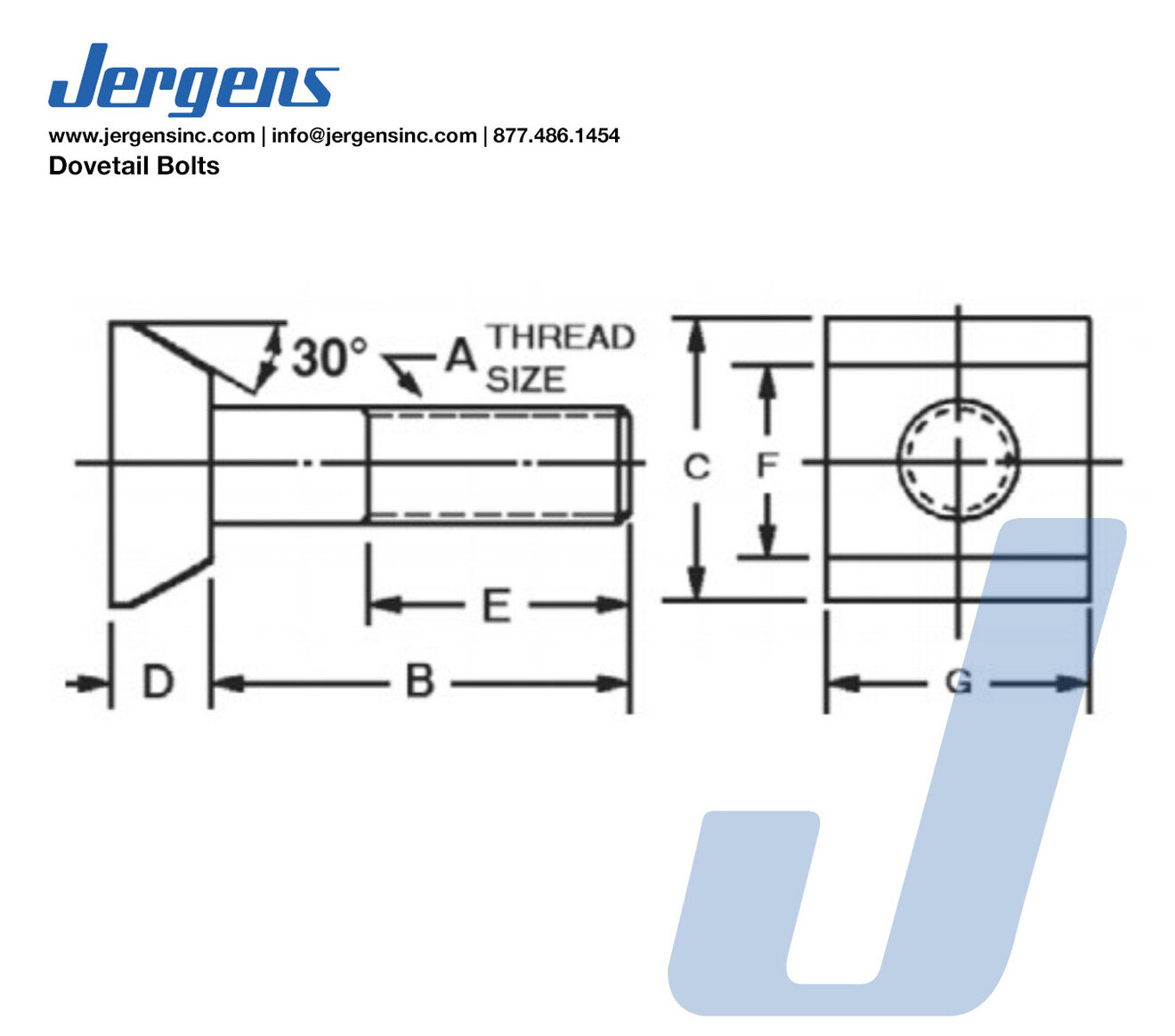

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Thread Size A | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | Weight 10 Pieces (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 17901 |
|
Inch | 5/8-11 | 1 1/4 | 1 1/16 | 3/8 | 3/4 | 3/4 | 1 1/8 | 2.00 |
| 17902 |
|
Inch | 5/8-11 | 2 | 1 1/16 | 3/8 | 1 1/8 | 3/4 | 1 1/8 | 2.30 |
| 17903 |
|
Inch | 5/8-11 | 2 3/4 | 1 1/16 | 3/8 | 1 1/2 | 3/4 | 1 1/8 | 3.10 |
| 17904 |
|
Inch | 5/8-11 | 3 3/4 | 1 1/16 | 3/8 | 1 1/2 | 3/4 | 1 1/8 | 5.15 |
