Double End Radius Straps

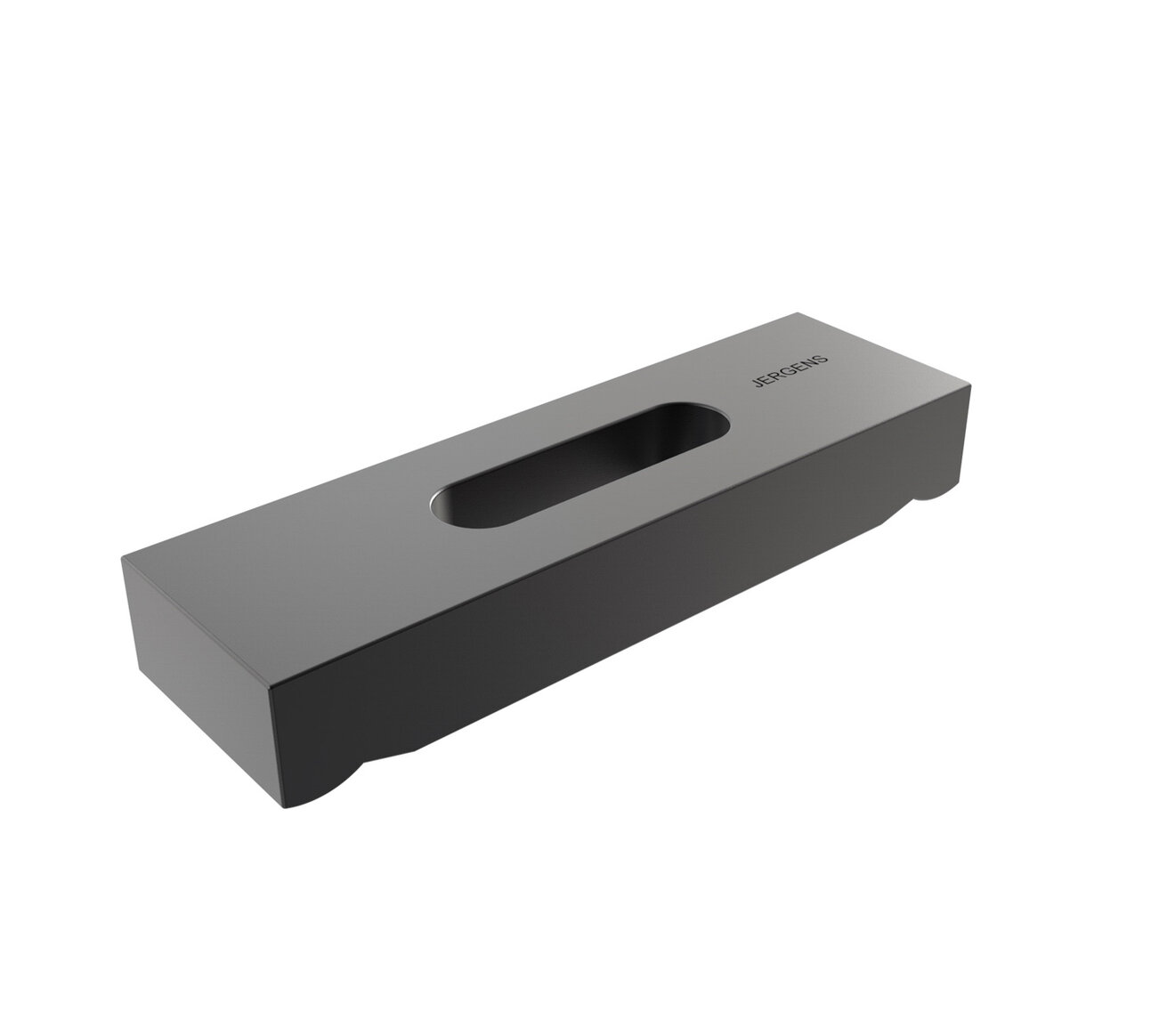

Jergens Double End Radius Straps feature two identical clamping ends for holding two workpieces simultaneously. For clear loading, turn the strap 90°.

Features, Benefits, & Product Specifications:
  • Material: Low Carbon Steel
  • Finish: Black Oxide
  • Heat Treat: Case Hardened Rockwell 30N Scale 59-69


Documents

Double End Radius Straps

Double End Radius Straps
  • Double End Radius Straps

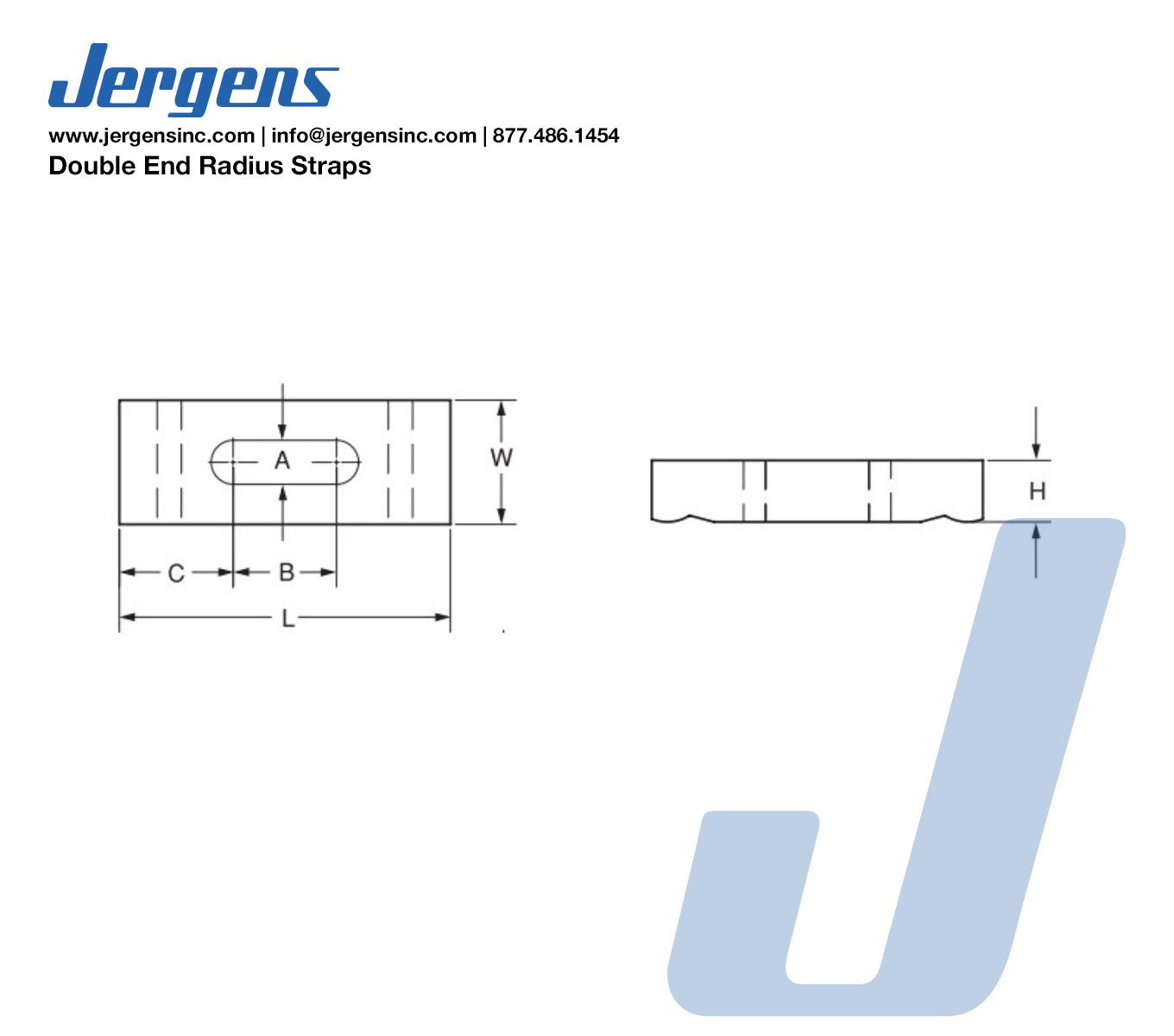

  • Line Art 36728 STRAP CLAMP, 1/2 X 1-1/2, MIN RADIUS NOSE

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Bolt Size A (In) B (In) C (In) W (in) H (in) L (in) Weight (lbs)
36728 icon_cad Inch 1/2 or M12 17/32 1 1/4 1 3/8 1 1/2 3/4 4 0.80
36729 icon_cad Inch 1/2 or M12 17/32 1 1/2 1 3/4 1 1/2 3/4 5 1.25
36730 icon_cad Inch 5/8 or M16 21/32 1 1/2 2 1/4 1 3/4 7/8 6 2.20
