Double Cams

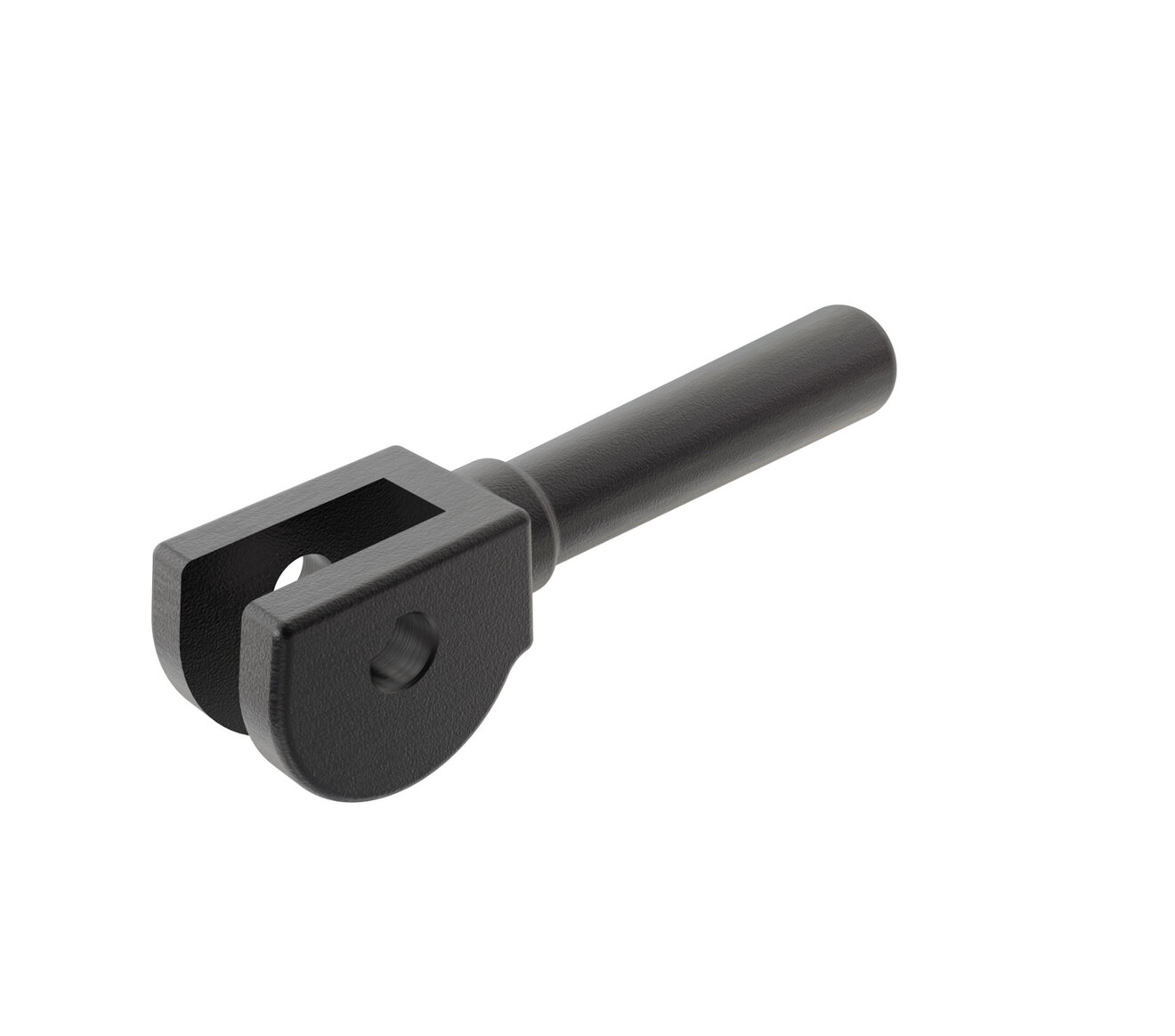

Jergens Double Cams are forged and heat-treated for abrasion resistance and longer life. Designed for quick change clamping, which requires greater holding pressures than are available with single cams. Mean clamping point pressure angle is from 3 1/2° to 4°, which makes for stronger workholding.
Features, Benefits, & Product Specifications:
-
Material & Finish: C1020 Low Carbon Steel, Black Oxide
-
Heat Treat: Case Hardened 74-77 R30N
-
Slip standard pipe over the handle for more leverage
-
Snug fit at handle collar and end.
Double Cams

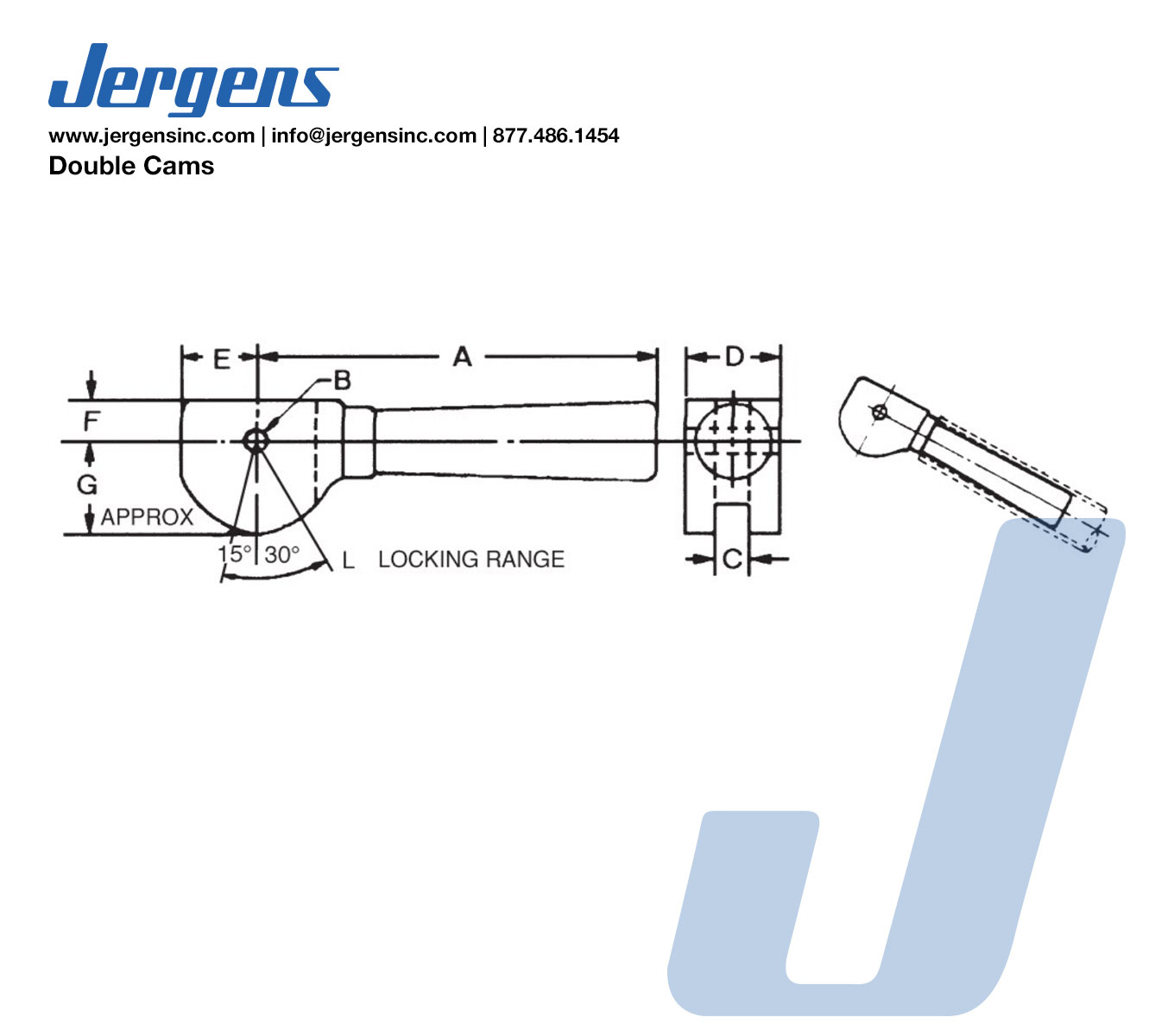

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | L (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 18101 |
|
Inch | 2 1/2 | 3/16 | 17/64 | 5/8 | 3/8 | 7/32 | 7/16 | 0.015 | 0.14 |
| 18102 |
|
Inch | 3 7/16 | 5/16 | 25/64 | 7/8 | 19/32 | 21/64 | 21/32 | 0.019 | 0.34 |
| 18103 |
|
Inch | 5 | 3/8 | 33/64 | 1 1/8 | 5/8 | 7/16 | 47/64 | 0.031 | 0.83 |
| 18104 |
|
Inch | 5 1/16 | 5/8 | 41/64 | 1 1/4 | 7/8 | 19/32 | 1 1/32 | 0.043 | 1 |
