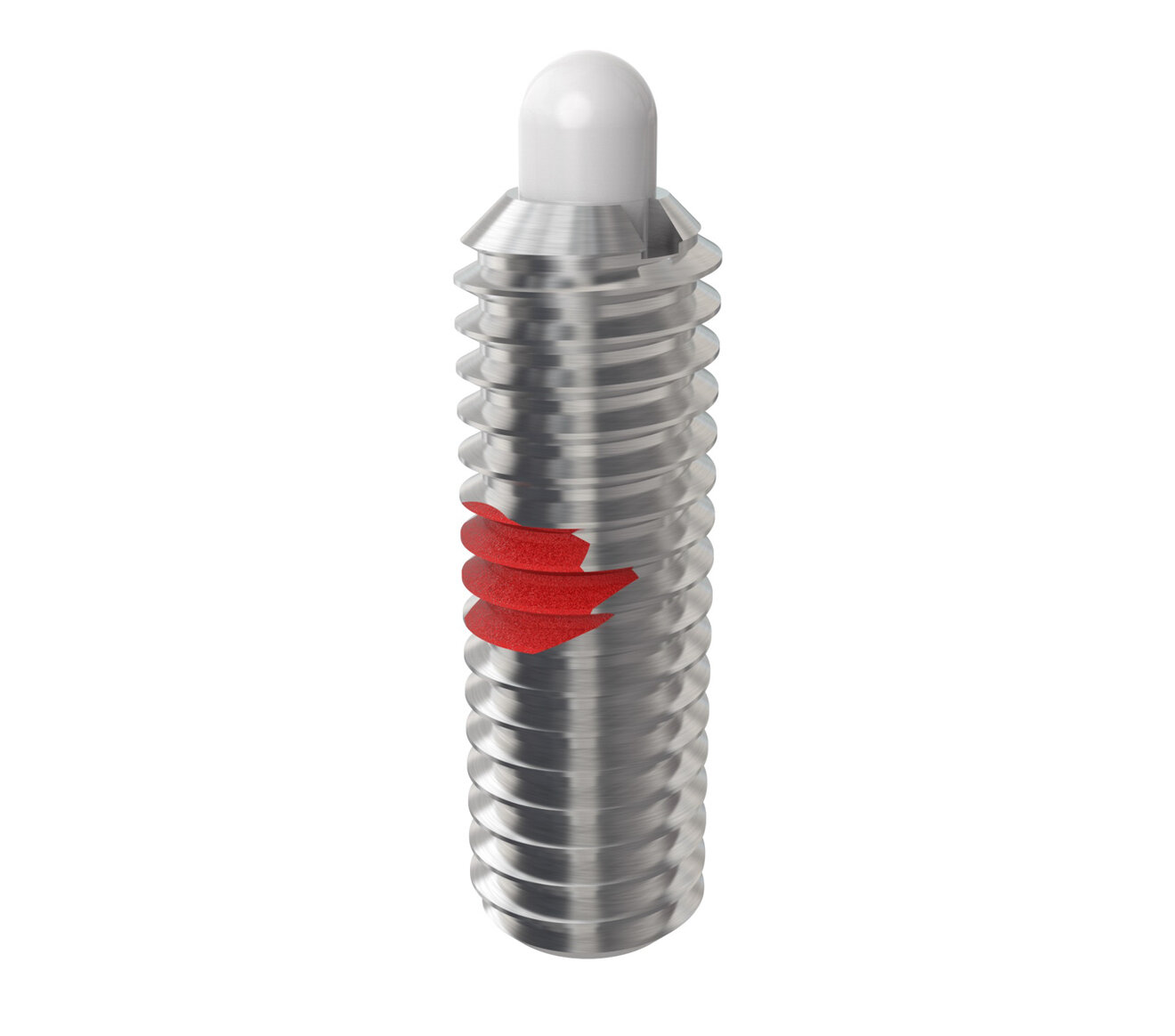

Delrin Tip / Stainless Steel Spring Plungers
Jergens Spring Plungers, unlike conventional spring plungers, are machined in one piece. The spring is assembled from the top so that there is no need for a set screw. Our Spring Plungers do not have a set screw that can loosen or separate from the plunger body. The advantage is no lost springs and no need for “easy-out” tools. When adjusting Solid Drive, you can be sure the plunger body is turning and not a set screw.
Features & Benefits:
-
Single-unit construction for better reliability
- No set screw to separate from the plunger body
-
No need for “easy-out” tools
-
Close tolerance between tip and body
-
Conforms to TCMA dimensional standards
-
Patch-style locking element
-
Hex drive in the rear for spring plunger insertion
-
Special materials and sizes available upon requests
Material Specifications:
-
Body Material: Low Carbon Steel
-
Body Finish: Black Oxide
-
Tip Material: Delrin
-
Thread: 2A-UNC
-
Plunger tips are color coded to indicate light or heavy force:
-
White: Delrin Tip, Light Force
-
Blue: Delrin Tip, Heavy Force
-
Note(s):
For easy insertion of Spring Plungers with locking elements, the tapped hole should be countersunk at least 0.030-0.045" (0.76mm-1.14mm) larger than the major diameter of the plunger.

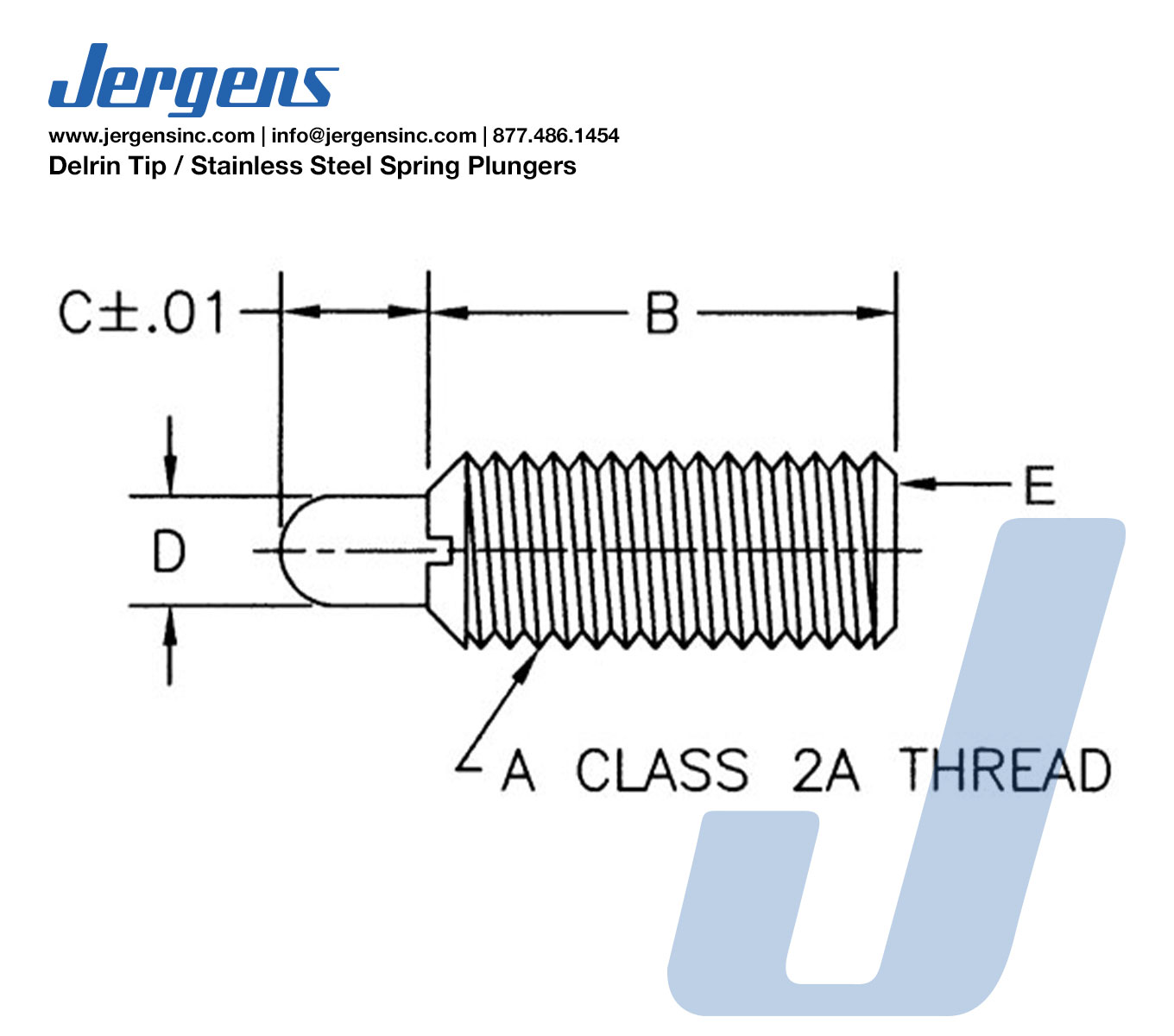

Delrin Tip-Stainless Steel Spring Plungers_LineArt
Delrin Tip / Stainless Steel Spring Plungers
| Part Number | CAD | Unit | Thread Size A | Initial Force (lbs) | Final Force (lbs) | B (In) | C (In) | D (in) | Hex Size E | Locking Element | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30500 |
|
Inch | 6-32 | 1.50 | 4.50 | 17/32 | 1/16 | 0.046 | 3/64 | No | |
| 30501 |
|
Inch | 8-32 | 2.70 | 7.30 | 5/8 | 3/32 | 0.070 | 5/64 | No | |
| 30502 |
|
Inch | 10-32 | 2.90 | 11.1 | 3/4 | 1/8 | 0.093 | 3/32 | No | |
| 30503 |
|
Inch | 1/4-20 | 3.00 | 13.0 | 1 | 3/16 | 0.119 | 1/8 | No | |
| 30504 |
|
Inch | 1/4-28 | 3.00 | 13.0 | 1 | 3/16 | 0.119 | 1/8 | No | |
| 30505 |
|
Inch | 5/16-18 | 3.00 | 15.0 | 1 | 3/16 | 0.135 | 5/32 | No | |
| 30506 |
|
Inch | 3/8-16 | 5.50 | 14.5 | 1 1/8 | 3/16 | 0.186 | 3/16 | No | |
| 30507 |
|
Inch | 1/2-13 | 6.60 | 17.4 | 1 1/4 | 1/4 | 0.248 | 1/4 | No | |
| 30508 |
|
Inch | 5/8-11 | 10.5 | 25.5 | 1 1/2 | 5/16 | 0.310 | 5/16 | No | |
| 30510 |
|
Inch | 6-32 | 0.50 | 1.50 | 17/32 | 1/16 | 0.046 | 3/64 | No | |
| 30511 |
|
Inch | 8-32 | 0.70 | 2.30 | 5/8 | 3/32 | 0.070 | 5/64 | No | |
| 30512 |
|
Inch | 10-32 | 1.30 | 2.70 | 3/4 | 1/8 | 0.093 | 3/32 | No | |
| 30513 |
|
Inch | 1/4-20 | 1.00 | 4.00 | 1 | 3/16 | 0.119 | 1/8 | No | |
| 30514 |
|
Inch | 1/4-28 | 1.00 | 4.00 | 1 | 3/16 | 0.119 | 1/8 | No | |
| 30515 |
|
Inch | 5/16-18 | 1.50 | 4.50 | 1 | 3/16 | 0.135 | 5/32 | No | |
| 30516 |
|
Inch | 3/8-16 | 2.80 | 7.20 | 1 1/8 | 3/16 | 0.186 | 3/16 | No | |
| 30517 |
|
Inch | 1/2-13 | 2.70 | 9.30 | 1 1/4 | 1/4 | 0.248 | 1/4 | No | |
| 30518 |
|
Inch | 5/8-11 | 3.50 | 10.5 | 1 1/2 | 5/16 | 0.310 | 5/16 | No | |
| 30536 |
|
Inch | 6-32 | 1.50 | 4.50 | 17/32 | 1/16 | 0.046 | 3/64 | Yes | |
| 30537 |
|
Inch | 8-32 | 2.70 | 7.30 | 5/8 | 3/32 | 0.070 | 5/64 | Yes | |
| 30538 |
|
Inch | 10-32 | 2.90 | 11.1 | 3/4 | 1/8 | 0.093 | 3/32 | Yes | |
| 30539 |
|
Inch | 1/4-20 | 3.00 | 13.0 | 1 | 3/16 | 0.119 | 1/8 | Yes | |
| 30540 |
|
Inch | 1/4-28 | 3.00 | 13.0 | 1 | 3/16 | 0.119 | 1/8 | Yes | |
| 30541 |
|
Inch | 5/16-18 | 3.00 | 15.0 | 1 | 3/16 | 0.135 | 5/32 | Yes | |
| 30542 |
|
Inch | 3/8-16 | 5.50 | 14.5 | 1 1/8 | 3/16 | 0.186 | 3/16 | Yes | |
| 30543 |
|
Inch | 1/2-13 | 6.60 | 17.4 | 1 1/4 | 1/4 | 0.248 | 1/4 | Yes | |
| 30544 |
|
Inch | 5/8-11 | 10.5 | 25.5 | 1 1/2 | 5/16 | 0.310 | 5/16 | Yes | |
| 30936 |
|
Inch | 6-32 | 0.50 | 1.50 | 17/32 | 1/16 | 0.046 | 3/64 | Yes | |
| 30937 |
|
Inch | 8-32 | 0.70 | 2.30 | 5/8 | 3/32 | 0.070 | 5/64 | Yes | |
| 30938 |
|
Inch | 10-32 | 1.30 | 2.70 | 3/4 | 1/8 | 0.093 | 3/32 | Yes | |
| 30939 |
|
Inch | 1/4-20 | 1.00 | 4.00 | 1 | 3/16 | 0.119 | 1/8 | Yes | |
| 30940 |
|
Inch | 1/4-28 | 1.00 | 4.00 | 1 | 3/16 | 0.119 | 1/8 | Yes | |
| 30941 |
|
Inch | 5/16-18 | 1.50 | 4.50 | 1 | 3/16 | 0.135 | 5/32 | Yes | |
| 30942 |
|
Inch | 3/8-16 | 2.80 | 7.20 | 1 1/8 | 3/16 | 0.186 | 3/16 | Yes | |
| 30943 |
|
Inch | 1/2-13 | 2.70 | 9.30 | 1 1/4 | 1/4 | 0.248 | 1/4 | Yes | |
| 30944 |
|
Inch | 5/8-11 | 3.50 | 10.5 | 1 1/2 | 5/16 | 0.310 | 5/16 | Yes | |
| 30945 |
|
Inch | 3/4-10 | 5.50 | 14.5 | 1 3/4 | 5/16 | 0.374 | 3/8 | Yes |
