Cylinder Mounting Brackets
Jergens Mounting Brackets are designed to save users time and money when laying out fixtures. All Mounting Brackets are made of low-carbon steel, which is not heat-treated, allowing users to custom fit or weld the brackets into the fixture. The cylinder clamping area is concentric to the O.D. of the various cylinders to avoid distortion of the cylinder walls, which may cause damage to the piston. Spacers may be used to add height to the cylinders when using Mounting Brackets.
Features, Benefits, & Product Specifications:
-
Material: C-1018 Low Carbon Steel
-
Finish: Black Oxide
-
Bore Tolerances: +0.0005", -0.0010"
-
(2) bolts supplied

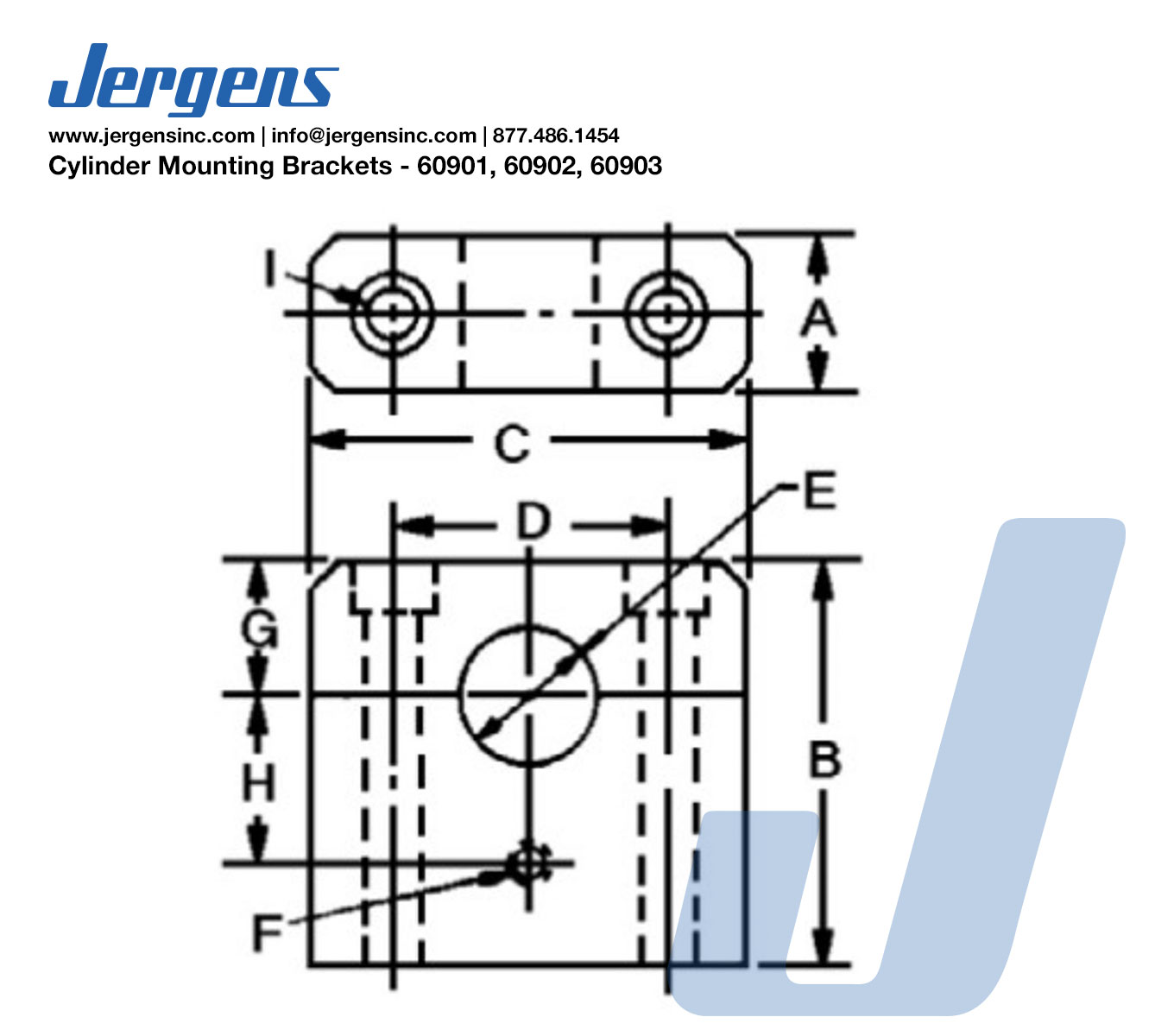

Cylinder Mounting Brackets
Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F | G (In) | H (In) | I (In) | J | Weight (lbs) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
60901 | Inch | 1 1/4 | 3 3/4 | 2 3/8 | 1 1/2 | 1.00 | 1/2-13 | 3/4 | 2 | 3/8-16 x 4 | - | 2.75 | |
60903 | Inch | 1 1/4 | 4 1/2 | 4 3/8 | 3 1/4 | 2.50 | 3/4-10 | 1 1/2 | 2 | 5/8-11 x 5 | - | 4.75 | |
60904 | Inch | 1 1/4 | 3 3/4 | 2 3/8 | 1 1/2 | 1.00 | 1/2-13 | 3/4 | 2 | 2 9/16 | 3/18-16 x 1 1/2 | 2.7 | |
60905 | Inch | 1 1/4 | 4 | 3 1/8 | 2 1/8 | 1.50 | 3/4-10 | 1 | 2 | 2 1/2 | 1/2-13 x 1 1/2 | 3.5 | |
60906 | Inch | 1 1/4 | 4 1/2 | 4 3/8 | 3 1/4 | 2.50 | 3/4-10 | 1 1/2 | 2 | 2 7/16 | 5/8-11 x 1 1/2 | 4.7 | |
60907 | Inch | 1 1/4 | 1 1/2 | 2 3/8 | 1 1/2 | 1.00 | 3/4 | 3/8-16 x 1 3/4 | - | - | - | 0.95 | |
60908 | Inch | 1 1/4 | 2 | 3 1/8 | 2 1/8 | 1.50 | 1 | 1/2-13 x 2 1/4 | - | - | - | 1.50 | |
60909 | Inch | 1 1/4 | 3 | 4 3/8 | 3 1/4 | 2.50 | 1 1/2 | 5/8-11 x 3 1/4 | - | - | - | 2.75 |
