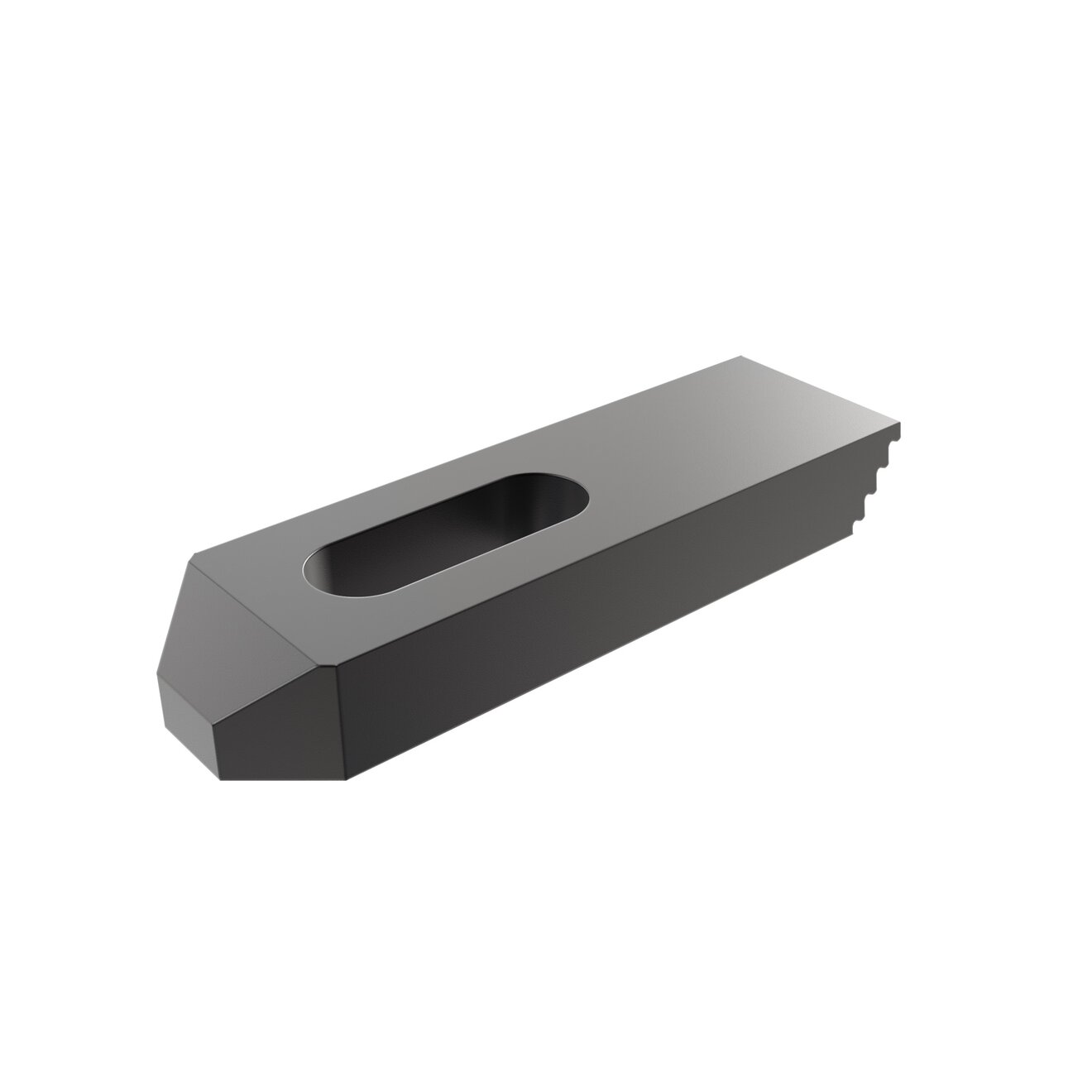

Coarse Pitch Steel Heel Straps
The step teeth of Jergens Coarse Pitch Steel Heel Straps match our Aluminum Step Blocks. These straps facilitate easier height adjustments on set-ups.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened Rockwell 30N 50-54
Coarse Pitch Steel Heel Straps
Select a part number for CAD drawings, price and stock availability.

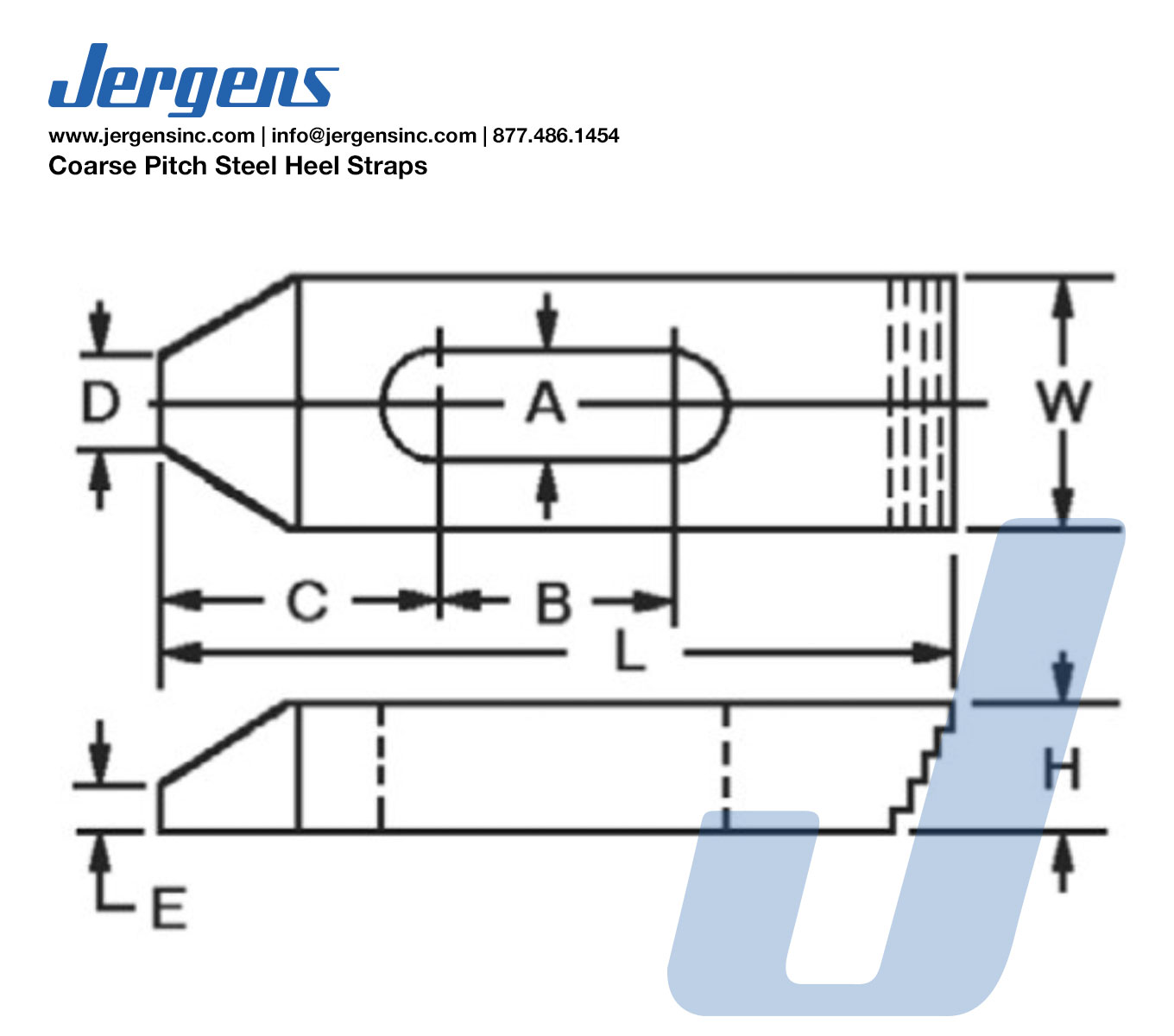

| Part Number | CAD | Unit | Bolt Size | A (In) | B (In) | C (In) | D (In) | E (In) | H (In) | L (In) | W (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46814 |
|
Inch | 1/2 | 17/32 | 1/2 | 1 1/16 | 1/2 | 1/4 | 5/8 | 2 1/2 | 1 1/4 | 0.46 |
| 46815 |
|
Inch | 1/2 | 17/32 | 1 1/4 | 1 3/16 | 1/2 | 1/4 | 3/4 | 4 | 1 1/4 | 0.65 |
| 46816 |
|
Inch | 1/2 | 17/32 | 2 | 1 5/16 | 1/2 | 1/4 | 7/8 | 6 | 1 1/4 | 0.95 |
| 46817 |
|
Inch | 5/8 | 21/32 | 1/2 | 1 3/16 | 5/8 | 1/4 | 5/8 | 3 | 1 1/4 | 0.66 |
| 46818 |
|
Inch | 5/8 | 21/32 | 1 1/4 | 1 3/16 | 5/8 | 3/8 | 3/4 | 5 | 1 1/2 | 0.93 |
| 46819 |
|
Inch | 5/8 | 21/32 | 2 | 1 5/16 | 5/8 | 3/8 | 7/8 | 7 | 1 1/2 | 1.36 |
| 46820 |
|
Inch | 3/4 | 25/32 | 3/4 | 1 5/16 | 5/8 | 3/8 | 3/4 | 4 | 1 1/2 | 1.39 |
| 46821 |
|
Inch | 3/4 | 25/32 | 1 1/2 | 1 1/2 | 5/8 | 3/8 | 1 | 6 | 1 1/2 | 1.94 |
| 46822 |
|
Inch | 3/4 | 25/32 | 2 1/4 | 1 5/8 | 5/8 | 3/8 | 1 1/8 | 8 | 1 3/4 | 2.48 |
