Clamp Rests
Jergens Clamp Rests are used as supports for our Strap Clamp Assemblies.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened
-
Thread: 2A-UNC
Clamp Rests
Select a part number for CAD drawings, price and stock availability.

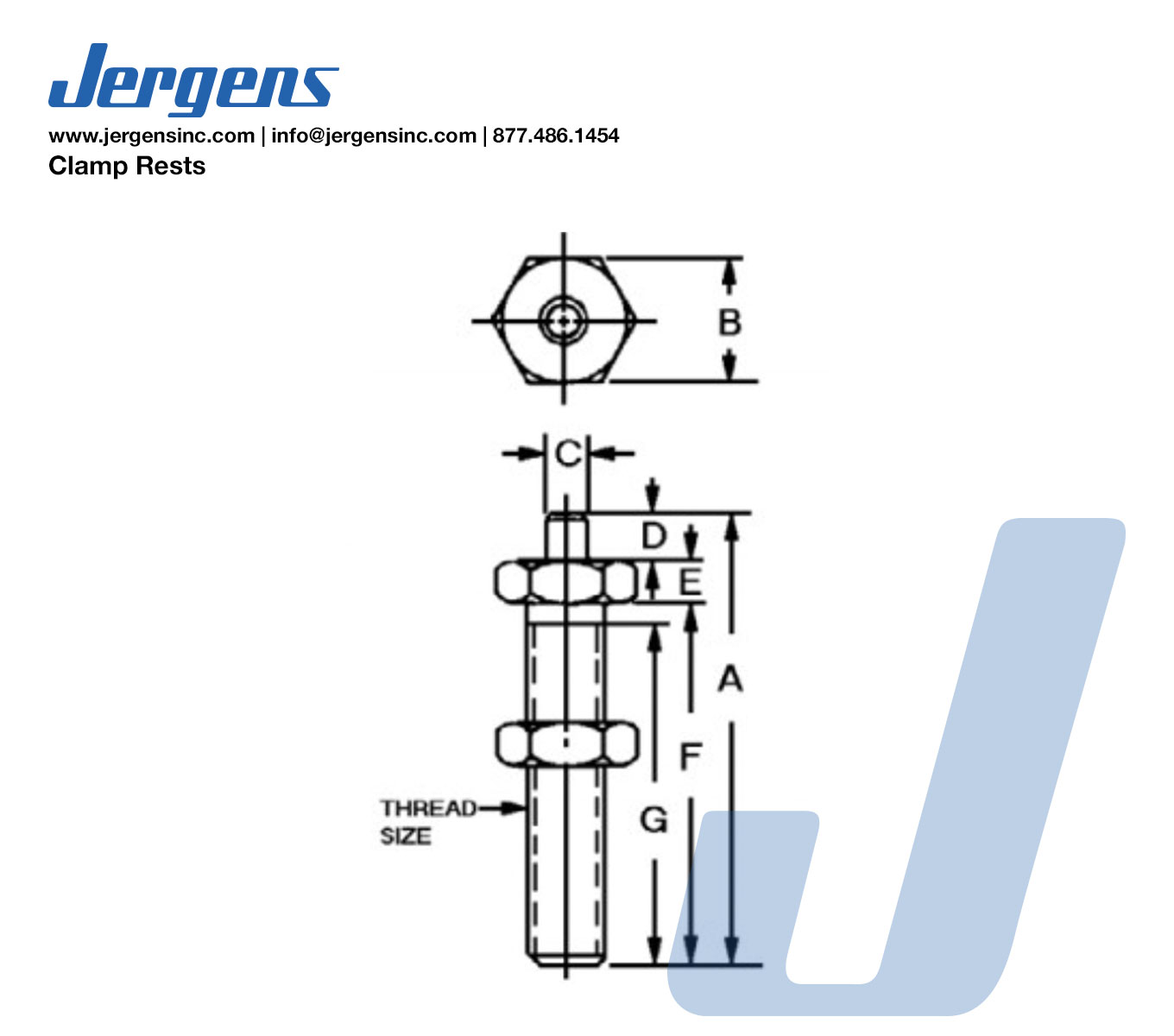

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | Thread Size | Weight 10 Pcs (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 21301 |
|
Inch | 3/4 | 3/8 | 5/32 | 5/64 | 11/64 | 1/2 | 13/32 | 10-24 | 0.19 |
| 21302 |
|
Inch | 1 1/4 | 7/16 | 5/32 | 5/64 | 11/64 | 1 | 29/32 | 1/4-20 | 0.22 |
| 21303 |
|
Inch | 2 1/2 | 9/16 | 11/32 | 5/32 | 11/32 | 2 | 1 13/16 | 3/8-16 | 0.70 |
| 21304 |
|
Inch | 2 3/8 | 7/8 | 11/32 | 3/16 | 1/2 | 1 11/16 | 1 1/2 | 1/2-13 | 1.88 |
| 21305 |
|
Inch | 3 27/32 | 7/8 | 11/32 | 3/16 | 12 | 3 5/32 | 2 15/16 | 5/8-11 | 3.60 |
| 21306 |
|
Inch | 3 1/2 | 7/8 | 11/32 | 3/16 | 1/2 | 2 13/16 | 2 3/8 | 3/4-10 | 4.70 |
| 21307 |
|
Inch | 1 7/8 | 1/2 | 7/32 | 3/16 | 7/32 | 1 15/32 | 1 5/16 | 5/16-18 | 0.60 |
| 21308 |
|
Inch | 3 1/4 | 1/2 | 7/32 | 3/16 | 7/32 | 2 27/32 | 2 11/16 | 5/16-18 | 1.25 |
| 21313 |
|
Inch | 3 7/8 | 9/16 | 11/32 | 5/32 | 11/32 | 3 3/8 | 3 3/16 | 3/8-16 | 2.80 |
| 21314 |
|
Inch | 3 7/8 | 7/8 | 11/32 | 3/16 | 1/2 | 3 3/16 | 3 | 1/2-13 | 3.50 |
| 21315 |
|
Inch | 2 5/8 | 7/8 | 11/32 | 3/16 | 1/2 | 1 15/16 | 1 11/16 | 5/8-11 | 2.25 |
| 21316 |
|
Inch | 2 3/4 | 7/8 | 11/32 | 3/16 | 1/2 | 2 1/16 | 1 7/8 | 3/4-10 | 2.75 |
