Clamp Assembly Guide Blocks
Clamp Assembly Guide Blocks guide our Strap Clamp Assemblies straight back for part loading.
Features, Benefits, & Product Specifications:
-
Material: C-1018 Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened 74-77 R30N
-
Mounting screws supplied with heel
Clamp Assembly Guide Blocks
Select a part number for CAD drawings, price and stock availability.

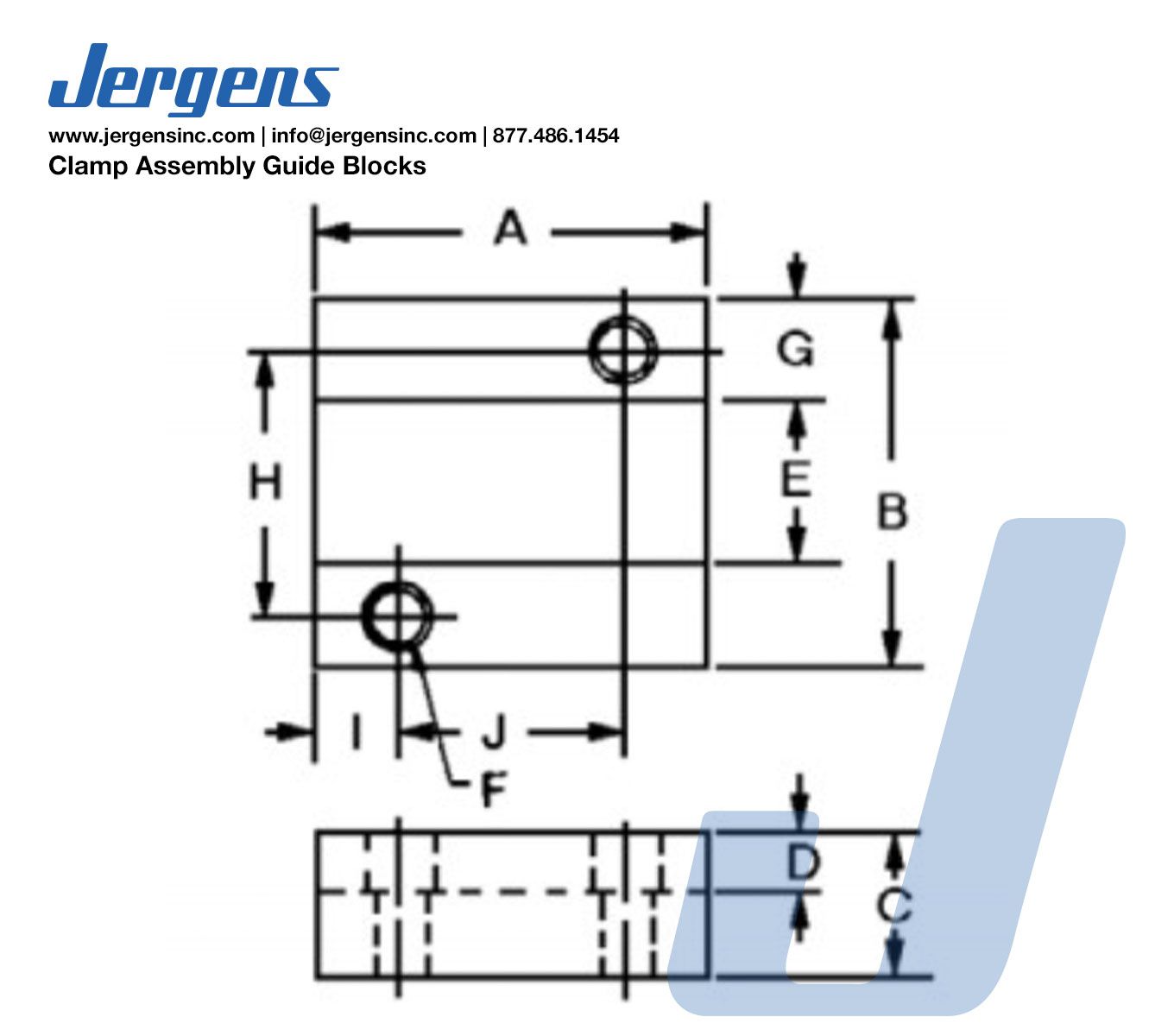

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | Socket Head Cap F | G (In) | H (In) | I (In) | J (In) | Weight 10 Pieces (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13701 |
|
Inch | 7/8 | 3/4 | 5/16 | 1/8 | 7/32 | 5-40 | 1/8 | 1/2 | 3/16 | 1/2 | 0.06 |
| 13703 |
|
Inch | 1 1/8 | 1 | 1/2 | 3/16 | 9/32 | 8-32 | 3/16 | 5/8 | 1/4 | 5/8 | 0.12 |
| 13705 |
|
Inch | 1 5/8 | 1 1/2 | 5/8 | 1/4 | 13/32 | 1/4-20 | 1/4 | 1 | 3/8 | 7/8 | 0.38 |
