Check Nuts

Jergens Check Nuts are a multi-use lock nut for hand tightening applications.

Features, Benefits, & Product Specifications:
  • Material: Low Carbon Steel
  • Finish: Black Oxide
  • Heat Treat: Case Hardened
  • Thread: 2B-UNC


Documents

Check Nuts

Check Nuts
  • Check Nuts

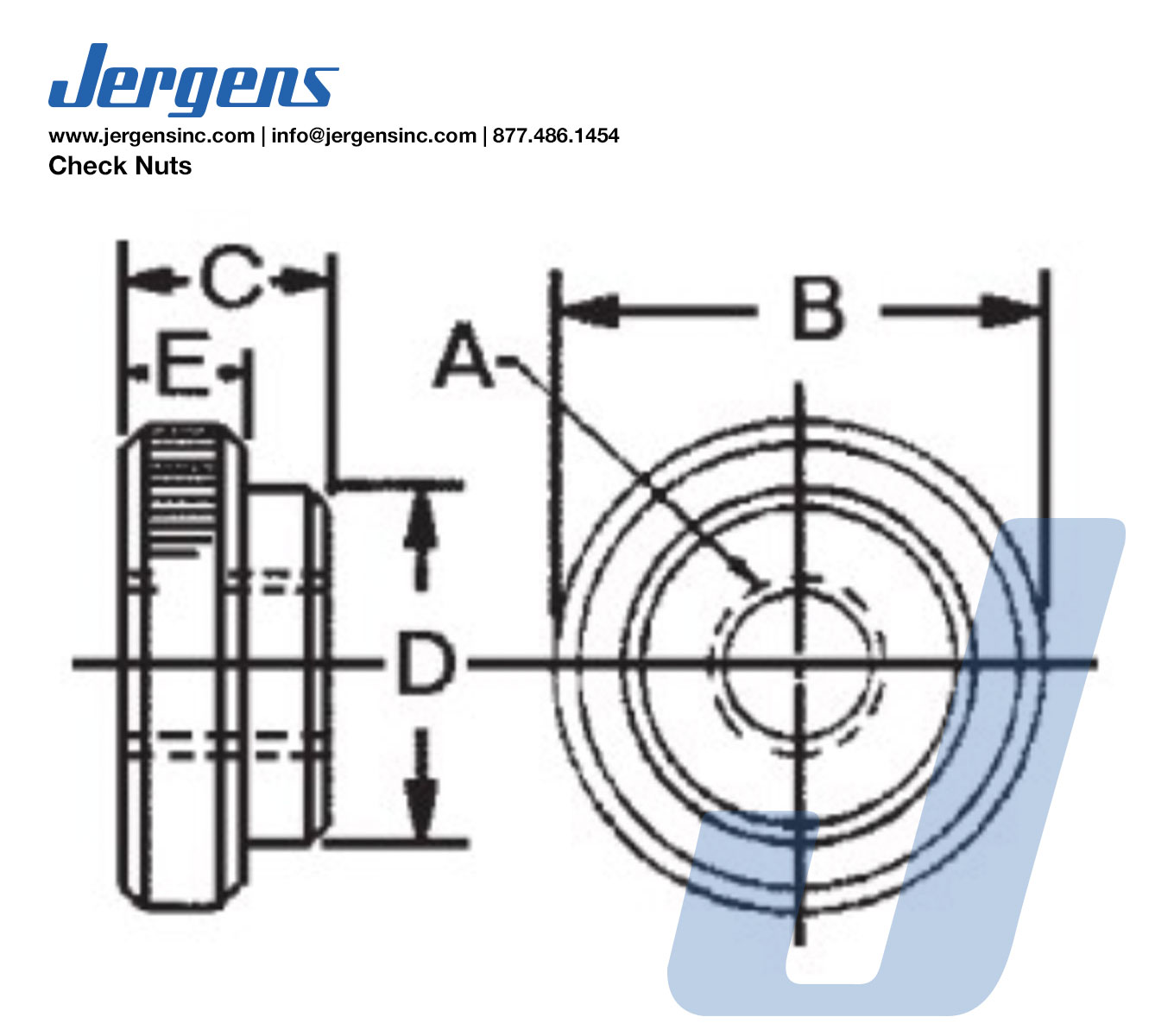

  • Line Art Check Nuts

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit A B (In) C (In) D (in) E (in) Weight (lbs)
16901 icon_cad Inch 10-24 3/4 7/32 1/2 5/32 0.02
16902 icon_cad Inch 1/4-20 3/4 7/32 1/2 5/32 0.02
16903 icon_cad Inch 5/16-18 3/4 5/16 1/2 1/4 0.03
16904 icon_cad Inch 3/8-16 3/4 5/16 1/2 1/4 0.03
16905 icon_cad Inch 1/2-13 1 3/8 3/4 1/4 0.05
