Bolt Retainers
Jergens Toggle Clamps encompass a range of standard styles and sizes. Manufactured to the highest quality, our toggle clamps enable you to work quickly and accurately and provide repeatable clamping performance for a wide range of applications and industries. We maintain a large inventory and are happy to help identify the right product for your application.
Note(s):
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Bolt Retainers
Select a part number for CAD drawings, price and stock availability.

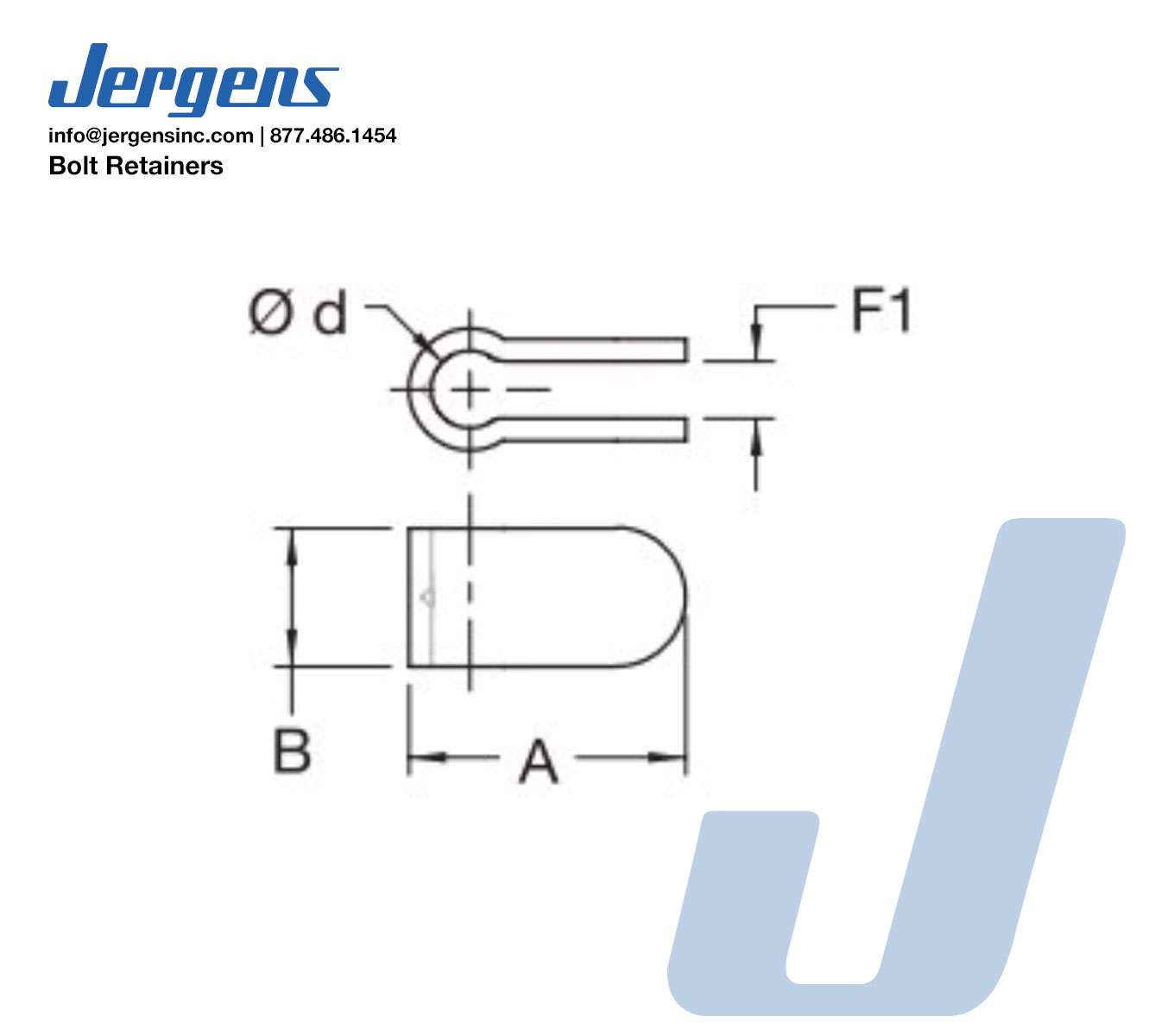

Part Number | CAD | Unit | A (In) | B (In) | F1 (In) | d (In) | d (mm) |
---|---|---|---|---|---|---|---|
70086 | Inch | 1.20 | 0.47 | 0.25 | 5/16 | M8 | |
70087 | Inch | 1.46 | 0.78 | 0.32 | 3/8 | M10 | |
70088 | Inch | 1.53 | 0.78 | 0.40 | 1/2 | M12 | |
70089 | Inch | 1.70 | 0.98 | 0.40 | 5/8 | M16 |
