Ball Lock® 150 mm Hydraulic Production Vises

Jergens Ball Lock® Hydraulic Production Vises are designed for use with our Ball Lock® Mounting System. Their jigsaw pattern base allows for “nesting” on our Ball Lock® Subplates.

Features, Benefits, & Product Specifications:
  • Base Material: Hard-Coated Machined Aluminum
  • Compact lightweight design for easy setup
  • Internal hydraulics
  • 2,100 kgs of clamping force
  • Operates on lower input pressure
  • Supplied with fully machineable & reversible aluminum soft jaws
  • Hardened ground stainless steel rails for precision, wear resistance, & jaw support
  • Openings allow chips to flow out of the vise base




Ball Lock® 150 mm Hydraulic Production Vises

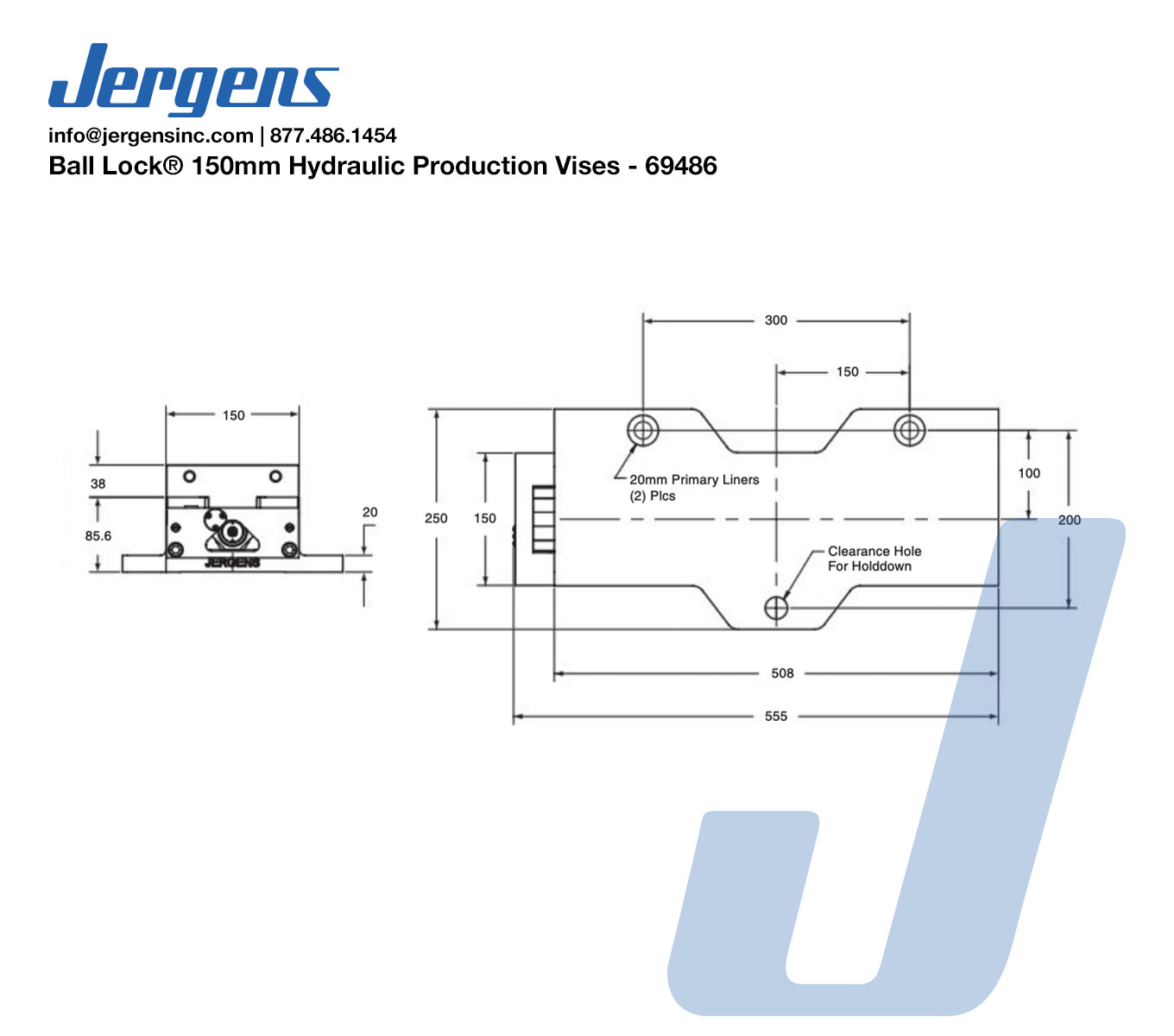

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Base Type Ball-Lock Shank Part Number Shank Size Weight (kgs)
69486 Inch Ball Lock® Base 49651 20mm x 20mm 28

Documents and Videos

  • Operating Manual
  • Operating Manual - 81600 ONLY
  • Jergens Production Vise System
  • Jergens Production Vises Features and Benefits
  • Vertical Machine Solutions
  • Horizontal Machine Solutions
  • Hydraulic Production Vises
  • Production Vises
