Aluminum Tubular Handles by ELESA®
Jergens Aluminum Tubular Handles by ELESA® are ideal for achieving an optimal grip when maneuvering the doors of large machines.
Features, Benefits, & Product Specifications:
-
Materials:
-
Handle Shanks: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
-
Tube: Aluminum
-
Tube End Plugs: NBR Synthetic Rubber
-
-
Finishes:
-
Handle Shanks: Matte Black
-
Tube: Epoxy Resin Coating, Metalflake Graphite Color, Matte Finish
-
- The handle shank connection to the tube is axially knurled to prevent tube rotation
-
Pass-through holes for cylindrical-head screws with hexagon socket
-
(2) reference pins for safer positioning of the shanks
-
Resistant to wear, scratches, and chemical agents
Note(s):
Avoid continuous and prolonged contact with boiling water or steam.
Aluminum Tubular Handles by ELESA®

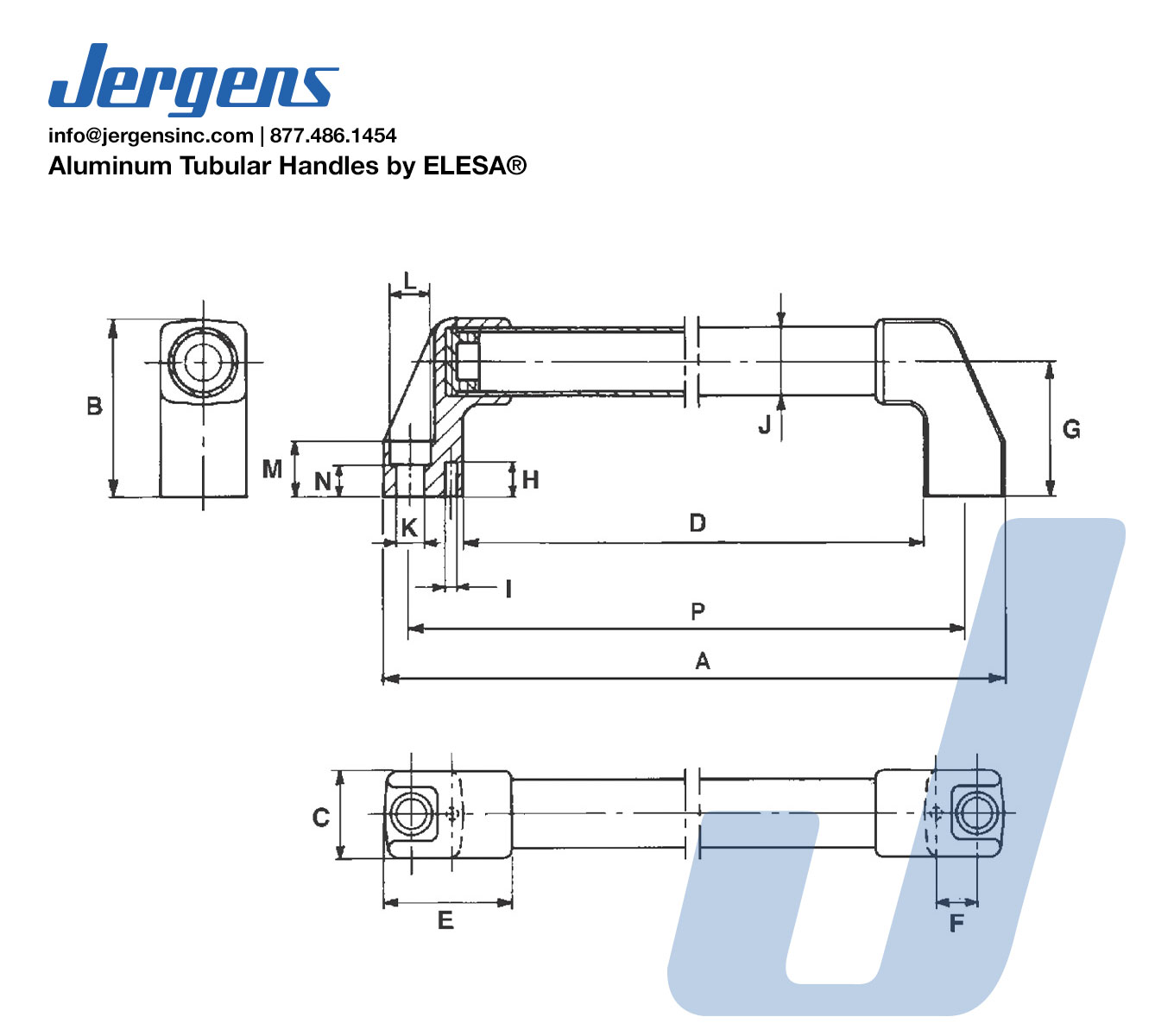

Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I (In) | J (In) | K (In) | L (In) | M (In) | N (In) | P (In) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
33725 | Inch | 12.76 | 3.07 | 1.5 | 10.00 | 2.24 | 0.71 | 2.36 | 0.59 | 0.16 | 1.18 | 0.41 | 0.63 | 0.98 | 0.59 | 12 | |
33727 | Inch | 16.69 | 3.07 | 1.5 | 13.94 | 2.24 | 0.71 | 2.36 | 0.59 | 0.16 | 1.18 | 0.41 | 0.63 | 0.98 | 0.59 | 16 | |
33728 | Inch | 20.63 | 3.07 | 1.5 | 17.87 | 2.24 | 0.71 | 2.36 | 0.59 | 0.16 | 1.18 | 0.41 | 0.63 | 0.98 | 0.59 | 20 | |
33730 | Inch | 28.50 | 3.07 | 1.5 | 25.75 | 2.24 | 0.71 | 2.36 | 0.59 | 0.16 | 1.18 | 0.41 | 0.63 | 0.98 | 0.59 | 28 |
