Aluminum Star Grips

Jergens Specialty Fasteners maintains a large inventory of several varieties of knobs, handles, handwheels, and cranks. Whether you’re looking for prototype or production quantities, we can help!

Features, Benefits, & Product Specifications:
  • Material: Aluminum



Documents

Aluminum Star Grips

Aluminum Star Grips
  • Aluminum Star Grips

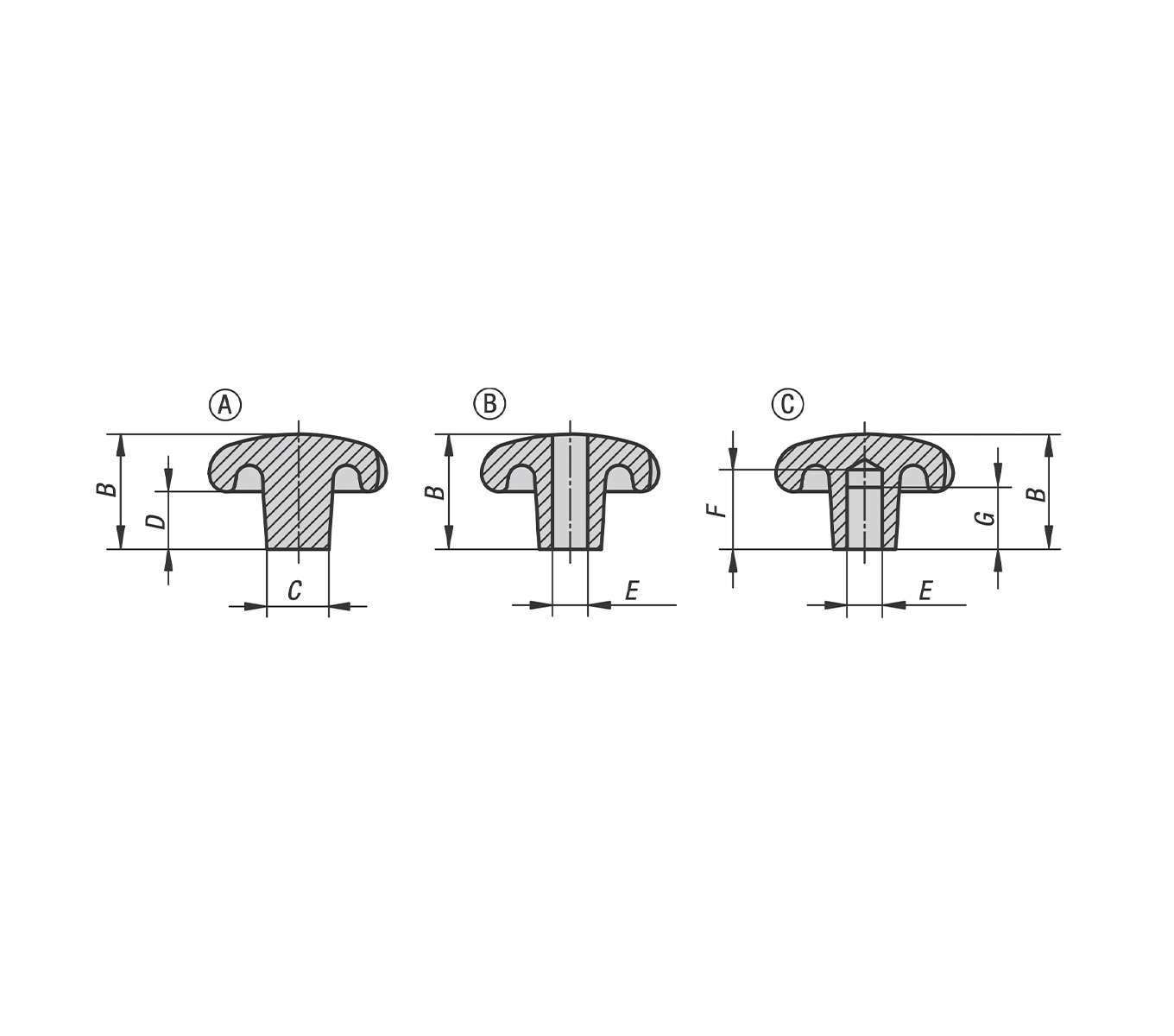

  • Aluminum Star Grips Style A B C Line Art

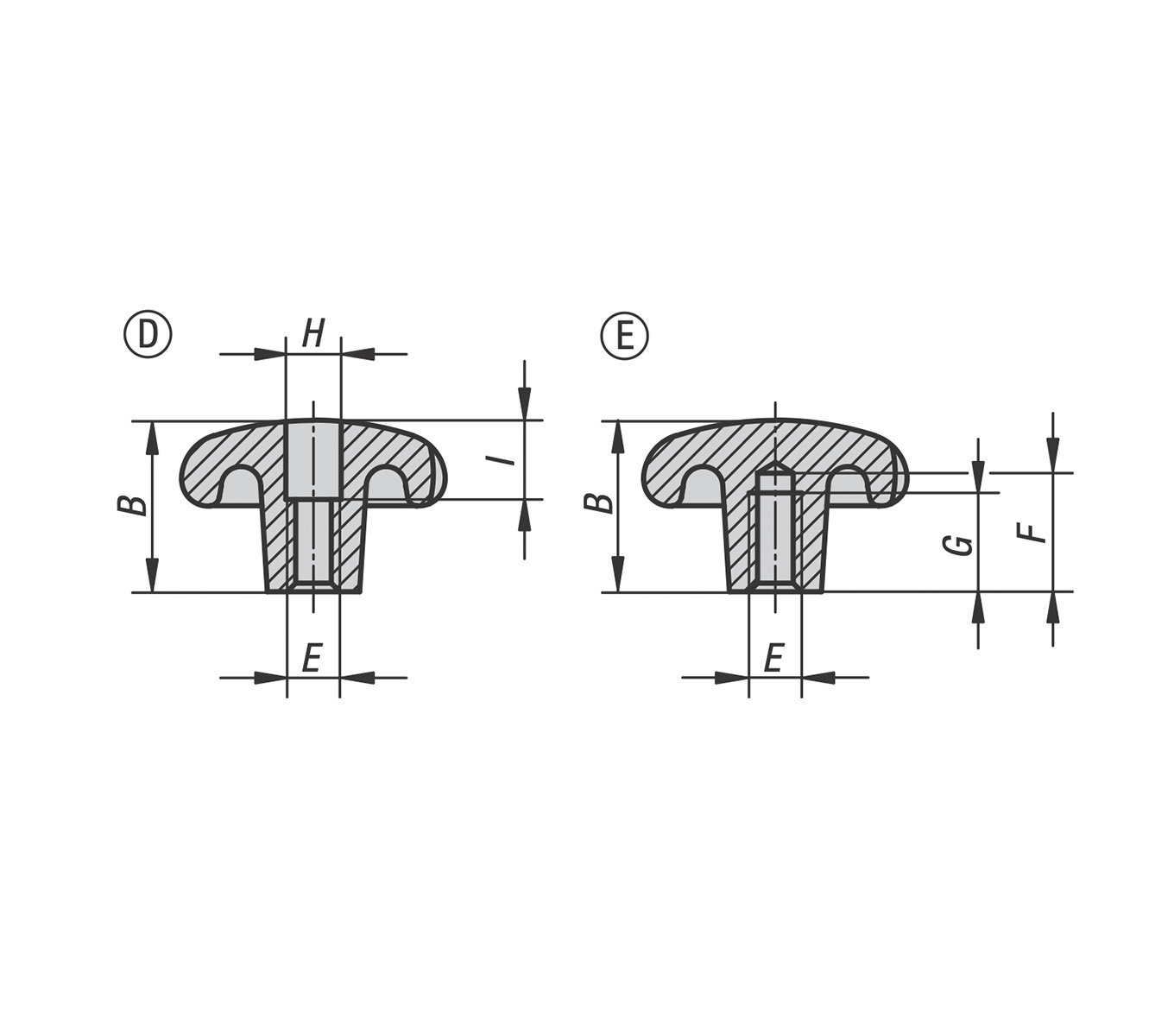

  • Aluminum Star Grips Style D E Line Art

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Style Finish A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm)
40785 Metric A Tumbled 40 26 14 13 - - - - -
40787 Metric A Tumbled 63 42 20 21 - - - - -
40788 Metric A Tumbled 80 52 25 25 - - - - -
40789 Metric B Tumbled 40 25 14 13 8 - - - -
40790 Metric B Tumbled 50 32 18 17 10 - - - -
40791 Metric B Tumbled 63 40 20 21 12 - - - -
40792 Metric B Tumbled 80 50 25 25 16 - - - -
40793 Metric C Tumbled 40 26 14 13 8 18 15 - -
40794 Metric C Tumbled 50 34 18 17 10 21 18 - -
40795 Metric C Tumbled 63 42 20 21 12 25 22 - -
40796 Metric C Tumbled 80 52 25 25 16 32 28 - -
40797 Metric D Tumbled 40 25 14 13 M8 - - 8.4 12
40798 Metric D Tumbled 50 32 18 17 M10 - - 10.5 16
40799 Metric D Tumbled 63 40 20 21 M12 - - 13 20
40800 Metric D Tumbled 80 50 25 25 M16 - - 17 30
40801 Metric E Tumbled 40 26 14 13 M8 18 15 - -
40802 Metric E Tumbled 50 34 18 17 M10 21 18 - -
40803 Metric E Tumbled 63 42 20 21 M12 25 22 - -
40804 Metric E Tumbled 80 52 25 25 M16 32 28 - -
40805 Metric B Polished 40 25 14 13 8 - - - -
40806 Metric B Polished 50 32 18 17 10 - - - -
40807 Metric B Polished 63 40 20 21 12 - - - -
40808 Metric B Polished 80 50 25 25 16 - - - -
40809 Metric C Polished 40 26 14 13 8 18 15 - -
40810 Metric C Polished 50 34 18 17 10 21 18 - -
40811 Metric C Polished 63 42 20 21 12 25 22 - -
40812 Metric C Polished 80 52 25 25 16 32 28 - -
40813 Metric D Polished 40 25 14 13 M8 - - 8.4 12
40814 Metric D Polished 50 32 18 17 M10 - - 10.5 16
40815 Metric D Polished 63 40 20 21 M12 - - 13 20
40816 Metric D Polished 80 50 25 25 M16 - - 17 30
40817 Metric E Polished 40 26 14 13 M8 18 15 - -
40818 Metric E Polished 50 34 18 17 M10 21 18 - -
40819 Metric E Polished 63 42 20 21 M12 25 22 - -
40820 Metric E Polished 80 52 25 25 M16 32 28 - -
