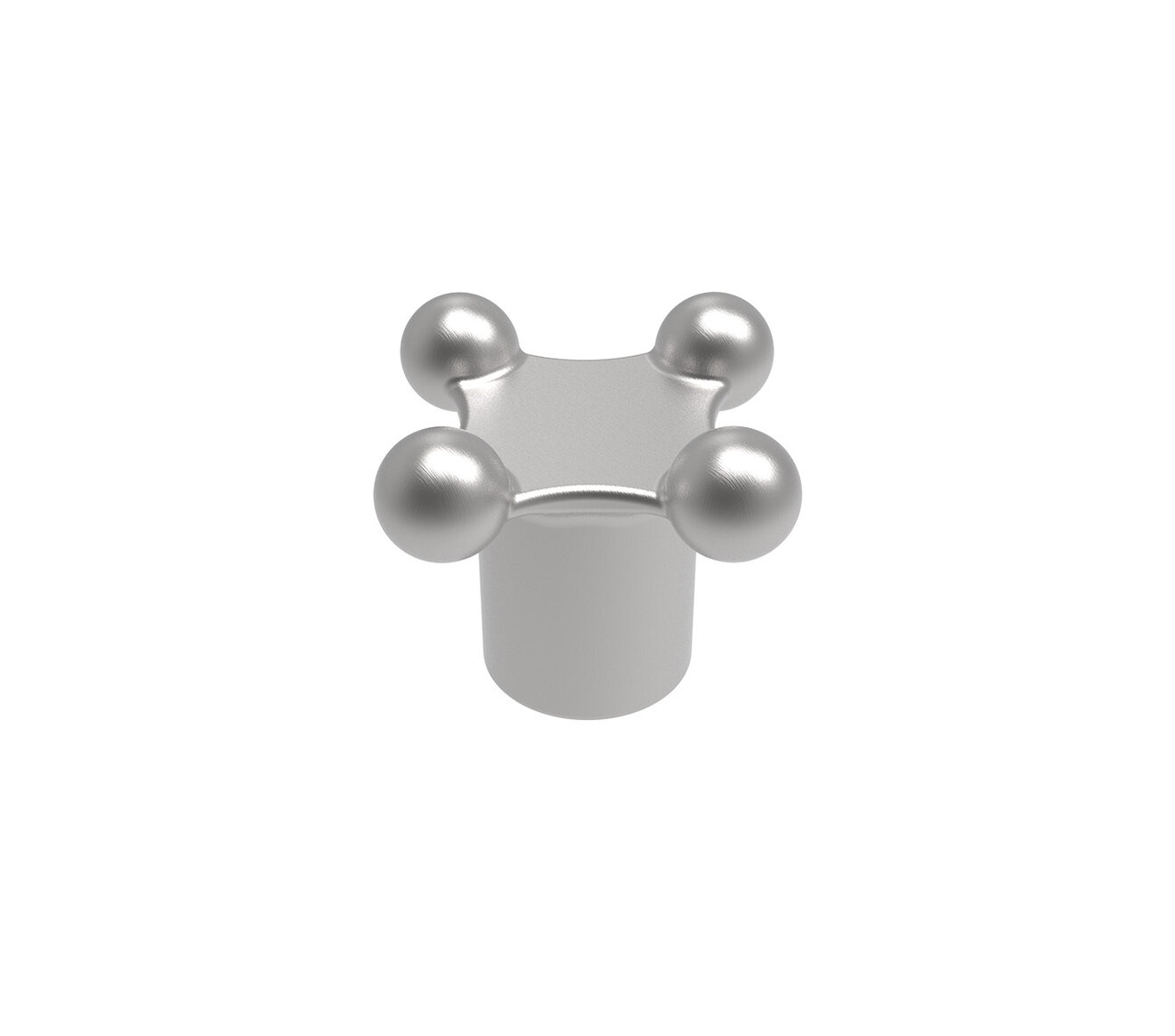

Aluminum Hand Knobs
Jergens Specialty Fasteners maintains a large inventory of several varieties of knobs, handles, handwheels, and cranks. Whether you’re looking for prototype or production quantities, we can help!
Features, Benefits, & Product Specifications:
-
Material: 319 Aluminum Alloy
-
Thread: 2B-UNC for Inch, Class 6h for Metric
-
Ream: ±0.002" for Inch, ±0.05mm for Metric
Aluminum Hand Knobs
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | F (In) | Hub Style | Weight 10 Pieces (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 21101 |
|
Inch | 1 1/4 | 9/16 | 3/4 | 5/16 | Blank | - | 0.21 |
| 21102 |
|
Inch | 1 1/4 | 9/16 | 3/4 | 5/16 | 1/2 | 1/4 Ream | 0.16 |
| 21104 |
|
Inch | 1 1/4 | 9/16 | 3/4 | 5/16 | 1/2 | 1/4-20 Tap | 0.16 |
| 21105 |
|
Inch | 1 1/4 | 9/16 | 3/4 | 5/16 | 1/2 | 5/16-18 Tap | 0.16 |
| 21106 |
|
Inch | 1 1/2 | 11/16 | 7/8 | 3/8 | Blank | - | 0.47 |
| 21108 |
|
Inch | 1 1/2 | 11/16 | 7/8 | 3/8 | 5/8 | 3/8 Ream | 0.31 |
| 21109 |
|
Inch | 1 1/2 | 11/16 | 7/8 | 3/8 | 5/8 | 5/16-18 Tap | 0.31 |
| 21110 |
|
Inch | 1 1/2 | 11/16 | 7/8 | 3/8 | 5/8 | 3/8-16 Tap | 0.31 |
| 21111 |
|
Inch | 2 1/8 | 7/8 | 1 1/4 | 1/2 | Blank | - | 1.10 |
| 21112 |
|
Inch | 2 1/8 | 7/8 | 1 1/4 | 1/2 | 7/8 | 3/8 Ream | 1.00 |
| 21113 |
|
Inch | 2 1/8 | 7/8 | 1 1/4 | 1/2 | 7/8 | 1/2 Ream | 1.00 |
| 21114 |
|
Inch | 2 1/8 | 7/8 | 1 1/4 | 1/2 | 7/8 | 3/8-16 Tap | 1.00 |
| 21115 |
|
Inch | 2 1/8 | 7/8 | 1 1/4 | 1/2 | 7/8 | 1/2-13 Tap | 1.00 |
| 21116 |
|
Inch | 3 | 1 3/8 | 1 3/4 | 11/16 | Blank | - | 3.80 |
| 21118 |
|
Inch | 3 | 1 3/8 | 1 3/4 | 11/16 | 1 1/4 | 5/8 ream | 3.30 |
| 21119 |
|
Inch | 3 | 1 3/8 | 1 3/4 | 11/16 | 1 1/4 | 3/4 Ream | 3.10 |
| 21120 |
|
Inch | 3 | 1 3/8 | 1 3/4 | 11/16 | 1 1/4 | 1/2-13 Tap | 3.40 |
| 21121 |
|
Inch | 3 | 1 3/8 | 1 3/4 | 11/16 | 1 1/4 | 5/8-11 Tap | 3.30 |
| 21122 |
|
Inch | 3 | 1 3/8 | 1 3/4 | 11/16 | 1 1/4 | 3/4-10 Tap | 3.10 |
| Part Number | CAD | Unit | A (mm) | B (mm) | C (mm) | D (mm) | F (mm) | Hub Style |
|---|---|---|---|---|---|---|---|---|
| 21101 |
|
Metric | 31 | 14 | 19 | 8 | - | Blank |
| 21106 |
|
Metric | 38 | 17 | 22 | 9 | - | Blank |
| 21111 |
|
Metric | 53 | 22 | 32 | 12 | - | Blank |
| 21116 |
|
Metric | 75 | 34 | 44 | 17 | - | Blank |
| 21155 |
|
Metric | 31 | 14 | 19 | 8 | 13 | M8 Tap |
| 21160 |
|
Metric | 38 | 17 | 22 | 9 | 16 | M10 Tap |
| 21164 |
|
Metric | 53 | 22 | 32 | 12 | 22 | M10 Tap |
| 21165 |
|
Metric | 53 | 22 | 32 | 12 | 22 | M12 Tap |
| 21168 |
|
Metric | 75 | 34 | 44 | 17 | 32 | 16mm Ream |
| 21171 |
|
Metric | 75 | 34 | 44 | 17 | 32 | M16 Tap |
