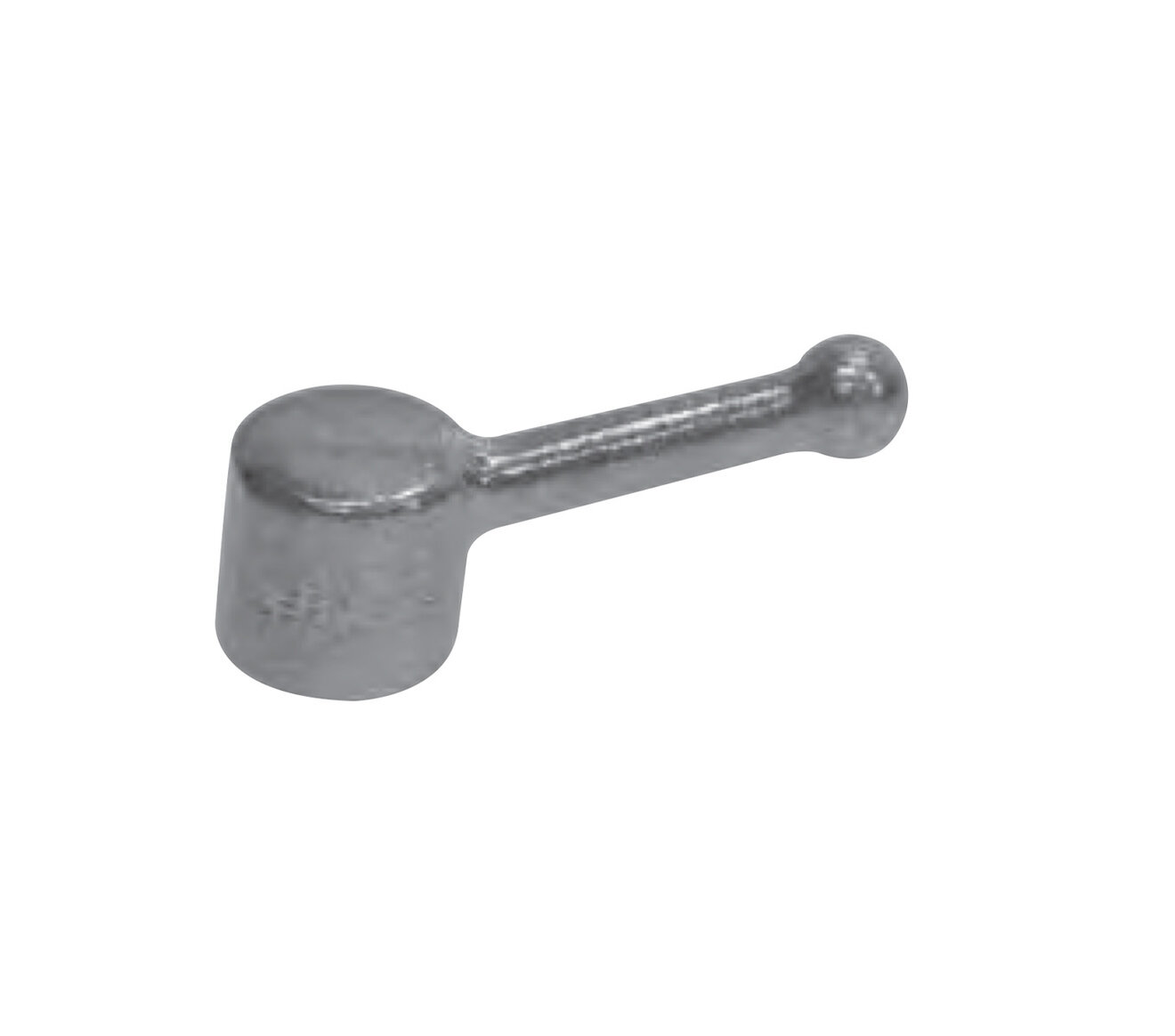

Aluminum and Malleable Clamping Levers
Jergens Specialty Fasteners maintains a large inventory of several varieties of knobs, handles, handwheels, and cranks. Whether you’re looking for prototype or production quantities, we can help!
Features, Benefits, & Product Specifications:
-
Materials:
-
319 Aluminum Alloy
-
Malleable ASTM A47, GR32510
-
-
Finish: Mill
Aluminum and Malleable Clamping Levers
Select a part number for CAD drawings, price and stock availability.

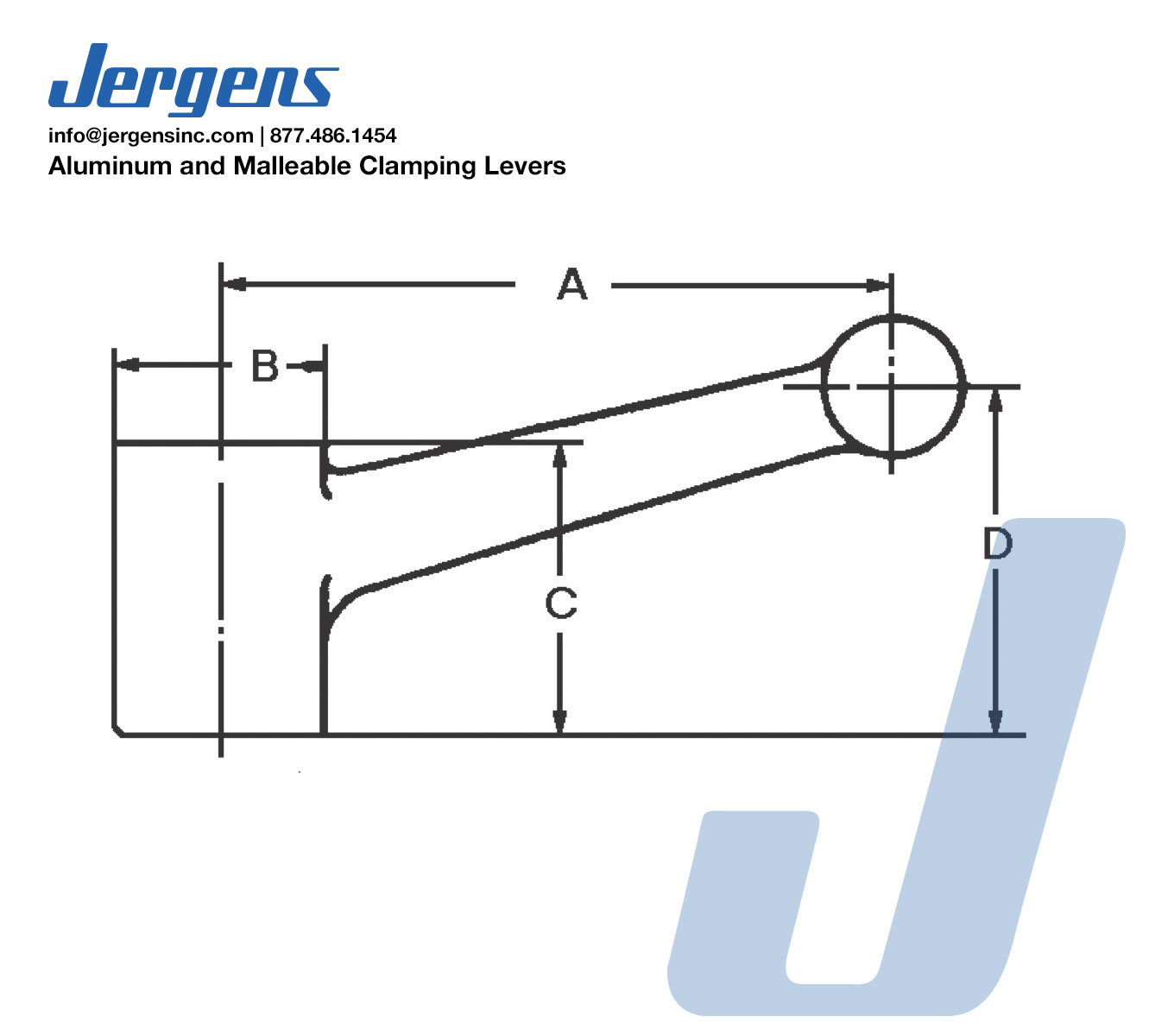

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | Material | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| 16501 |
|
Inch | 2 | 1 | 1 | 1 1/8 | Aluminum | 0.10 |
| 16502 |
|
Inch | 4 | 1 1/2 | 2 | 2 1/8 | Aluminum | 0.53 |
| 16503 |
|
Inch | 5 9/64 | 2 | 2 3/8 | 2 53/64 | Aluminum | 1.00 |
| 16701 |
|
Inch | 2 | 1 | 1 | 1 1/8 | Malleable | 0.30 |
| 16702 |
|
Inch | 4 | 1 1/2 | 2 | 2 3/8 | Malleable | 1.50 |
| 16703 |
|
Inch | 5 9/64 | 2 | 2 1/4 | 2 3/4 | Malleable | 2.80 |
