Adjustable Clamp Heels
With one of the largest selections available, Jergens Workholding Components have everything you need to design and build fixtures, jigs, and other workholding devices.
Features, Benefits, & Product Specifications:
-
Stud Material & Finish: Stressproof® Steel, Black Oxide
-
Pad Material & Finish: Low Carbon Steel, Black Oxide
-
Thread: 2B-UNC for Inch, 6h for Metric

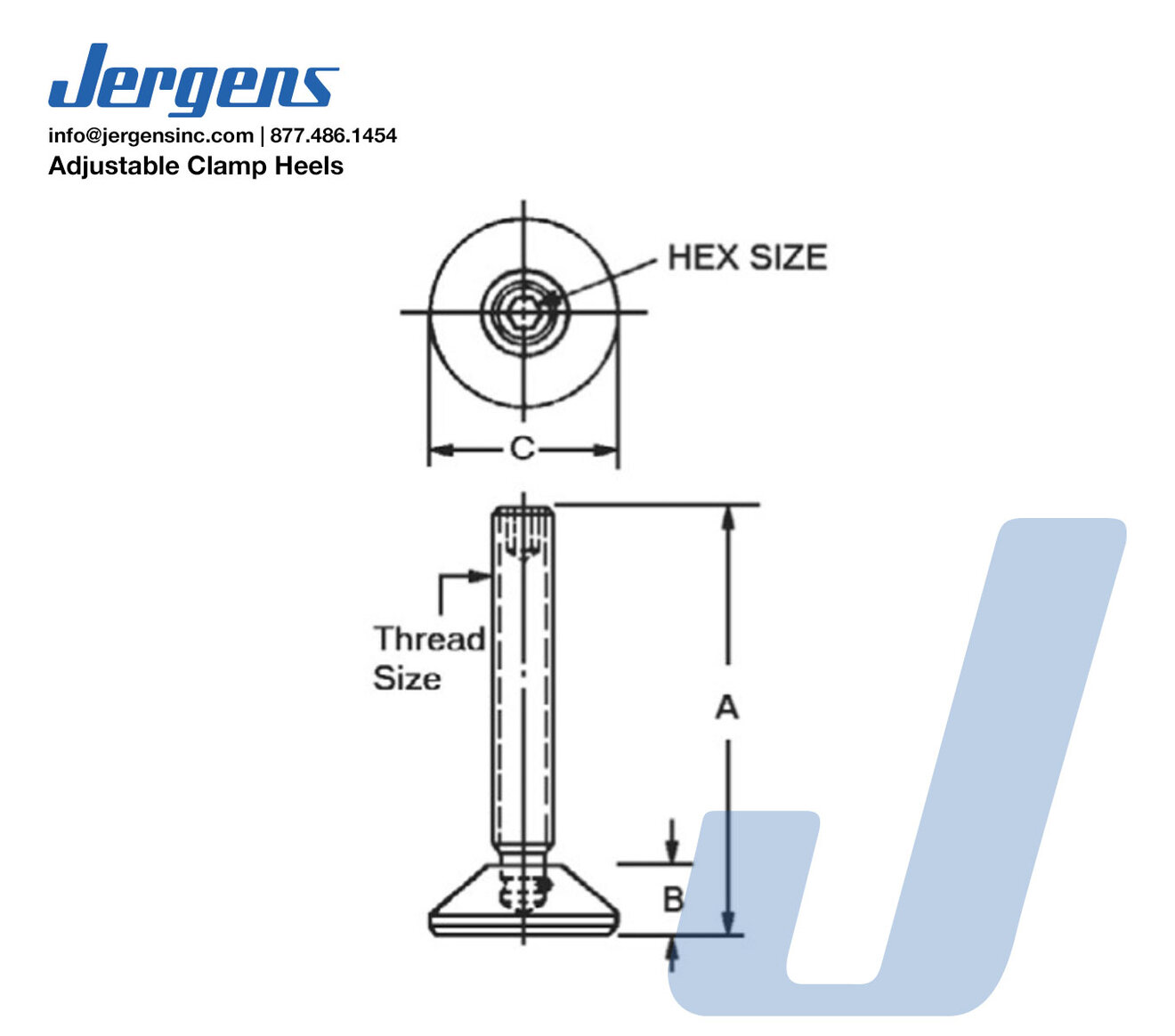

Adjustable Clamp Heels_LineArt
Adjustable Clamp Heels
| Part Number | CAD | Unit | Thread Size | A (In) | B (In) | C (In) | Hex Key Size | |
|---|---|---|---|---|---|---|---|---|
| 47201 |
|
Inch | 1/2-13 | 3 | 5/8 | 1 1/2 | 1/4 | |
| 47202 |
|
Inch | 1/2-13 | 4 | 5/8 | 1 1/2 | 1/4 | |
| 47203 |
|
Inch | 1/2-13 | 5 | 5/8 | 1 1/2 | 1/4 | |
| 47204 |
|
Inch | 5/8-11 | 4 | 3/4 | 1 3/4 | 5/16 | |
| 47205 |
|
Inch | 5/8-11 | 5 | 3/4 | 1 3/4 | 5/16 | |
| 47206 |
|
Inch | 5/8-11 | 6 | 3/4 | 1 3/4 | 5/16 | |
| 47207 |
|
Inch | 3/4-10 | 5 | 7/8 | 2 | 3/8 | |
| 47208 |
|
Inch | 3/4-10 | 6 | 7/8 | 2 | 3/8 | |
| 47209 |
|
Inch | 3/4-10 | 7 | 7/8 | 2 | 3/8 | |
| 47210 |
|
Inch | 1-8 | 4 | 1 | 2 1/2 | 9/16 | |
| 47211 |
|
Inch | 1-8 | 6 | 1 | 2 1/2 | 9/16 | |
| 47213 |
|
Inch | 3/8-16 | 2 | 5/8 | 1 1/4 | 3/16 | |
| 47214 |
|
Inch | 3/8-16 | 3 | 5/8 | 1 1/4 | 3/16 | |
| 47215 |
|
Inch | 3/8-16 | 4 | 5/8 | 1 1/4 | 3/16 |
| Part Number | CAD | Unit | Thread Size | A (mm) | B (mm) | C (mm) | Hex Key Size | |
|---|---|---|---|---|---|---|---|---|
| 47259 |
|
Metric | M20x2.5 | 175 | 22 | 50 | 10 |
