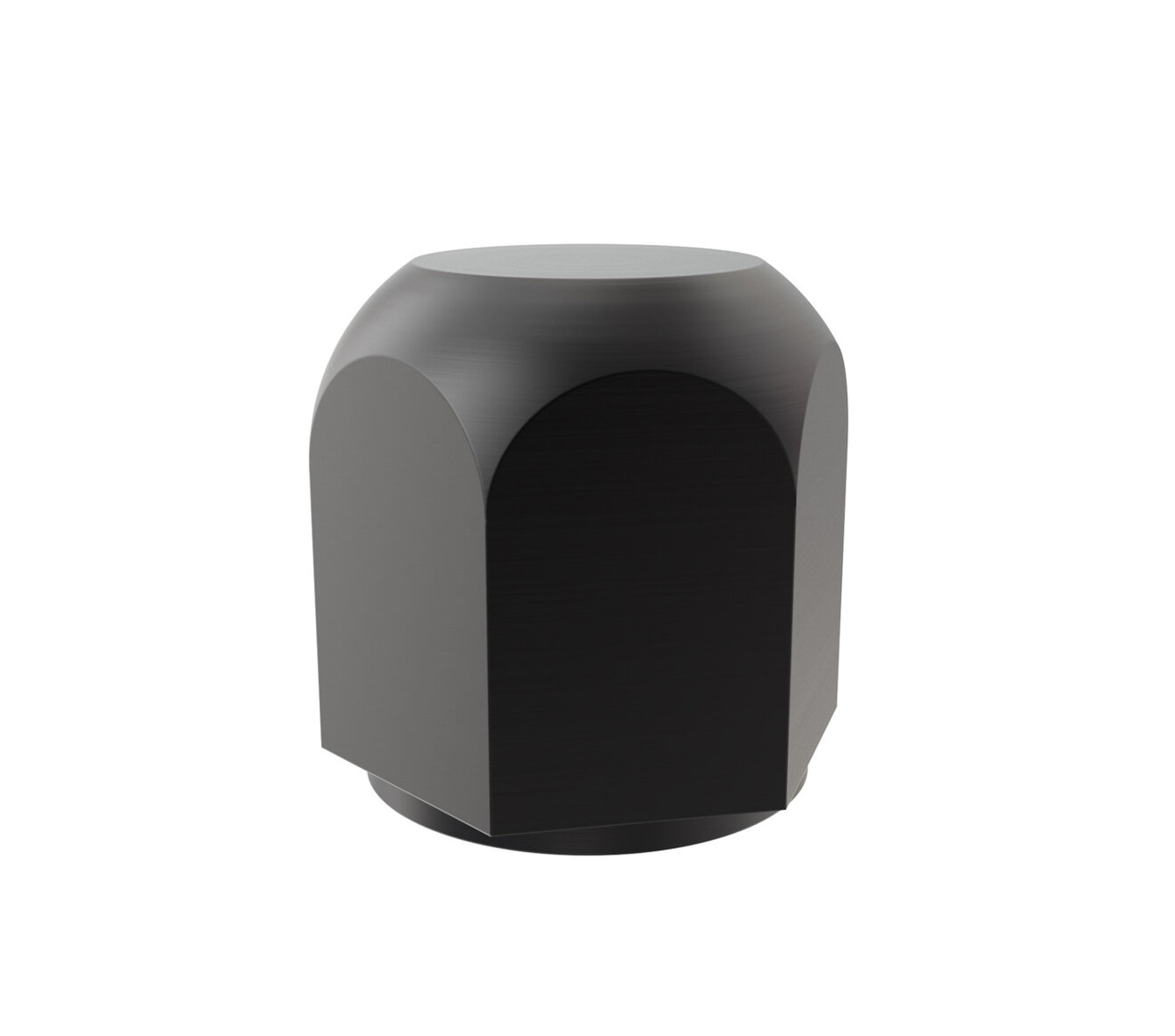

Acorn Nuts
Jergens Acorn Nuts are used to cover threaded ends to protect them from dirt, grit, or damage to the thread.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened
-
Thread: 2B-UNC
Documents
Acorn Nuts
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A | B (In) | C (In) | Weight 10 Pieces (lbs) |
|---|---|---|---|---|---|---|
| 10501 |
|
Inch | 5/16-18 | 5/8 | 5/8 | 0.44 |
| 10502 |
|
Inch | 3/8-16 | 3/4 | 3/4 | 0.78 |
| 10503 |
|
Inch | 1/2-13 | 15/16 | 7/8 | 1.25 |
| 10504 |
|
Inch | 5/8-11 | 1 3/16 | 1 1/16 | 2.35 |
