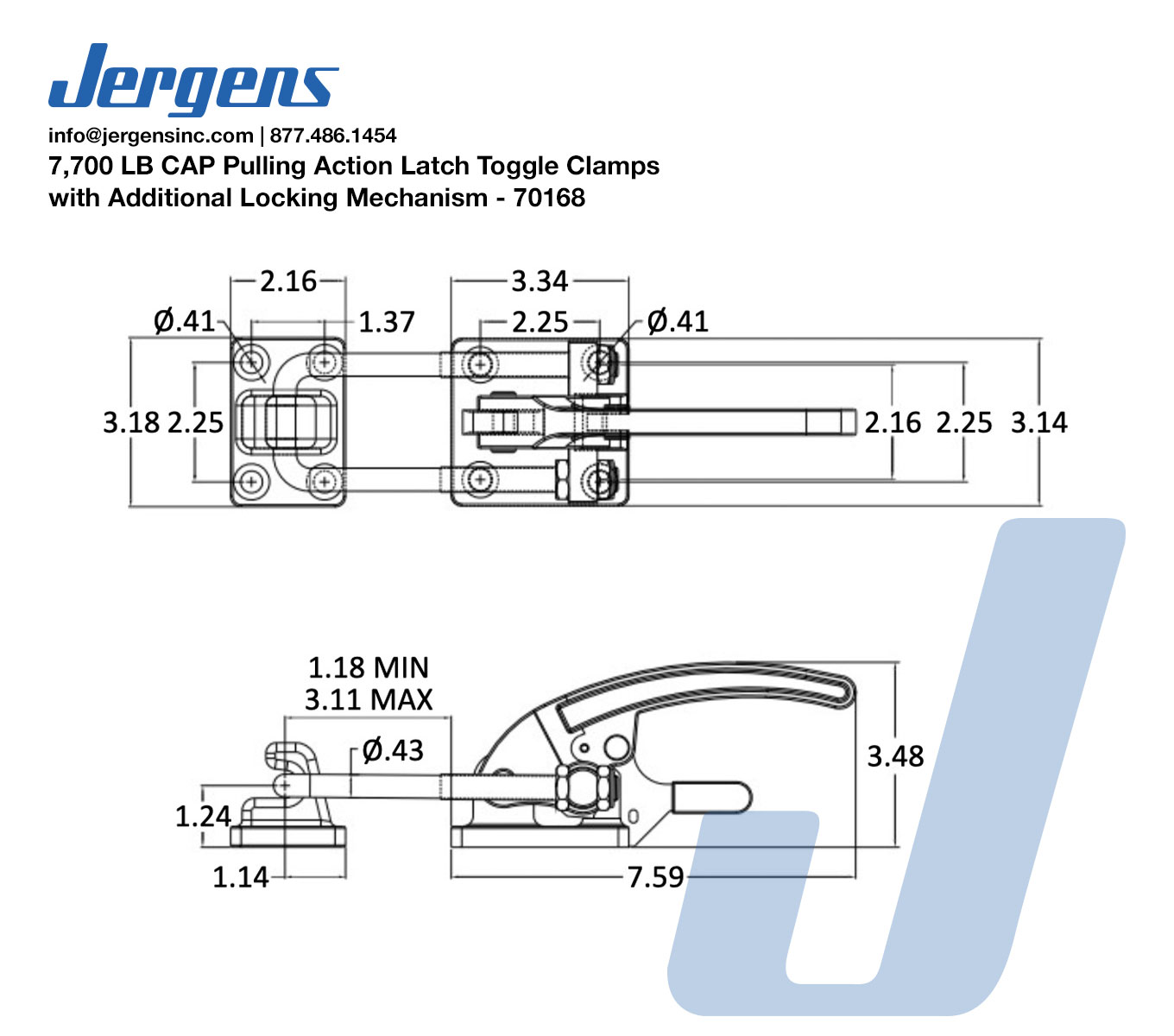

7,700 LB CAP Pulling Action Latch Toggle Clamps with Additional Locking Mechanism
Jergens Pull Action Latch Toggle Clamps are designed for sealing chambers, doors, mold closures, or other applications requiring closure mechanisms. The handle can be moved to place the clamping U-Bolt or hook around the opposing latch and then pulled down to reach the locked position. The threaded hook or U-Bolt type bars offer an adjustment feature.
Features, Benefits, & Product Specifications:
-
Body Material & Finish: Low Carbon Steel, Black ED
-
Holding capacity up to 7,700 lbs
-
Used for applications where a straight pulling action is required
- Additional locking mechanism ensures that the clamp remains locked in any condition
Note(s):
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Documents
Jergens True-Lok™ Toggle Clamps_Catalog
