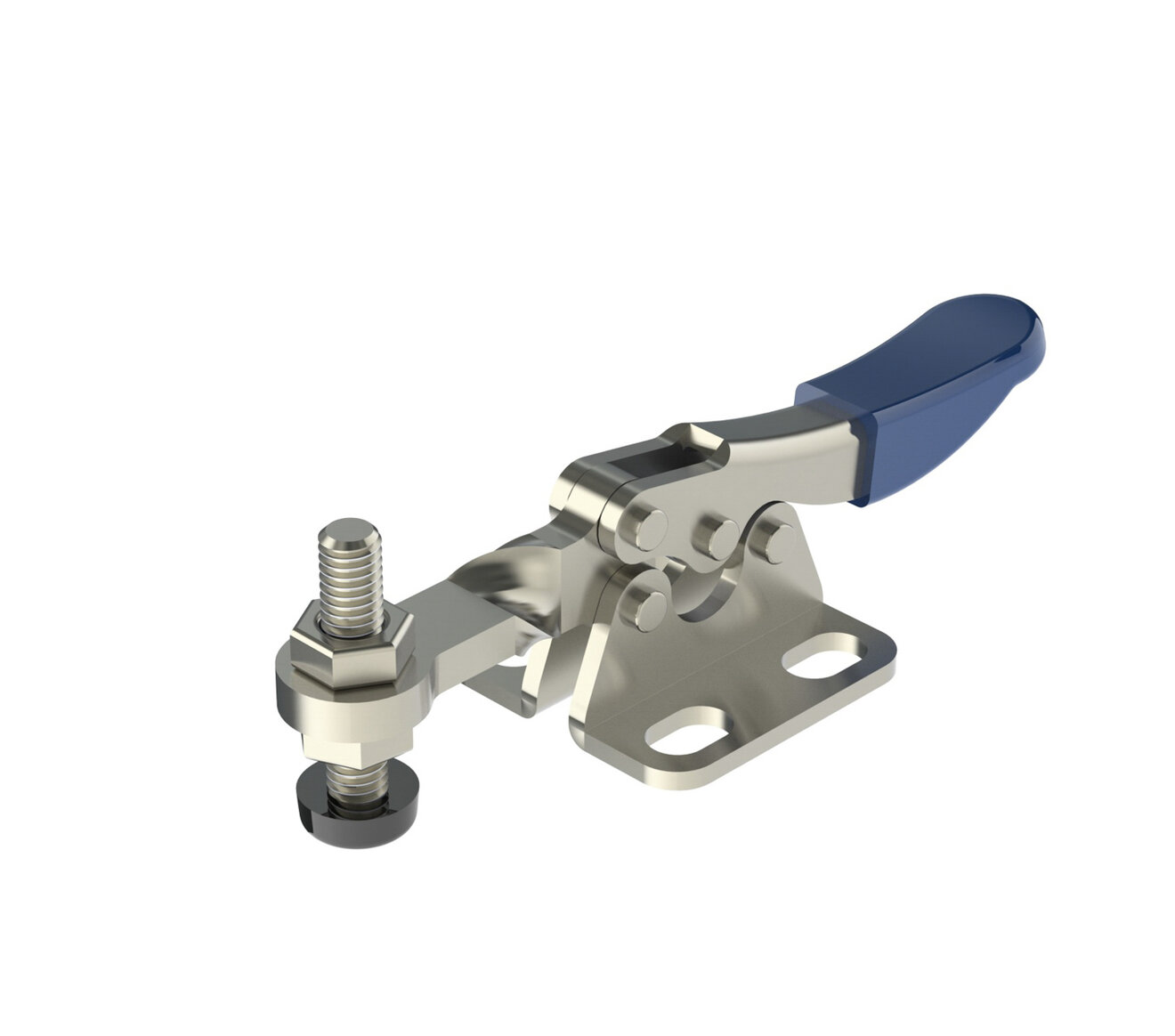

67 LB CAP Horizontal Toggle Clamp with Flanged Base & Solid Arm
Jergens Horizontal Hold Down Action Toggle Clamps hold the workpiece with a downward clamping action. Unlike the handle and the clamping bar of our vertical action toggle clamps, the parts of the horizontal clamps move in opposite directions.
Features, Benefits, & Product Specifications:
-
Body Materials & Finishes:
-
Low Carbon Steel, Zinc Plated
-
304 Stainless Steel
-
-
Handle: PVC Dipped
-
Holding capacity up to 67 lbs
- Handle features a low-height design and requires less overhead clearance
- Solid arm enables fixed spindle location
Note(s):
-
"Holding Capacity" measurement applies to the U-Bar position closest to the handle.
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

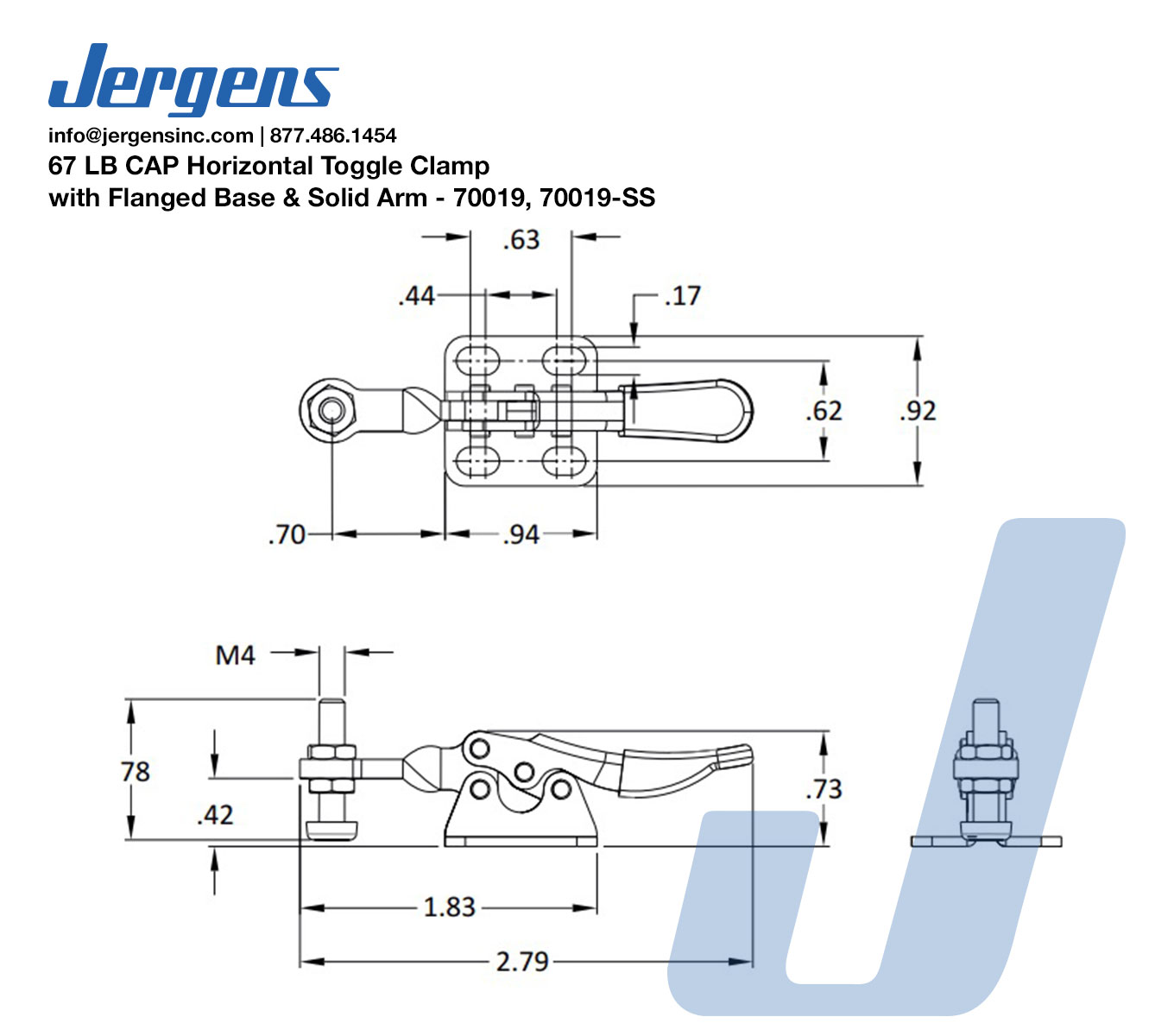

67 LB CAP Horizontal Toggle Clamp with Flanged Base & Solid Arm
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| 70019 |
|
Inch | Flanged | Solid | 60° | 85° | 67 | 0.07 |

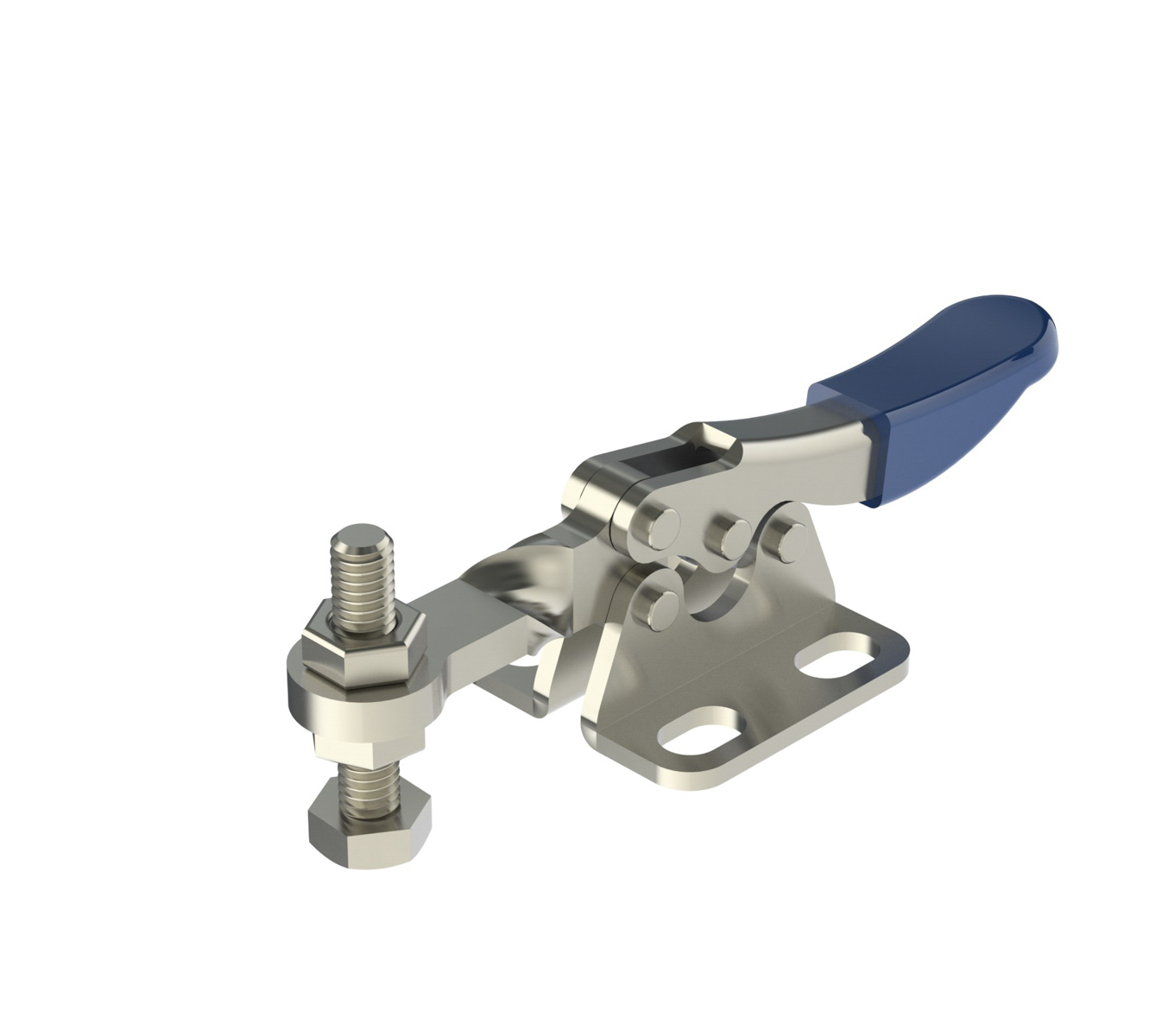

| 70019-SS | Inch | Flanged | Solid | 60° | 85° | 67 | 0.07 |
| Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (kN) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| 70019 |
|
Metric | Flanged | Solid | 60° | 85° | 0.30 | 0.03 |
| 70019-SS | Metric | Flanged | Solid | 60° | 85° | 0.30 | 0.03 |
